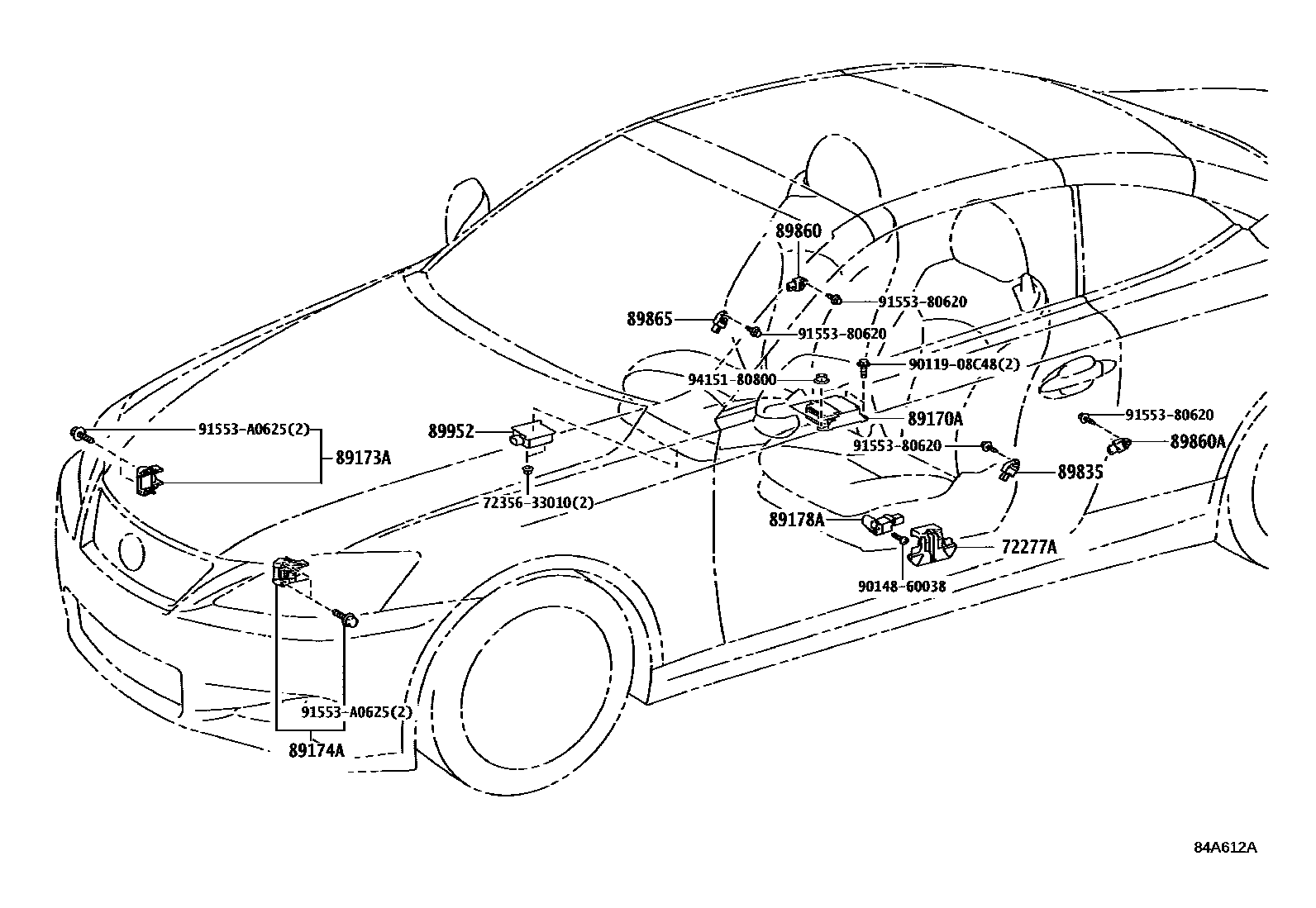

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGSE2#200904-201507

89170ACOMPUTER ASSY, AIRBAG

main89170-53210iGSE2#200904-201208

main89170-53490iGSE2#201208-201307

main89170-53560iGSE2#201308

main89170-53190iGSE20..6FC200904-201208

KOREA SPEC

main89170-53500iGSE20201208-201408

KOREA SPEC

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iGSE2#200904-201208

main89173-39455iGSE2#201208

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iGSE2#200904-201208

main89173-39455iGSE2#201208

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGSE2#200904-201507

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-60010iGSE2#200904-201208

main89831-60040iGSE2#201208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iGSE2#200904-201208

main89831-75010iGSE2#201208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iGSE2#200904-201208

main89831-75010iGSE2#201208

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-60010iGSE2#200904-201208

main89831-60040iGSE2#201208

89952COMPUTER, OCCUPANT DETECTION

main89952-0W120iGSE2#; GSE20..6FC200904-201107

KOREA SPEC

main89952-0W121iGSE2#; GSE20..6FC201108-201507

KOREA SPEC

7235633010NUT, SIDE SUPPORT, RH

main72356-33010

9011908C48

main90119-08C48

9014860038

main90148-60038

9155380620

main91553-80620

91553A0625

main91553-A0625

9415180800

main94151-80800

16 parts on this diagram · 1 diagram in section
