ABS & VSC

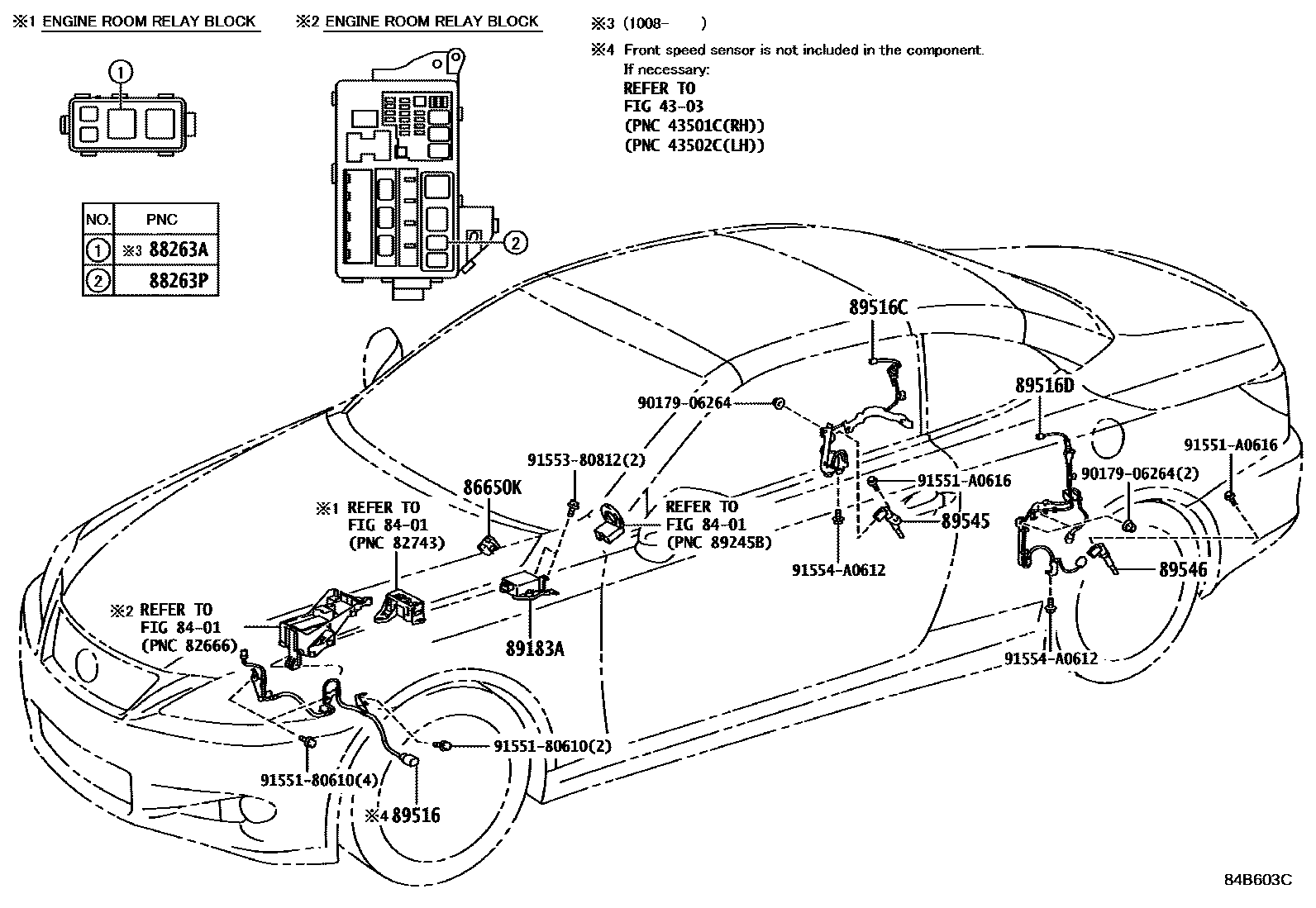

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-50010i200904-201008

88263ARELAY, SKID CONTROL

main88263-21010i201008

WINDSHIELD DEICER-WITH

88263PRELAY, STOP LAMP CONTROL

main90987-04004i200904-201507

89183ASENSOR, YAWRATE

main89180-53030i200904

89516WIRE, SKID CONTROL SENSOR

main89516-30020i200904-201203

RH

main89516-30030i200904

LH

main89516-30150i201204-201302

RH

main89516-53060i201303

RH

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-53010i200904

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-53050i200904

main89516-53020i200904-201008

KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LVELING) KOREA SPEC

main89516-53040i201008

HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)

89545SENSOR, SPEED, REAR RH

main89545-30070i200904-201507

89546SENSOR, SPEED, REAR LH

main89546-30070i200904-201507

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

15 parts on this diagram · 1 diagram in section
