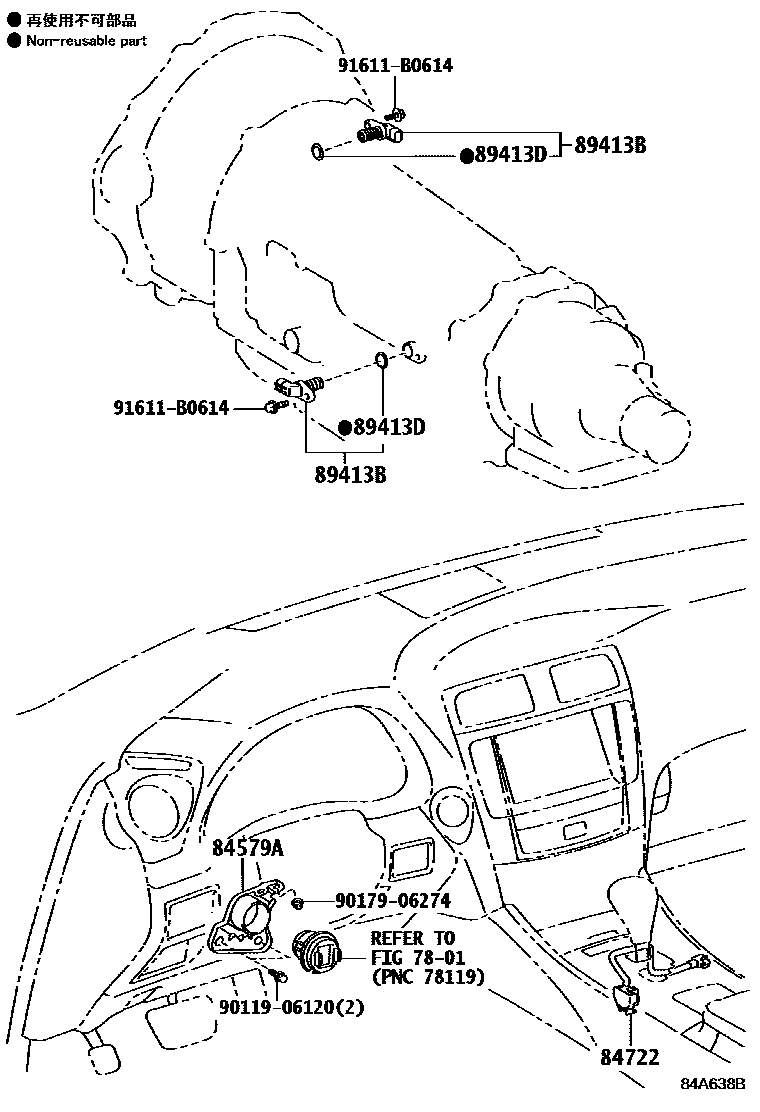

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

7801ACCELERATOR LINK

→ Go to FIG 78-01

84579ABRACKET, KICK DOWN SWITCH

main84579-30060iGSE2#200904-201507

84722SWITCH, TRANSMISSION CONTROL

main84722-20240iGSE2#..6FC200904-201507

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-0C010×2iGSE2#201307-201507

(L)

main89413-32010×2iGSE2#..6FC200904-201307

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iGSE2#..6FC200904

9011906120

main90119-06120

9017906274

main90179-06274

91611B0614

main91611-B0614

8 parts on this diagram · 1 diagram in section
