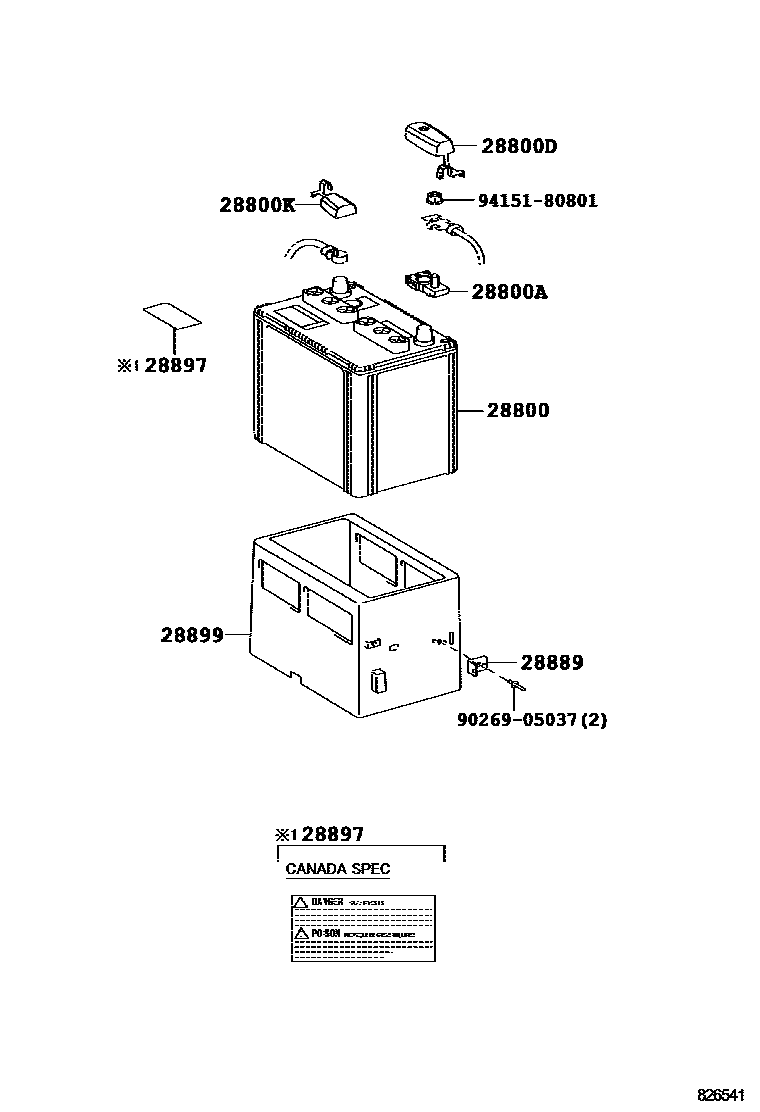

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38100i2GRFSE,4GRFSE..GSE2#200907-201507

80D26R

main28800-54231i2GRFSE,4GRFSE..GSE2#200904-200906

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i2GRFSE,4GRFSE..GSE2#200904

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i2GRFSE,4GRFSE..GSE2#200904

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRFSE,4GRFSE..GSE2#201208

main82821-50450i2GRFSE,4GRFSE..GSE2#200904-201208

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i2GRFSE,4GRFSE..GSE2#200904

28897PLATE, BATTERY CAUTION

main28897-31021i2GRFSE,4GRFSE..GSE2#200904

CANADA SPEC

28899INSULATOR, BATTERY

main28899-31030i2GRFSE,4GRFSE..GSE2#200904

9026905037

main90269-05037

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section
