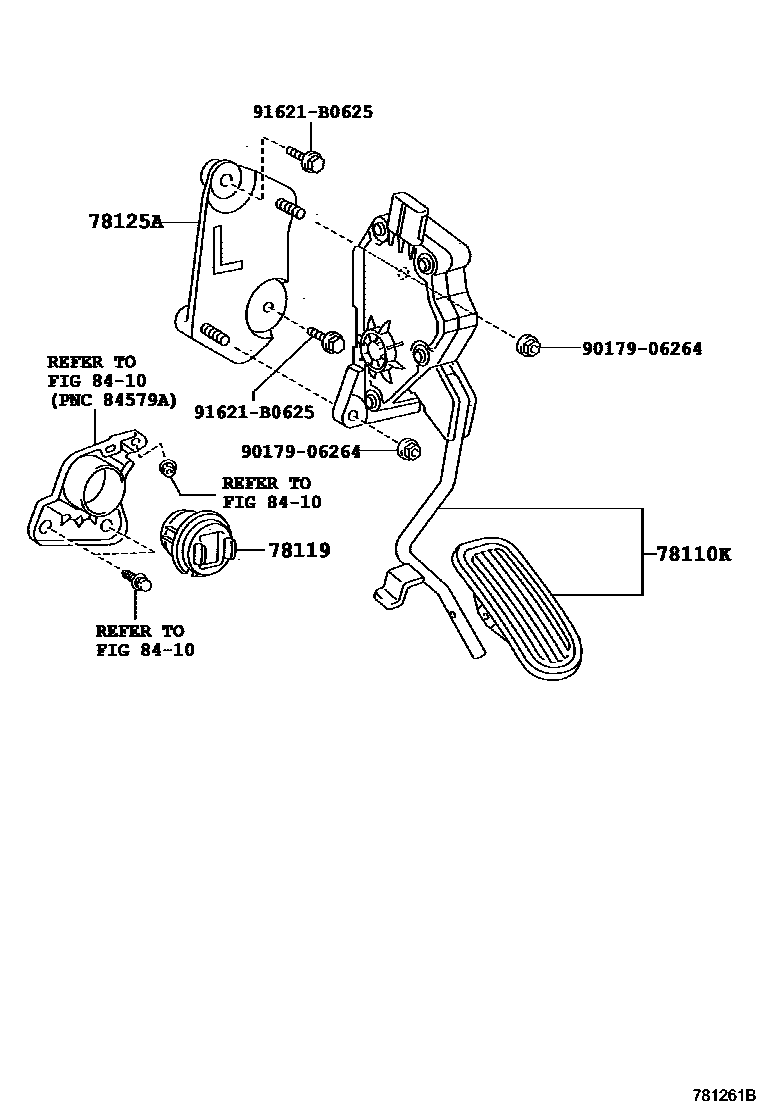

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-53140iGSE2#201408-201507

main78110-53031iGSE20..6FC201003-201008

KOREA SPEC

main78110-53041supersedes 78110-53031iGSE2#200904-201003

ACCELERATOR PEDAL-ALUMINUM TYPE

main78110-53110supersedes 78110-53120iGSE2#201003-201408

ACCELERATOR PEDAL-ALUMINUM TYPE

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iGSE2#200904-201507

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-53010iGSE2#200904

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9017906264

main90179-06264

91621B0625

main91621-B0625

6 parts on this diagram · 2 diagrams in section
