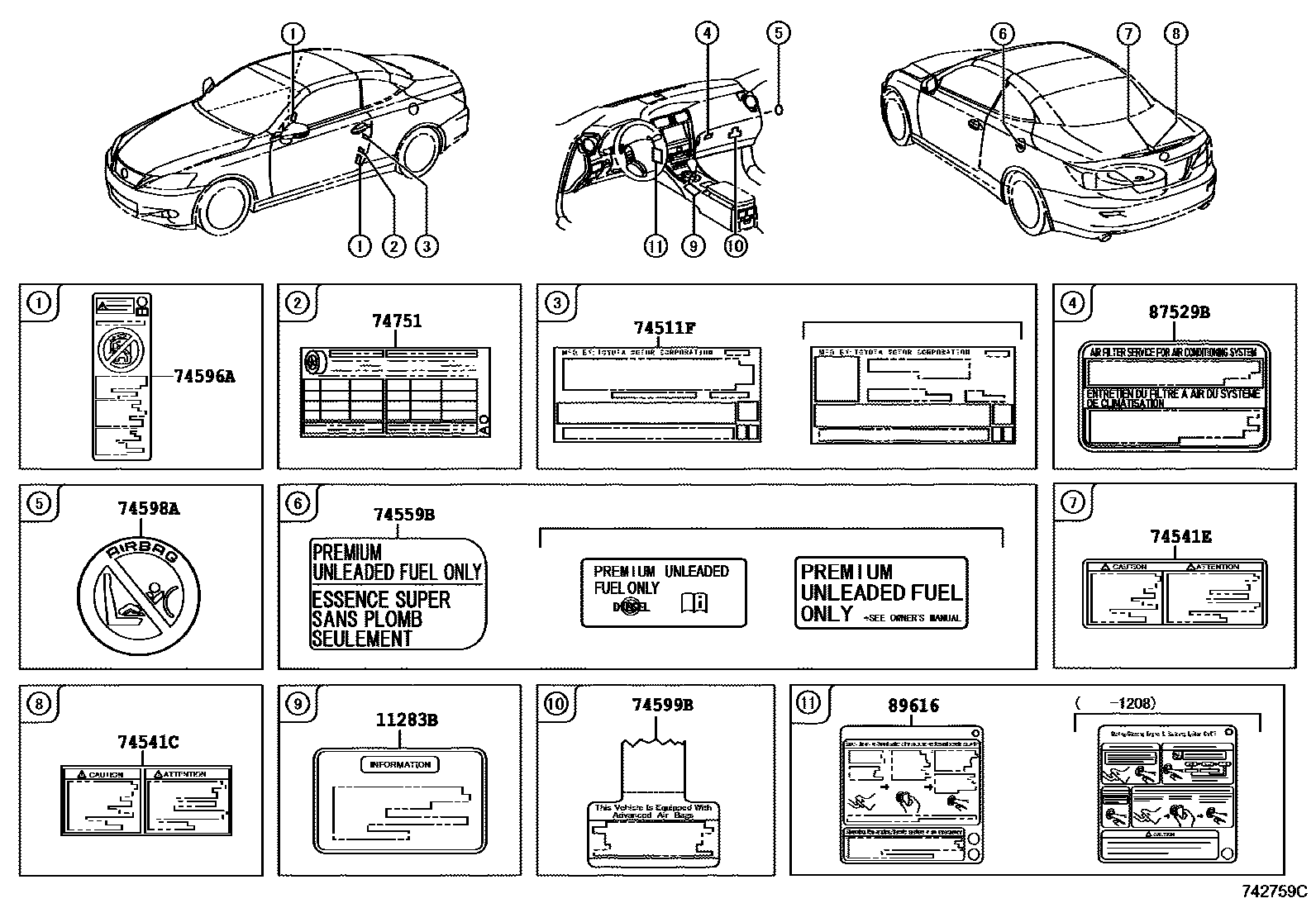

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11283BLABEL, LEAK DETECTION PUMP INFORMATION

main11294-28010i2GRFSE,4GRFSE..GSE2#200904-200911

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74514-33020supersedes 74514-33010iGSE2#200904-201507

*111,CANADA SPEC

74541CPLATE, RUNFLAT TIRE CAUTION

main42666-53010iGSE2#200904

TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-14060iGSE2#200904

74559BLABEL, FUEL INFORMATION

main74559-60030iGSE2#201410

main74559-20110supersedes 74559-50010iGSE2#200904

CANADA SPEC

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53010×2iGSE2#200904-201111

main74596-53011×2iGSE2#201112

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-20010iGSE20..6FC200904-201408

KOREA SPEC

74599BLABEL, DRIVER & PASSENGER AIRBAG INFORMATION

74751LABEL, TIRE PRESSURE INFORMATION

main42661-53490supersedes 42661-53470iGSE2#200904

TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM

main42661-53500supersedes 42661-53470iGSE2#200904

TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON

87529BLABEL, A/C FILTER INFORMATION

main87529-50010iGSE2#200904-201208

89616LABEL, PUSH START INFORMATION

main89616-30031iGSE20..6FC200904-201208

KOREA SPEC

main89616-48130iGSE2#201208

KOREA SPEC

main89616-53010iGSE20..6F200904-201208

11 parts on this diagram · 2 diagrams in section
