EPC Data

FRONT SEAT & SEAT TRACK

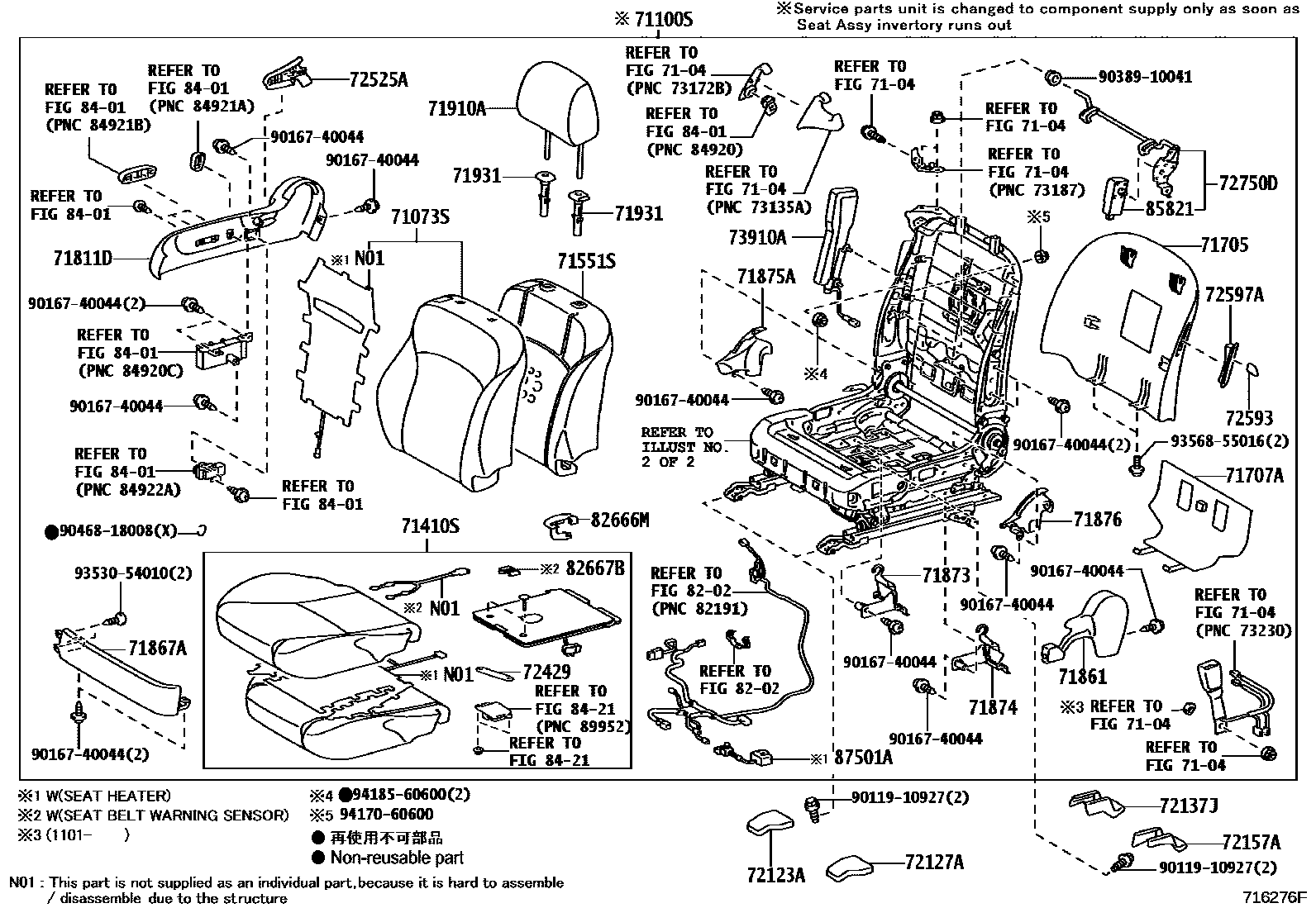

Parts diagram
7104
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-53600-A0i200904-201008
MELLOW WHITE,TRIM0#
sub71073-53A10
main71073-53600-C0i200904-201008
BLACK,TRIM2#
sub71073-53A10
main71073-53520-A0i200904-201008
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71073-53700
main71073-53520-C0i200904-201008
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71073-53700
main71073-53530-A1i200904-201008
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71073-53680
main71073-53530-C1i200904-201008
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71073-53680
main71073-53560-J0i200904-201008
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE/BLUE,TRIM0#
main71073-53681-A0supersedes 71073-53A11-A0i201008-201108
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main71073-53681-A1i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main71073-53681-B0i201008-201108
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LT. GRAY,TRIM1#
main71073-53681-B2i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#
main71073-53681-C0i201008-201108
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
main71073-53681-C1i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
main71073-53681-D1i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
main71073-53681-E0i201008-201108
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
main71073-53681-E1i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
main71073-53682-A2i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main71073-53682-B3i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#
main71073-53682-C3supersedes 71073-53A12-C4i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
main71073-53682-D2i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
main71073-53682-E2i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
main71073-53691-C0i201008-201108
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#
main71073-53701-A0supersedes 71073-53A11-A0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
main71073-53701-A1supersedes 71073-53A11-A1i201108-201208
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
main71073-53701-C0supersedes 71073-53A11-C0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
main71073-53701-C2supersedes 71073-53A11-C2i201108-201208
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
main71073-53702-A2supersedes 71073-53A12-A2i201208-201507
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
main71073-53702-C4supersedes 71073-53A12-C4i201208-201507
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
main71073-53A30-C0i201002-201003
US BLUE STITCH SPECIAL EDITION,BLACK/BLUE NO.125,TRIM21
main71073-53E71-C1supersedes 71073-53A12-C4i201208-201408
KOREA SPEC&F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO DOWN ONLY&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK(F-SPORT),TRIM2#
main71073-53E71-D1i201308-201408
KOREA SPEC&F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO DOWN ONLY&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE,TRIM3#
71100SSEAT ASSY, FRONT RH
main71010-53540-C0i201102-201103
USA RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM21
sub71010-53541
main71010-53580-A0supersedes 71010-53680-A0i201108-201208
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71010-53582
main71010-53580-C0supersedes 71010-53680-C0i201108-201208
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71010-53582
main71010-53581-A1supersedes 71010-53681-A1i201208-201507
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71010-53D90
main71010-53581-C1supersedes 71010-53681-C1i201208-201507
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71010-53D90
main71010-53590-A0supersedes 71010-53680-A0i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71010-53592
main71010-53590-B0i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#
sub71010-53592
main71010-53590-C0supersedes 71010-53680-C0i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71010-53592
main71010-53590-D0i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71010-53592
main71010-53590-E0i201108-201208
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71010-53592
main71010-53591-A1supersedes 71010-53681-A1i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71010-53J40
main71010-53591-B1i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#
sub71010-53J40
main71010-53591-C1supersedes 71010-53681-C1i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71010-53J40
main71010-53591-D1i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71010-53J40
main71010-53591-E1i201208-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71010-53J40
main71010-53600-A0i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71010-53602
main71010-53600-B0i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#
sub71010-53602
main71010-53600-C0i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71010-53602
main71010-53600-D0i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71010-53602
main71010-53600-E0i201108-201208
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71010-53602
main71010-53601-A1i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71010-53J60
main71010-53601-B1i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#
sub71010-53J60
main71010-53601-C1i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71010-53J60
main71010-53601-D1i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71010-53J60
main71010-53601-E1i201208-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71010-53J60
main71010-53B71-C1supersedes 71010-53681-C1i201208-201507
F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO UP/DOWN&FRONT SEAT-SMOOTH LEATHER(F-SPORT),BLACK(F-SPORT),TRIM2#
sub71010-53B72
main71010-53B71-D1i201308-201507
F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO UP/DOWN&FRONT SEAT-SMOOTH LEATHER(F-SPORT),DK.ROSE(F-SPORT),TRIM3#
sub71010-53B72
main71010-53B91-C1i201208-201408
KOREA SPEC&F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO DOWN ONLY&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK(F-SPORT),TRIM2#
sub71010-53B92
main71010-53B91-D1i201308-201408
KOREA SPEC&F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO DOWN ONLY&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),DK.ROSE(F-SPORT),TRIM3#
sub71010-53B92
main71100-53J30-A6supersedes 71100-53M20-A3i200904-200908
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71100-53J31
main71100-53J30-A7supersedes 71100-53M20-A4i200908-201008
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71100-53J31
main71100-53J30-C6supersedes 71100-53M20-C3i200904-200908
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71100-53J31
main71100-53J30-C7supersedes 71100-53M20-C4i200908-201008
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71100-53J31
main71100-53J40-02supersedes 71100-53M20-A3i200904-200908
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71100-53J41
main71100-53J40-03supersedes 71100-53M20-A4i200908-201008
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71100-53J41
main71100-53J40-C8supersedes 71100-53M20-C3i200904-200908
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71100-53J41
main71100-53J40-C9supersedes 71100-53M20-C4i200908-201008
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71100-53J41
main71100-53J50-20i200904-200908
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71100-53J51
main71100-53J50-21i200908-201008
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71100-53J51
main71100-53J50-G1i200904-200908
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71100-53J51
main71100-53J50-G3i200908-201008
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71100-53J51
main71100-53K80-A6supersedes 71100-53M20-A3i200904-200908
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
sub71100-53K81
main71100-53K80-A7supersedes 71100-53M20-A4i200908-201008
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELOW WHITE,TRIM0#
sub71100-53K81
main71100-53K90-A6i200904-200908
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
sub71100-53K91
main71100-53K90-A7i200908-201008
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0#
sub71100-53K91
main71100-53V41-A0supersedes 71100-53W71-A0i201008-201107
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71100-53V42
main71100-53V41-C0supersedes 71100-53W71-C0i201008-201107
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71100-53V42
main71100-53V51-A0supersedes 71100-53W71-A0i201008-201107
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71100-53V52
main71100-53V51-B0i201008-201107
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,LT. GRAY,TRIM1#
sub71100-53V52
main71100-53V51-C0supersedes 71100-53W71-C0i201008-201107
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71100-53V52
main71100-53V51-E0i201008-201107
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71100-53V52
main71100-53V61-A0i201008-201107
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71100-53V62
main71100-53V61-B0i201008-201107
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#
sub71100-53V62
main71100-53V61-C0i201008-201107
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71100-53V62
main71100-53V61-E0i201008-201107
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71100-53V62
main71100-53W31-D0i201008-201108
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#
sub71100-53W32
main71100-53W41-D0i201008-201108
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/RED,TRIM3#
sub71100-53W42
main71100-53X00-C0i201002-201003
US BLUE STITCH SPECIAL EDITION,BLACK,TRIM21
sub71100-53X01
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71002-53250-A3supersedes 71003-53G40-A0i200904-201007
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
main71002-53250-C3supersedes 71003-53G40-C0i200904-201007
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
main71002-53251-A0supersedes 71002-53591-A0i201008-201201
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
main71002-53251-C0supersedes 71002-53591-C0i201008-201201
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
main71002-53260-01i200904-201007
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE& WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM00,01,06
sub71002-53262
main71002-53260-02i200904-201007
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE& WHITE TWO-TONE COLOR,MELLOW WHITE/BLUE,TRIM04,05,08
sub71002-53262
main71002-53260-C5supersedes 71003-53G40-C0i200904-201007
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71002-53262
main71002-53261-A0supersedes 71002-53591-A0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,MELLOW WHITE,TRIM0#
sub71003-53M40
main71002-53261-B0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,LT.GRAY,TRIM1#
sub71003-53M40
main71002-53261-C0supersedes 71002-53591-C0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71003-53M40
main71002-53261-D0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK/RED,TRIM3#
sub71003-53M40
main71002-53261-D1i201108-201201
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71003-53M40
main71002-53261-E0i201008-201108
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,SADDLE TAN,TRIM4#
sub71003-53M40
main71002-53S30-C0i201002-201003
US BLUE STITCH SPECIAL EDITION,BLACK,TRIM21
main71003-53G20-A0supersedes 71003-53G40-A0i201202-201507
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,MELLOW WHITE,TRIM0#
sub71003-53G21
main71003-53G20-C0supersedes 71003-53G40-C0i201202-201507
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#
sub71003-53G21
main71003-53G30-A0supersedes 71003-53G40-A0i201202-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71003-53G31
main71003-53G30-B0i201202-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,LT.GRAY,TRIM1#
sub71003-53G31
main71003-53G30-C0supersedes 71003-53G40-C0i201202-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71003-53G31
main71003-53G30-D0i201202-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71003-53G31
main71003-53G30-E0i201202-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71003-53G31
main71003-53J00-C0i201208-201507
F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO UP/DOWN&FRONT SEAT-SMOOTH LEATHER(F-SPORT),BLACK(F-SPORT),TRIM2#
sub71003-53J01
main71003-53J00-D1i201308-201507
F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO UP/DOWN&FRONT SEAT-SMOOTH LEATHER(F-SPORT),DK.ROSE(F-SPORT),TRIM3#
sub71003-53J01
main71501-53200i200904-201008
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-53170supersedes 71551-53160i200904
POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-53050-A0i200904-201507
MELLOW WHITE,TRIM0#
main71705-53050-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-53020-A0i200904-201301
MELLOW WHITE,TRIM0#
main71707-53020-C0supersedes 71707-53020-C0i200904-201301
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM1#,2#,3#,4#
main71707-53021-A0i201302-201507
MELLOW WHITE,TRIM0#
sub71707-53022
main71707-53021-C0i201302-201507
BLACK,TRIM2#
sub71707-53022
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-53050-A0i200904-201507
MELLOW WHITE,TRIM0#
main71811-53050-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-53070-A0i200904-201507
MELLOW WHITE,TRIM0#
main71861-53070-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-53011-A1i200904-201507
MELLOW WHITE,TRIM0#
main71867-53011-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-30060i200904
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-30070i200904
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-53060-A0i200904-201507
MELLOW WHITE,TRIM0#
main71875-53060-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-53070-A0i200904-201507
MELLOW WHITE,TRIM0#
main71875-53070-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
71910AHEADREST ASSY, FRONT SEAT
main71910-53210-A0×2i200904-201007
MELLOW WHITE,TRIM0#
main71910-53211-C1×2i201008-201107
BLACK,TRIM2#
main71910-53220-A0×2i200904-201007
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM00,01,06
main71910-53220-C0×2supersedes 71910-53210-C0i200904-201007
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2#
main71910-53220-J0×2i200904-201007
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,BLUE,TRIM04,05,08
main71910-53221-A3×2supersedes 71910-53211-A1i201008-201107
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
main71910-53221-B0×2i201008-201107
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,LT. GRAY,TRIM1#
main71910-53221-C2×2i201008-201108
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM2#,3#
main71910-53221-E0×2i201008-201107
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
main71910-53360-C0×2i201002-201003
US BLUE STITCH SPECIAL EDITION,BLACK/BLUE NO.125,TRIM21
main71910-53440-D0×2i201308-201507
F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO UP/DOWN&FRONT SEAT-SMOOTH LEATHER(F-SPORT),DK.ROSE,TRIM3#
sub71910-53650
main71910-53450-A0×2supersedes 71910-53440-A0i201108-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0#
sub71910-53660
main71910-53450-B0×2i201108-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,LIGHT GRAY,TRIM1#
sub71910-53660
main71910-53450-C0×2supersedes 71910-53440-C0i201108-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2#
sub71910-53660
main71910-53450-D0×2i201108-201507
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER,RED,TRIM3#
sub71910-53660
main71910-53450-E0×2i201108-201408
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER,SADDLE TAN,TRIM4#
sub71910-53660
71931SUPPORT, FRONT SEAT HEADREST
main71930-52030-C0×2i200904-201507
W(LOCK)&W(BUTTON),BLACK,TRIM04,05,08,2#,3#,4#
main71931-42020-C0×2i200904-201507
W(LOCK)&W/O(BUTTON),BLACK,TRIM04,05,08,2#,3#,4#
main71930-52030-B5×2i201008-201108
W(LOCK)&W(BUTTON),KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,LT.GRAY,TRIM1#
main71931-42020-B2×2i201008-201108
W(LOCK)&W/O(BUTTON),LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,LT.GRAY,TRIM1#
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-53040-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-53040-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-53040-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-53060-C0i200904-201507
BLACK,TRIM0#,1#,2#,3#,4#
72429PLATE, FRONT SEAT ADJUSTER, RH
main72439-33010i200904
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-53030-A0i200904-201507
MELLOW WHITE,TRIM0#
main72525-53030-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
72593KNOB, RECLINING REMOTE CONTROL LEVER
main72593-53010-A0×2i200904-201507
MELLOW WHITE,TRIM0#
main72593-53010-C0×2i200904-201507
BLACK,TRIM1#,2#,3#,4#
72597ABEZEL, RECLINING REMOTE CONTROL LEVER, RH
main72597-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main72597-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-53030i200904
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-53020i200904
8202
82666MHOLDER, CONNECTOR
main82666-33400i200904
main82666-33270i200904-201008
KOREA SPEC&LUXURY PACKAGE&POWER WINDOW-W(WOOD BASE) & PASSENGER=AUTO DOWN ONLY&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR
82667BHOLDER, CONNECTOR
main82666-53110i200904-201008
LUXURY PACKAGE&POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR
8401
8421
85821MOTOR ASSY, POWER SEAT
main85820-60170×2i200904
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-48020i201501-201507
F SPORT&POWER WINDOW-W(*308 SWITCH BASE)&*PSD=AUTO UP/DOWN&FRONT SEAT-SMOOTH LEATHER(F-SPORT)
9011910927
main90119-10927
9016740044
main90167-40044
9038910041
main90389-10041
9046818008
main90468-18008
9353054010
main93530-54010
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

41 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
