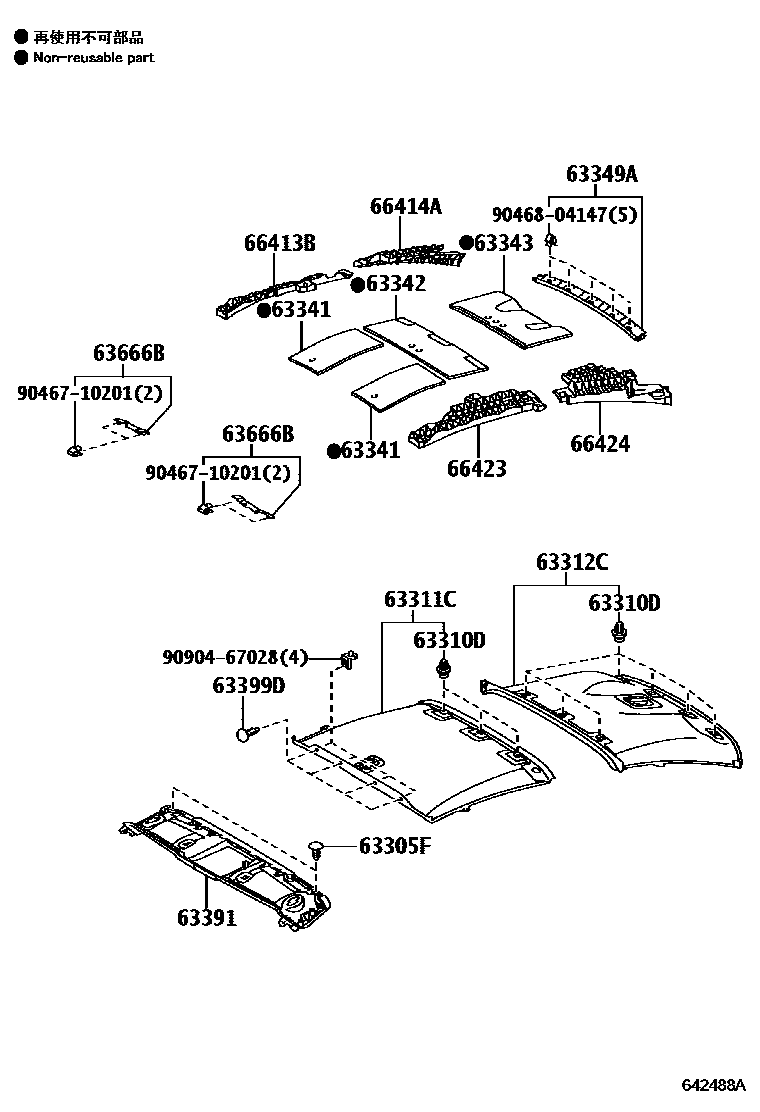

ROOF HEADLINING & SILENCER PAD

63305FCLIP(FOR ROOF HEADLINING TRIM)

main90467-05161-C0×2iGSE2#200904-201507

BLACK

63310DCLIP, ROOF HEADLINING

main90467-10161×10iGSE2#200904

63311CHEADLINING, ROOF

main63311-53230-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main63311-53230-B0iGSE2#201208-201507

LT.GRAY,TRIM1#,20,21,22,3#,4#

main63311-53230-C1iGSE2#201208-201507

BLACK,TRIM23,39

63312CHEADLINING, ROOF, REAR

main63312-53130-A0iGSE2#200904-201311

MELLOW WHITE,TRIM0#

main63312-53130-B0iGSE2#200904-201208

LT.GRAY,TRIM1#,2#,3#,4#

main63312-53130-C1iGSE2#201208-201311

BLACK,TRIM23,39

main63312-53131-A0iGSE2#201311-201507

MELLOW WHITE,TRIM0#

main63312-53131-B0iGSE2#201311-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main63312-53131-C1iGSE2#201311-201507

BLACK,TRIM23,39

63341PAD, ROOF SILENCER, NO.1

main63341-53040×2iGSE2#200904

63342PAD, ROOF SILENCER, NO.2

main63342-53030iGSE2#200904

63343PAD, ROOF SILENCER, NO.3

main63343-53030iGSE2#200904

63349AGARNISH, ROOF HEADLINING, REAR

main63349-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

main63349-53010-B0iGSE2#201208-201306

LT.GRAY,TRIM1#,20,21,22,3#,4#

main63349-53010-C0iGSE2#201208-201306

BLACK,TRIM23,39

main63349-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main63349-53011-B0iGSE2#201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main63349-53011-C0iGSE2#201307-201507

BLACK,TRIM23,39

63391TRIM, ROOF HEADLINING, FRONT

main63391-53010-A0iGSE2#200904-201306

MELLOW WHITE,TRIM0#

main63391-53010-B0iGSE2#200904-201208

LT.GRAY,TRIM1#,2#,3#,4#

main63391-53010-C0iGSE2#201208-201306

BLACK,TRIM23,39

main63391-53011-A0iGSE2#201307-201507

MELLOW WHITE,TRIM0#

main63391-53011-B0iGSE2#201307-201507

LT.GRAY,TRIM1#,20,21,22,36,37,38,4#

main63391-53011-C0iGSE2#201307-201507

BLACK,TRIM23,39

63399DCLIP, ROOF HEADLINING

main63399-26050-A0×4iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main63399-26050-B0×4iGSE2#200904-201208

LT.GRAY,TRIM1#,2#,3#,4#

main63399-26050-C0×4iGSE2#201208-201507

BLACK,TRIM23,39

63666BPROTECTER, ROOF, FRONT

main63271-53010-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#,RH

main63271-53010-B0iGSE2#200904-201208

LT.GRAY,TRIM1#,2#,3#,4#,RH

main63271-53010-C0iGSE2#201208-201507

BLACK,TRIM23,39,RH

main63272-53010-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#,LH

main63272-53010-B0iGSE2#200904-201208

LT.GRAY,TRIM1#,2#,3#,4#,LH

main63272-53010-C0iGSE2#201208-201507

BLACK,TRIM23,39,LH

66413BSPACER, SIDE RAIL, FRONT RH

main66413-53050iGSE2#200904

66414ASPACER, SIDE RAIL, REAR RH

main66414-53050iGSE2#200904-201311

main66414-53051iGSE2#201311

66423SPACER, SIDE RAIL, FRONT LH

main66423-53050iGSE2#200904

66424SPACER, SIDE RAIL, REAR LH

main66424-53050iGSE2#200904

9046710201

main90467-10201

9046804147

main90468-04147

9090467028

main90904-67028

18 parts on this diagram · 1 diagram in section
