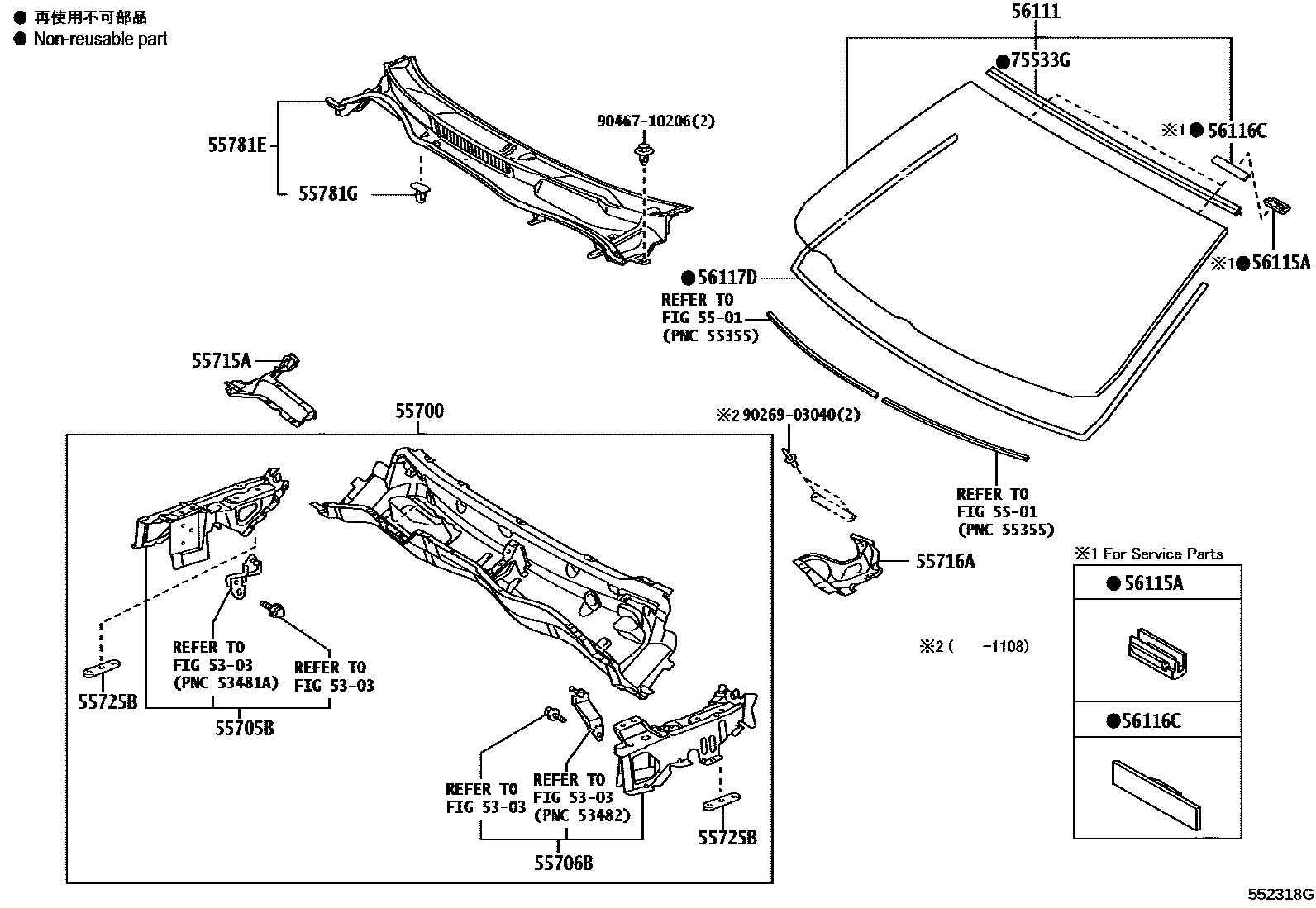

COWL PANEL & WINDSHIELD GLASS

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55700PANEL ASSY, FRONT

main55700-53904iGSE2#200904-201108

main55700-53906iGSE2#201108

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53010iGSE2#200904-201507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53010iGSE2#200904

55715ABRACE, COWL TOP TO APRON, RH

main55715-53040iGSE2#200904

55716ABRACE, COWL TOP TO APRON, LH

main55716-53040iGSE2#200904

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iGSE2#200904

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53060iGSE2#200904-200908

main55708-53061iGSE2#200909

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×7iGSE2#200904

56111GLASS, WINDSHIELD

main56101-53250supersedes 56101-53240iGSE2#200904

*LAM,T=4.76,GREEN,LUXURY PACKAGE

main56101-53260iGSE2#201008

*EHL,T=4.76,GREEN,WINDSHIELD DEICER-WITH

main56101-53270iGSE2#201008

*EHL,T=4.76,GREEN,LUXURY PACKAGE&WINDSHIELD DEICER-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110×2iGSE2#200904

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iGSE2#200904

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010iGSE2#200904

L=2665; L=2665,LUXURY PACKAGE

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53040iGSE2#200904

9026903040

main90269-03040

9046710206

main90467-10206

17 parts on this diagram · 1 diagram in section
