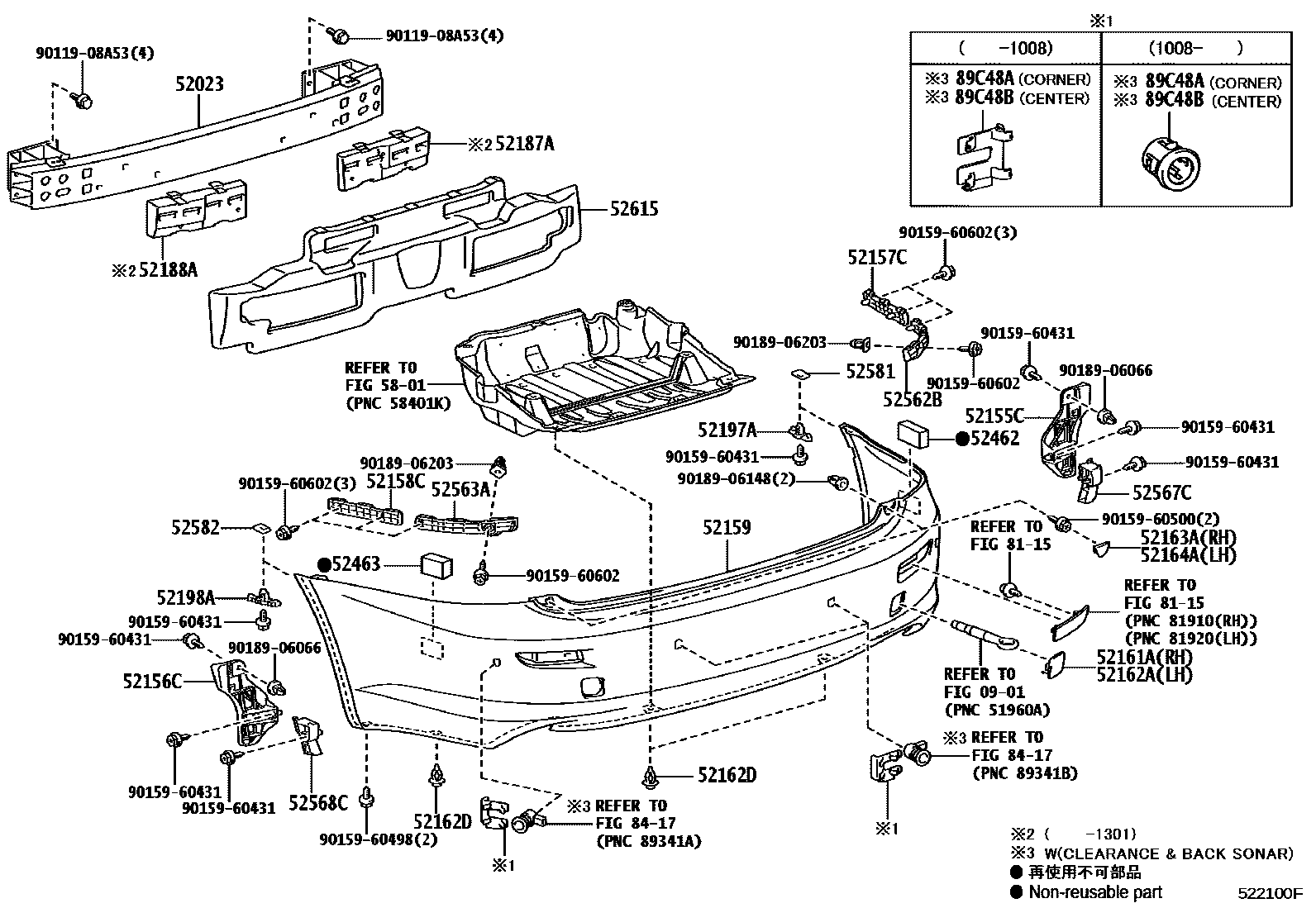

REAR BUMPER & BUMPER STAY
0901STANDARD TOOL
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
52161APIECE, REAR BUMPER, RH
52162APIECE, REAR BUMPER, LH
52162DPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52567CRETAINER, REAR BUMPER LOWER SIDE, RH
52568CRETAINER, REAR BUMPER LOWER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52615ABSORBER, REAR BUMPER ENERGY
5801FLOOR PAN & LOWER BACK PANEL
8115REFLEX REFLECTOR
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH,LAPIS LAZULI MC.,8V3
CLEARANCE & BACK SONAR-WITH,CATTLEYA M.M.,9AL
9011908A53
main90119-08A53
9015960431
main90159-60431
9015960498
main90159-60498
9015960500
main90159-60500
9015960602
main90159-60602
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203
38 parts on this diagram · 1 diagram in section
