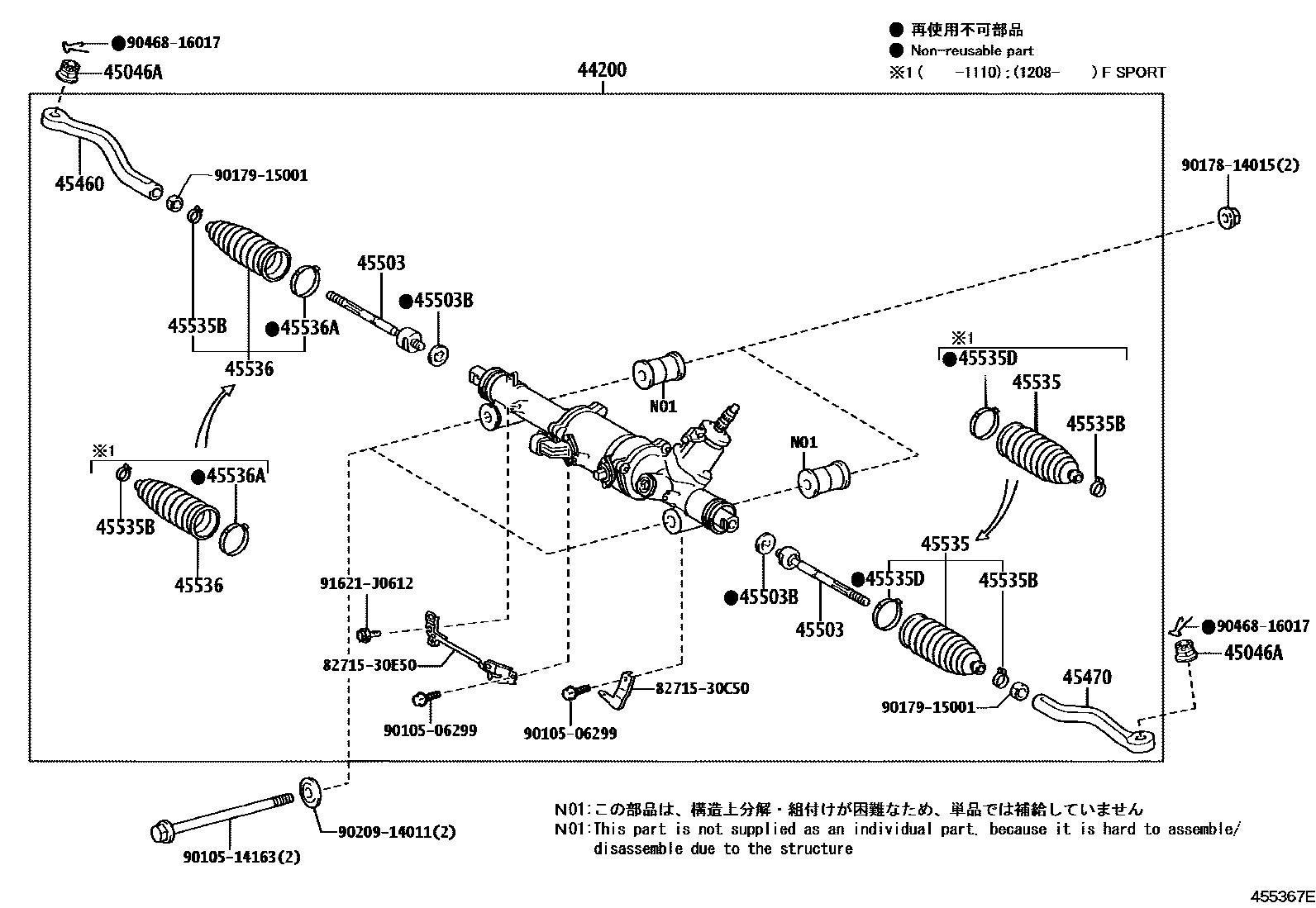

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-30470iGSE2#200904-201109

main44200-30471iGSE2#201206

main44200-30A40iGSE2#201110-201206

main44200-53131iGSE2#201208

F SPORT

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGSE2#200904

45460ROD ASSY, TIE, RH

main45463-30130iGSE2#200904

45470ROD ASSY, TIE, LH

main45464-30060iGSE2#200904

45503END SUB-ASSY, STEERING RACK

main45503-30070×2iGSE2#200904

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2iGSE2#200904

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-30030iGSE2#200904-201110

main45535-59045iGSE2#201110-201312

main45535-59065iGSE2#201401-201507

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iGSE2#200904

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iGSE20..6F200904-201208

45536BOOT, STEERING RACK, NO.2

main45535-30030iGSE2#200904-201110

main45535-59045iGSE2#201110-201312

main45535-59065iGSE2#201401-201507

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iGSE20..6F200904-201208

8271530C50BRACKET,WIRING HARNESS CLAMP

main82715-30C50

8271530E50BRACKET,WIRING HARNESS CLAMP

main82715-30E50

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

91621J0612

main91621-J0612

20 parts on this diagram · 1 diagram in section
