MANIFOLD

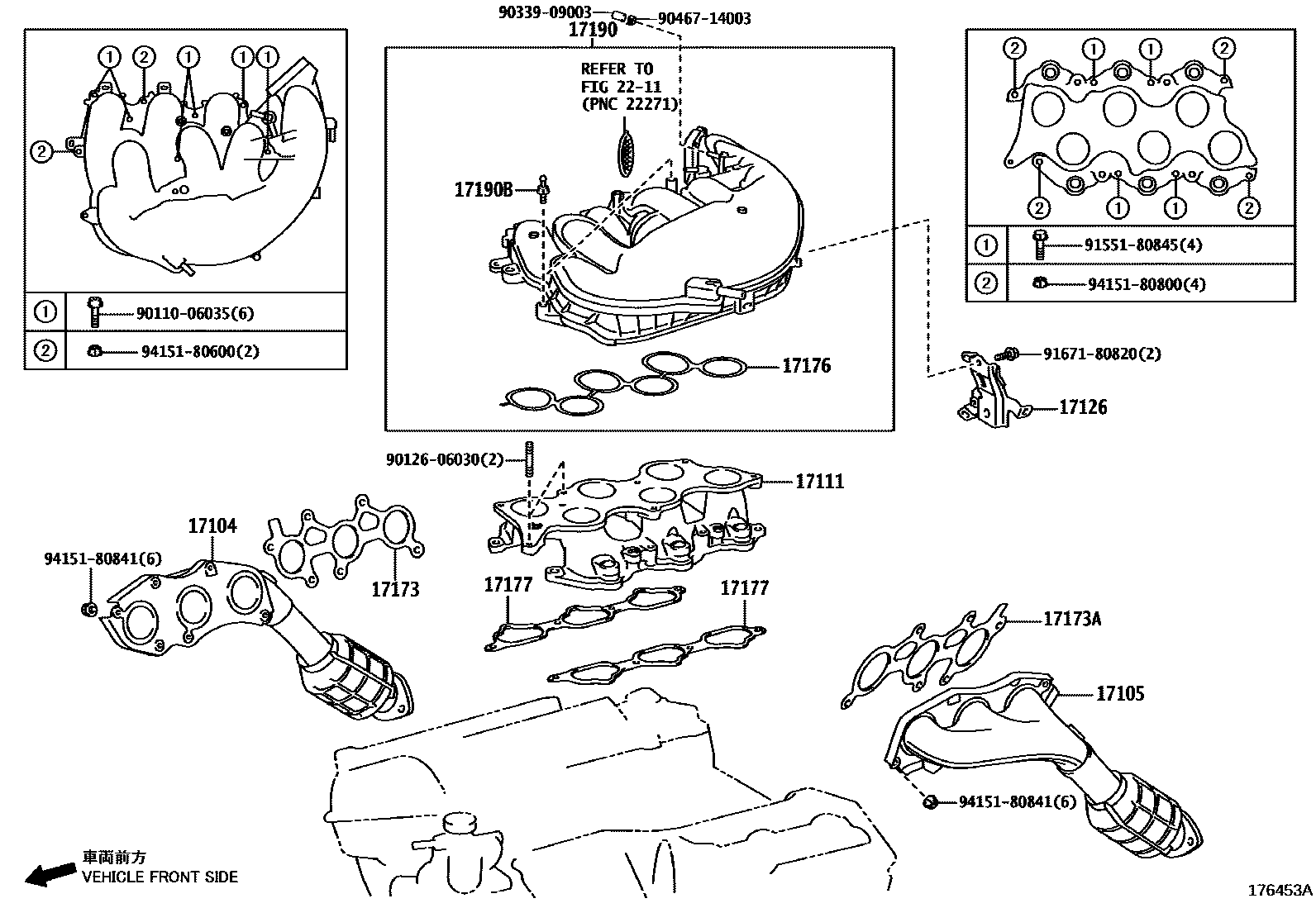

Parts diagram

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-31340i200904-201109

*114=TOYOTA/R31340/Y

main17140-31470i201109-201208

*114=TOYOTA/R31470/Y

main17140-31510i200904-201008

*114=TOYOTA/R31510/Y

main17140-31640i201008-201208

*114=TOYOTA/R31640/Y

main17140-31770i201208

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-31120i200904-201109

*114=TOYOTA/L31120/Y

main17150-31290i201109-201208

main17150-31510i200904-201008

*114=TOYOTA/L31510/Y

main17150-31640i201008-201208

*114=TOYOTA/L31640/Y

main17150-31770i201208

*114=TOYOTA/L31770/Y

17111MANIFOLD, INTAKE

main17111-31170i200904-201107

main17111-31171i201107

main17120-31041i200904

17126STAY, SURGE TANK, NO.2

main17126-31020i200904

main17126-31050i200904

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i200904

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31020i200904

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31050×3i200904-201110

main17176-31060i200904-201112

main17176-31120i201112

main17176-31170×3i201110

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31020×2i200904-201110

main17177-31021×2i201110

main17177-31060×2i200904-201107

main17177-31061×2i201107

17190TANK ASSY, INTAKE AIR SURGE

main17190-31070i200904-201110

main17190-31071i201110-201507

main17190-31100i200904-201112

main17190-31170i201112-201507

17190BBRACKET, INTAKE AIR SURGE TANK, NO.2

main11254-31020×2i200904

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011006035

main90110-06035

9012606030

main90126-06030

9033909003

main90339-09003

9046714003

main90467-14003

9155180845

main91551-80845

9167180820

main91671-80820

9415180600

main94151-80600

9415180800

main94151-80800

9415180841

main94151-80841

20 parts on this diagram · 2 diagrams in section
