SHORT BLOCK ASSEMBLY

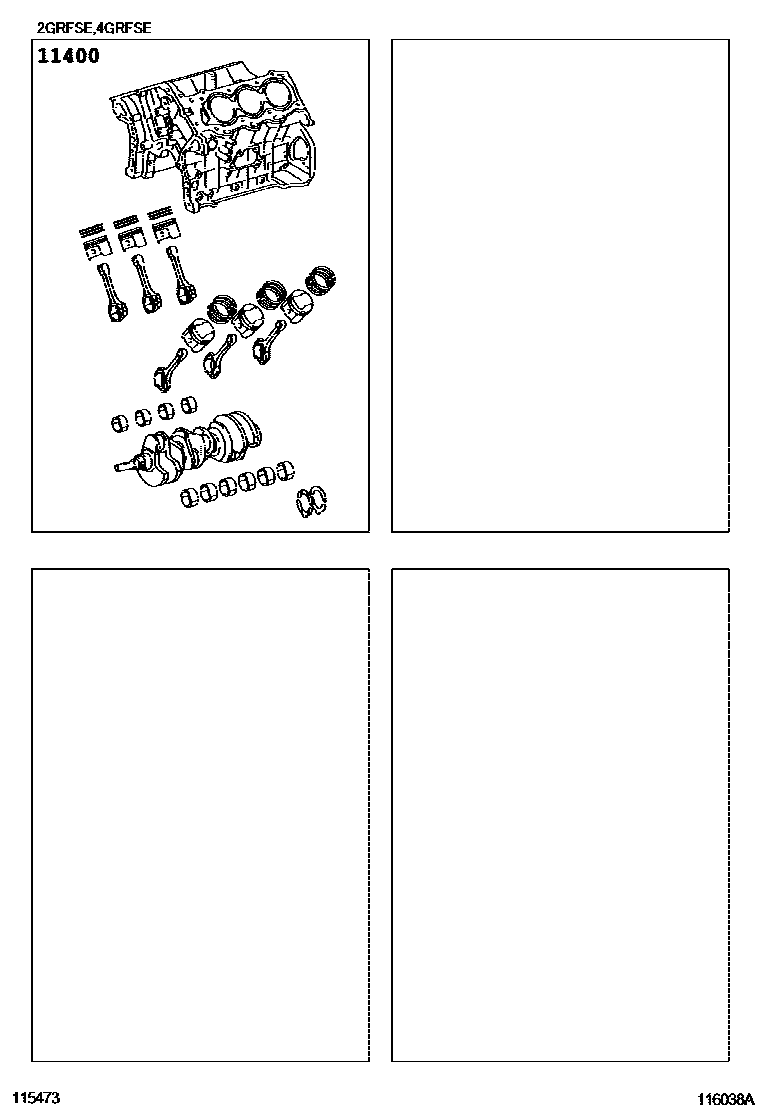

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31050i200904-201201

main11400-31170i200904-201110

main11400-31171i201110-201403

main11400-31330i201201-201403

main11400-39025i201403

main11400-39075i201403

1 parts on this diagram · 1 diagram in section
