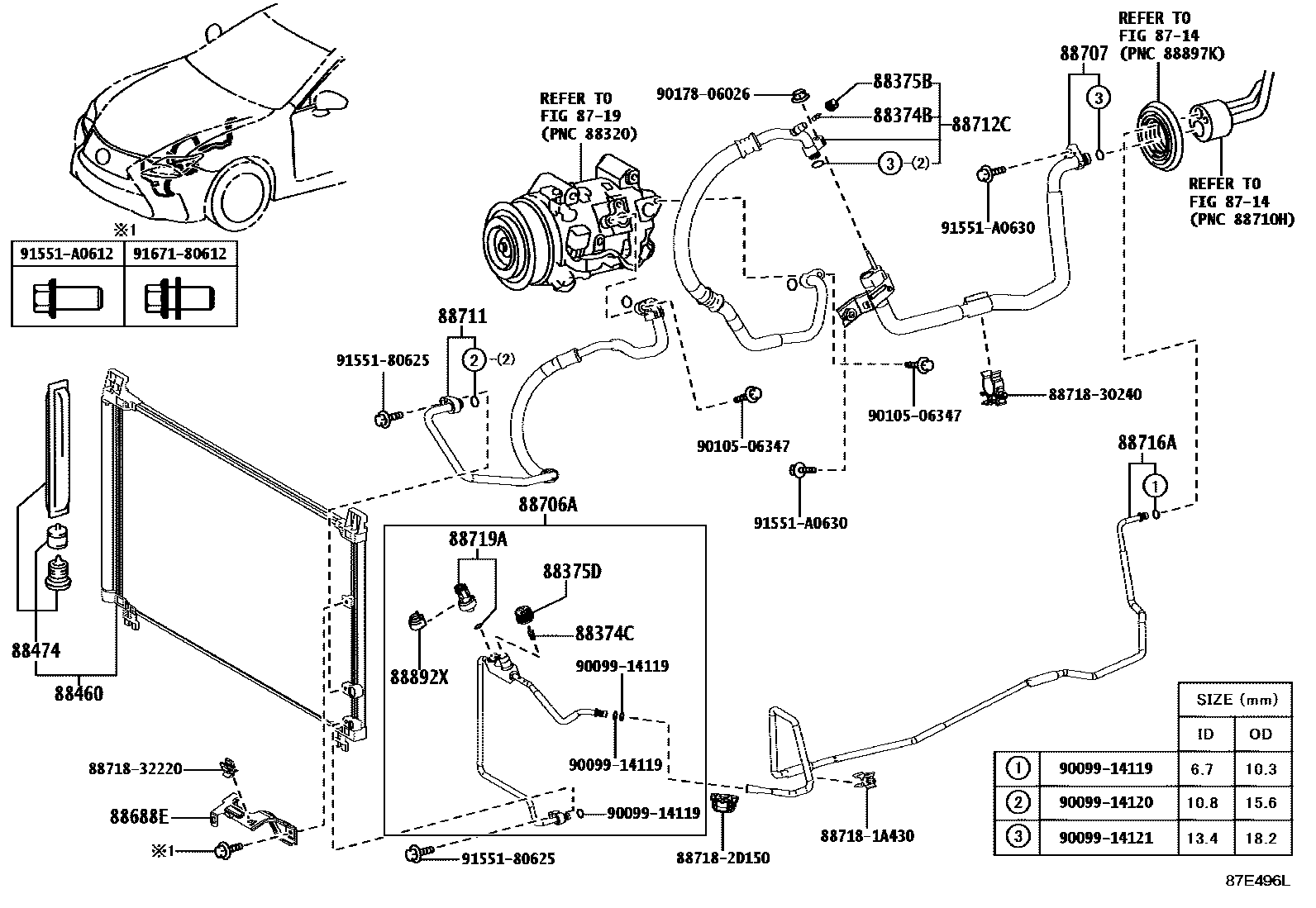

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iGSC1#201409-201510

88374CVALVE, SERVICE, NO.2

main88374-30010iGSC1#201409-201510

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iASC10,GSC1#201810-202009

main88375-30310iASC10,GSC1#202009

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGSC1#201409-201510

main88375-30320iASC10,GSC1#202009

88460CONDENSER ASSY, COOLER

main88460-24100iGSC1#201409-201510

main88460-24150iGSC1#202009

main88460-30B20iGSC1#201510-201810

main88460-30B80iASC10201810-202009

main88460-30C00iASC10202009

88474DRYER, COOLER

main88474-12010iASC10,GSC1#201510-201810

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iGSC1#201409-201510

88706ATUBE SUB-ASSY, LIQUID, A

main88706-24180iGSC1#201409-201510

main88706-24200iGSC1#202009-202403

main88706-24201iGSC1#202403

main88706-30A20iGSC1#201810-202009

main88706-30A30iASC10201810-202009

main88706-30A40iASC10202009

88707PIPE SUB-ASSY, SUCTION

main88707-30A41iGSC1#201510-201810

main88707-53140iASC10201810-202009

main88707-53150iASC10202009

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24180iGSC1#201409-201510

main88711-30A30iGSC1#201510-201810

main88711-30A31iGSC1#202405

main88711-30A40iASC10201810-202404

main88711-30A41iASC10202405

88712CHOSE, SUCTION

main88712-30360iGSC10201409-201510

main88712-53210iGSC15201409-201510

main88712-53230iASC10201510-201810

main88712-53231iASC10202405

main88712-53240iGSC10201810-202009

main88712-53250iGSC15,16201810-202009

main88712-53270iGSC10202009-202404

main88712-53271iGSC10202405

main88712-53280iGSC15,16202009-202404

main88712-53281iGSC15,16202405

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-30071iGSC1#201409-201510

main88716-30B10iGSC1#201810

main88716-30B20iASC10201810

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSC1#201409-201510

88892XCOVER, COOLER, NO.2

main88892-50120iGSC1#201409-201510

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9017806026

main90178-06026

9155180625

main91551-80625

91551A0612

main91551-A0612

91551A0630

main91551-A0630

9167180612

main91671-80612

29 parts on this diagram · 2 diagrams in section
