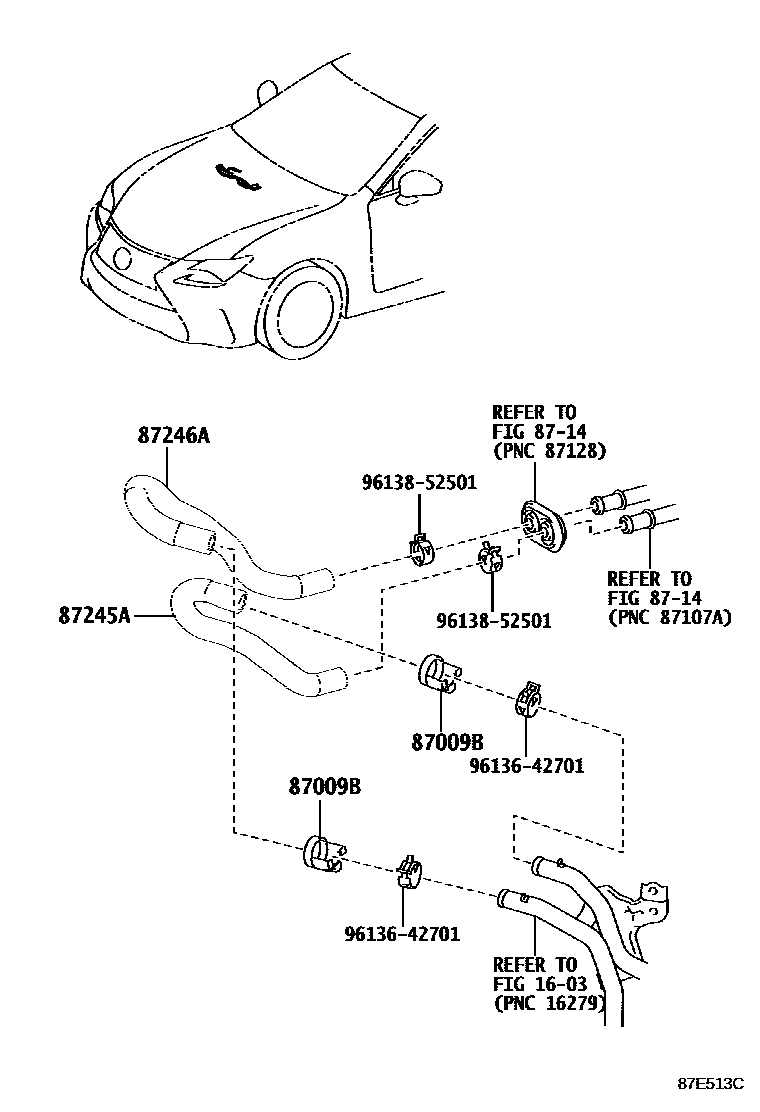

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87009BHOSE SET, WATER

main87009-11010×2iASC10201709-201810

main87009-30040×2iGSC1#201409-201510

main87009-50020×2iASC10201510-201709

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-30D10iGSC1#201711-201810

main87245-53180iGSC1#201510-201711

main87245-53200iASC10201510-201810

87246AHOSE, HEATER WATER, OUTLET A

main87245-30D20iGSC1#201711-201810

main87245-53130iGSC1#201409-201510

main87245-53210iASC10201510-201810

9613642701

main96136-42701

9613852501

main96138-52501

7 parts on this diagram · 3 diagrams in section
