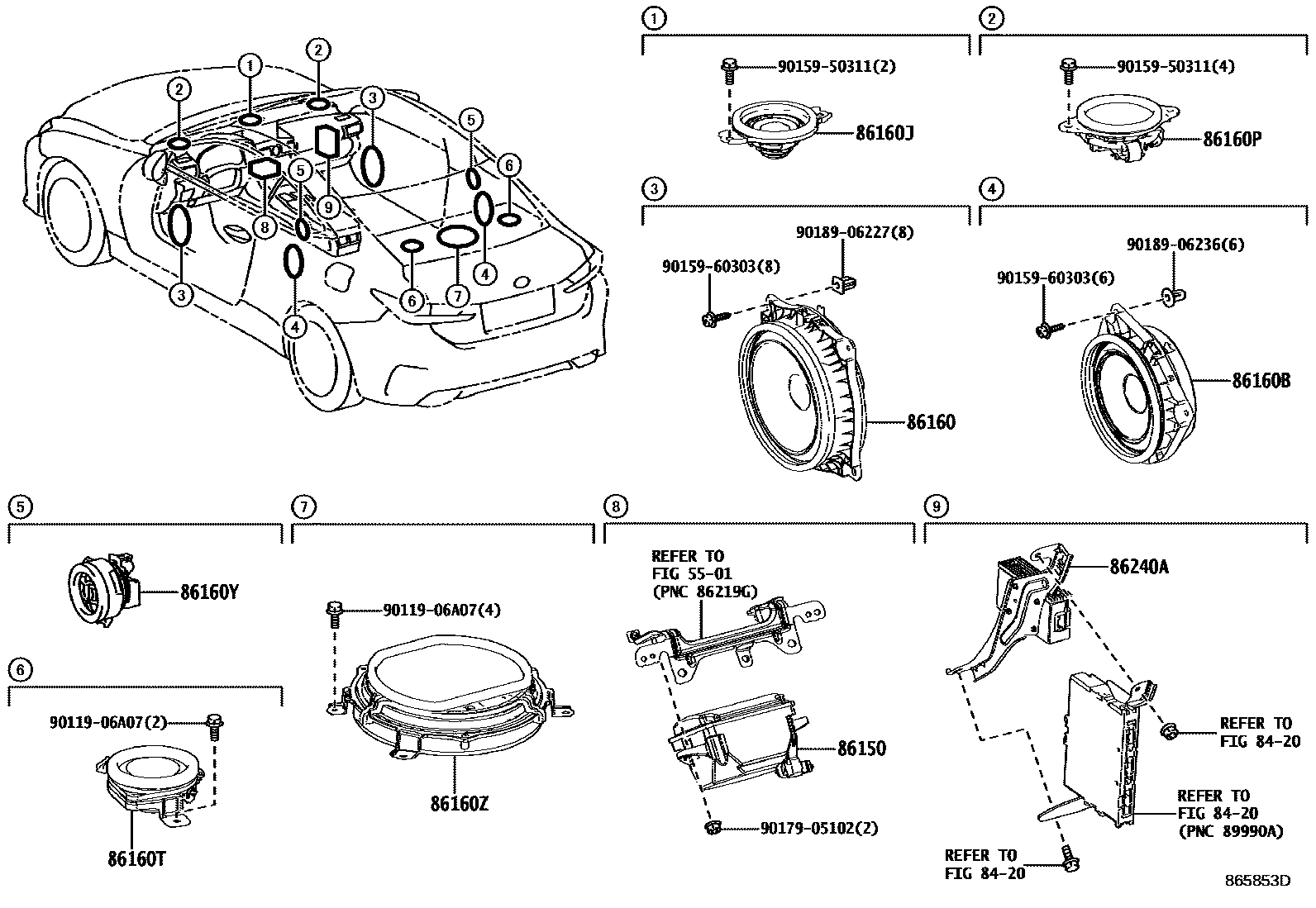

SPEAKER
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
8420WIRELESS DOOR LOCK
86150SPEAKER ASSY, W/BOX, NO.1
ACTIVE SOUND CONTROL-WITH
86160SPEAKER ASSY, FRONT NO.1
AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER
86160BSPEAKER ASSY, REAR
AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER
86160JSPEAKER ASSY, FRONT NO.3
AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER
AUDIO-DISPLAY AUDIO & CD & 17SPEAKER; AUDIO-EMV & DVD & 17SPEAKER
86160PSPEAKER ASSY, FRONT NO.2
AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER
AUDIO-DISPLAY AUDIO & CD & 17SPEAKER; AUDIO-EMV & DVD & 17SPEAKER
86160TSPEAKER ASSY, REAR HEADER
AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER
AUDIO-DISPLAY AUDIO & CD & 17SPEAKER; AUDIO-EMV & DVD & 17SPEAKER
86160YSPEAKER ASSY, REAR NO.2
AUDIO-EMV(KOREA SPEC) & 17SPEAKER
86160ZSPEAKER ASSY, REAR NO.3
AUDIO-EMV & DVD & 17SPEAKER; AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER
86240AEQUALIZER ASSY,STEREO COMPONENT
ACTIVE SOUND CONTROL-WITH
"F SPORT"
"F SPORT"
"F SPORT"
"F SPORT"
"F SPORT"
"F SPORT"
9011906A07
main90119-06A07
9015950311
main90159-50311
9015960303
main90159-60303
9017905102
main90179-05102
9018906227
main90189-06227
9018906236
main90189-06236
17 parts on this diagram · 1 diagram in section
