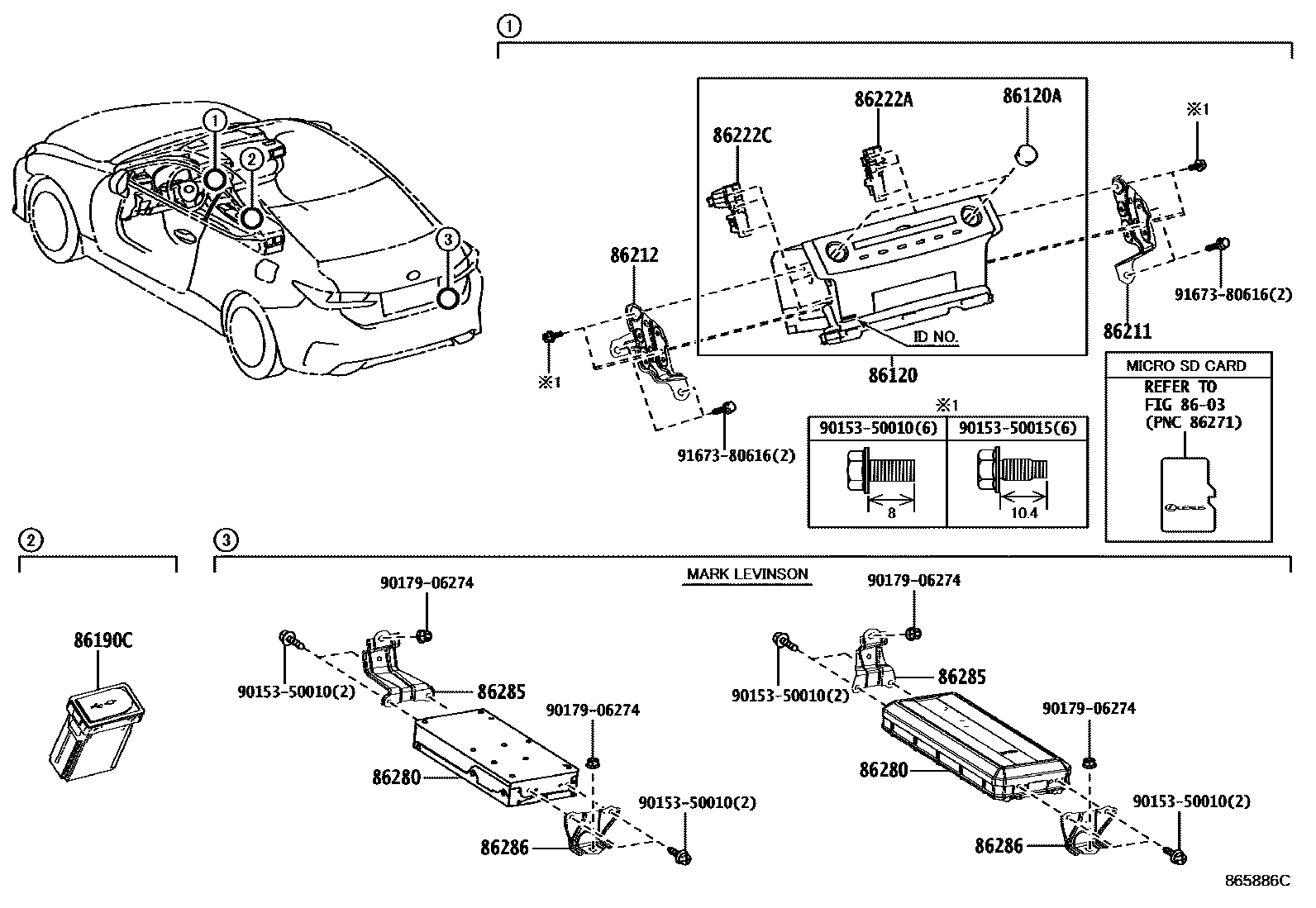

RADIO RECEIVER & AMPLIFIER & CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86140-24010i201510-201608

PIONEER,ID=P10764

main86120-24520supersedes 86140-24260i201711-201810

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24530supersedes 86140-24260i201711-201810

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24540i201711-201810

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24550i201711-201810

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24560i201711-201810

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86120-24570i201711-201810

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86120-24870supersedes 86140-24120i202301

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24880supersedes 86140-24120i202301

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24890i202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24A00supersedes 86140-24460i201810-201911

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24A10supersedes 86140-24460i201810-201911

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24A20i201810-201911

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24A30i201810-201911

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24A40i201810-201911

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT

main86120-24A50i201810-201911

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT

main86120-24D80supersedes 86140-24610i201911-202301

PANASONIC,AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24D90supersedes 86140-24610i201911-202301

PANASONIC,AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)

main86120-24E00i201911-202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24E10i201911-202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86120-24E20i201911-202009

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT

main86120-24E30i201911-202009

PIONEER,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&DATA COMMUNICATION MODULE-WITHOUT

main86120-24J60i202301

PANASONIC,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)

main86130-24050i201510-201711

FUJITSU TEN,ID100425,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 10SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86130-24060i201510-201711

FUJITSU TEN,ID100426,KOREA SPEC&AUDIO-EMV(KOREA SPEC) & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86140-24020supersedes 86140-24010i201409-201510

PIONEER,ID=P10763,CANADA SPEC&MAYDAY SYSTEM-WITHOUT

main86140-24180supersedes 86140-24120i202301

PIONEER,AUDIO-DISPLAY AUDIO & CD & 17SPEAKER

main86140-24190i202301

PIONEER,CANADA SPEC

main86140-24240i201609-201711

PIONEER,ID=P11588,CANADA SPEC&MAYDAY SYSTEM-WITHOUT

main86140-24270i201711-201810

PIONEER,CANADA SPEC

main86140-24470i201810-201911

PIONEER,CANADA SPEC

main86140-24620supersedes 86140-24610i201911-202301

PIONEER,AUDIO-DISPLAY AUDIO & CD & 17SPEAKER

main86140-24630i201911-202301

PIONEER,CANADA SPEC

main86140-24640i201911-202111

PIONEER,CANADA SPEC&AUDIO-DISPLAY AUDIO & CD & 17SPEAKER

main86804-24210supersedes 86140-24230i201510-201711

PIONEER,ID=P10762,AUDIO-EMV & DVD & 10SPEAKER&MAYDAY SYSTEM-WITH & WITH(REMOTE DIAGNOSIS); PIONEER,ID=P10762,GUAM,PUERTO RICO SPEC&AUDIO-EMV & DVD & 10SPEAKER&MAYDAY SYSTEM-WITHOUT; PIONEER,ID=P10762,HAWAII SPEC&AUDIO-EMV & DVD & 10SPEAKER&MAYDAY SYSTEM-WITHOUT

main86804-24220supersedes 86140-24010i201409-201510

PIONEER,ID=P10751,AUDIO-EMV & DVD & 17SPEAKER&MAYDAY SYSTEM-WITH & WITH(REMOTE DIAGNOSIS); PIONEER,ID=P10751,GUAM,PUERTO RICO SPEC&AUDIO-EMV & DVD & 17SPEAKER&MAYDAY SYSTEM-WITHOUT; PIONEER,ID=P10751,HAWAII SPEC&AUDIO-EMV & DVD & 17SPEAKER&MAYDAY SYSTEM-WITHOUT

main86804-24230supersedes 86140-24230i201510-201711

PIONEER,ID=P10755,CANADA SPEC&AUDIO-EMV & DVD & 10SPEAKER&MAYDAY SYSTEM-WITHOUT

main86804-24240supersedes 86140-24230i201510-201711

PIONEER,ID=P10744,CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&MAYDAY SYSTEM-WITHOUT

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22097×2i201510-201711

AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAYDAY SYSTEM-WITH & WITH(REMOTE DIAGNOSIS); CANADA SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAYDAY SYSTEM-WITHOUT; GUAM,PUERTO RICO SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORYCARD NAVIGATION)&MAYDAY SYSTEM-WITHOUT; HAWAII SPEC&AUDIO-EMV & DVD & 17SPEAKER&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)&MAYDAY SYSTEM-WITHOUT

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010i201711-201810

main86190-24030i201911

main86190-53051i201510-201711

86211BRACKET, RADIO, NO.1

main86211-24100i201810

main86211-53050i201510-201711

86212BRACKET, RADIO, NO.2

main86212-24100i201810

main86212-53050i201510-201711

86222ACLIP, RADIO RECEIVER BRACKET NO.1

main86222-53010i201409-201510
