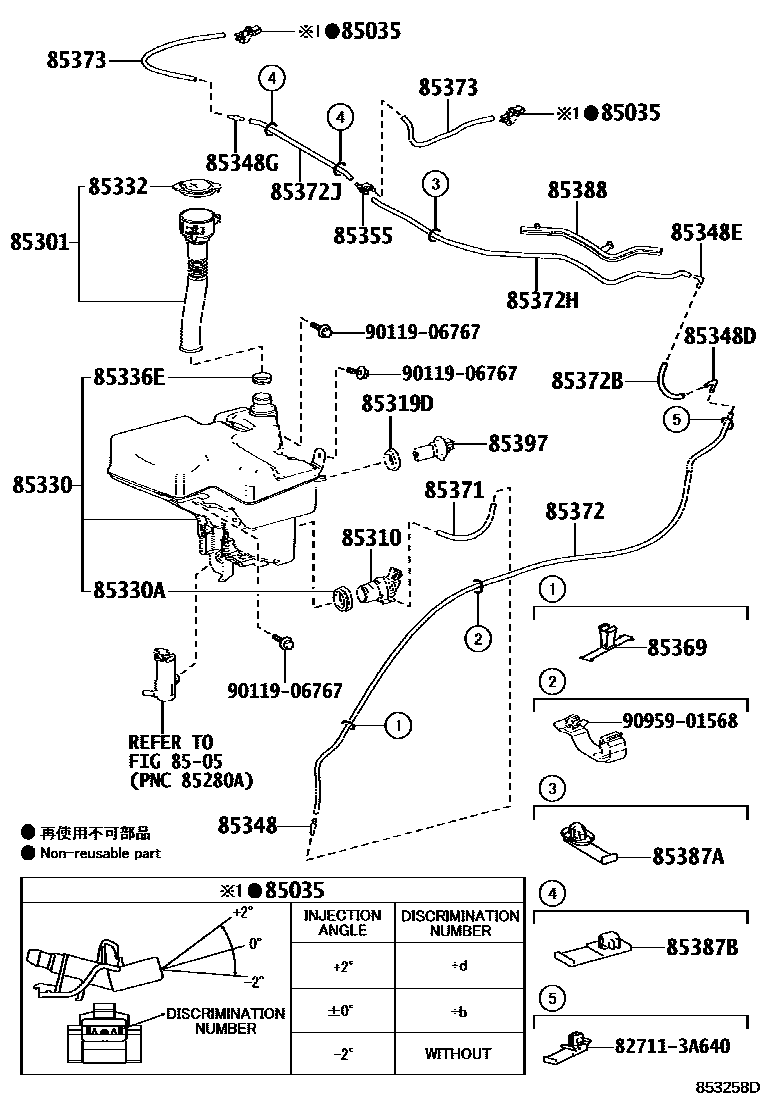

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
KOREA SPEC&HEADLAMP CLEANER-WITH
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
HEADLAMP CLEANER-WITH
KOREA SPEC&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
KOREA SPEC&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
KOREA SPEC&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85336EPACKING, WINDSHIELD WASHER INLET HOSE
KOREA SPEC&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=180),KOREA SPEC&HEADLAMP CLEANER-WITH
L=150,KOREA SPEC&HEADLAMP CLEANER-WITH
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1300)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=55)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=630)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=310
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=420,RH
L=290,LH
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
KOREA SPEC&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER)
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
9011906767
main90119-06767
9095901568
main90959-01568
28 parts on this diagram · 4 diagrams in section
