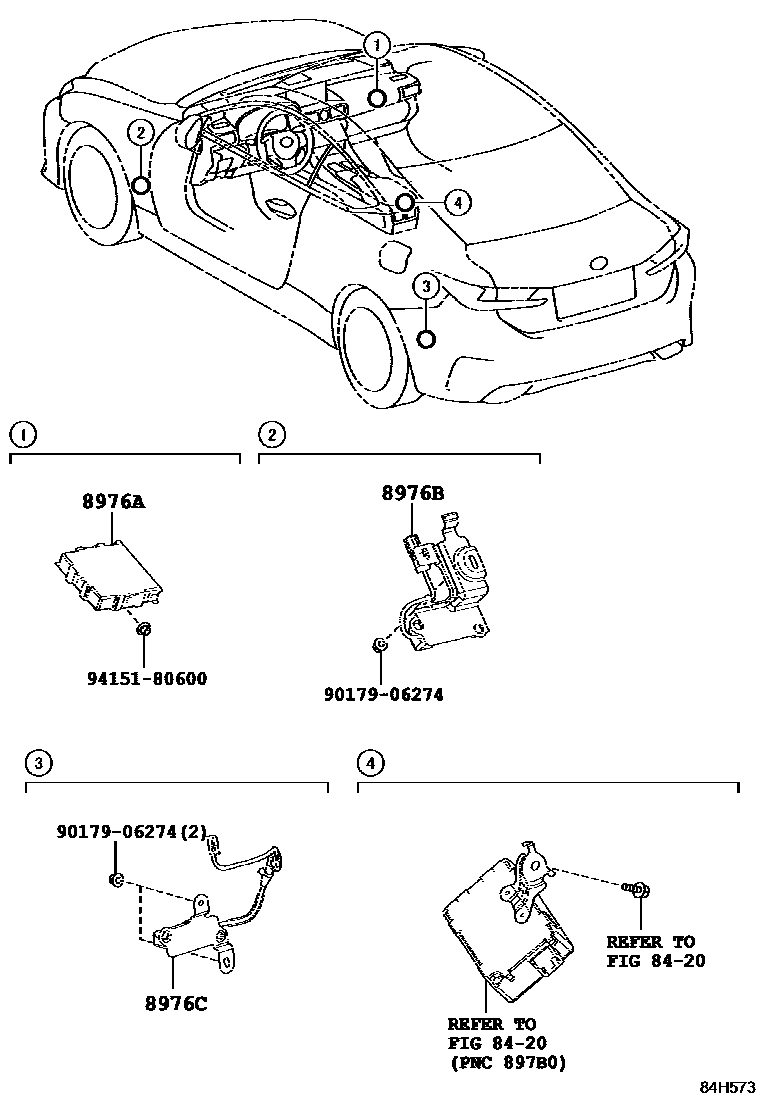

TIRE PRESSURE WARNING SYSTEM

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-53030iGSC1#201409-201505

main8976A-53031iGSC1#201506-201510

main8976A-53032iASC10,GSC1#201902-202009

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-30010iGSC1#201409-201410

main8976B-30011iGSC1#201410-201510

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24010iGSC1#201409-201410

main8976C-24011iGSC1#201410-201510

9017906274

main90179-06274

9415180600

main94151-80600

6 parts on this diagram · 1 diagram in section
