AIR BAG

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iGSC1#201409-201810

89170ACOMPUTER ASSY, AIRBAG

main89170-24170iGSC1#201409-201609

main89170-24320iASC10,GSC1#201609-202209

main89170-24460iASC10,GSC1#202209

89173ASENSOR, AIRBAG, FRONT RH

main89173-39495iGSC1#201409-202207

main89173-39535iASC10,GSC1#202207

89174ASENSOR, AIRBAG, FRONT LH

main89173-39495iGSC1#201409-202207

main89173-39535iASC10,GSC1#202207

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iGSC1#201409-201810

8917ASENSOR, PEDESTRIAN PROTECTION

main8917A-30060

89833SENSOR, AIRBAG, REAR RH

main89831-53050iGSC1#201409-201810

89834SENSOR, AIRBAG, REAR LH

main89831-53050iGSC1#201409-201810

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-33050iGSC1#201409-201810

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iGSC1#201409-201810

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iGSC1#201409-201810

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-33050iGSC1#201409-201810

89952COMPUTER, OCCUPANT DETECTION

main89952-24010iGSC1#201409-201502

main89952-24011iGSC1#201502-201810

KOREA SPEC

main89952-24011iASC10,GSC1#201810

9010506375

main90105-06375

9011908C89

main90119-08C89

9155380618

main91553-80618

9415180800

main94151-80800

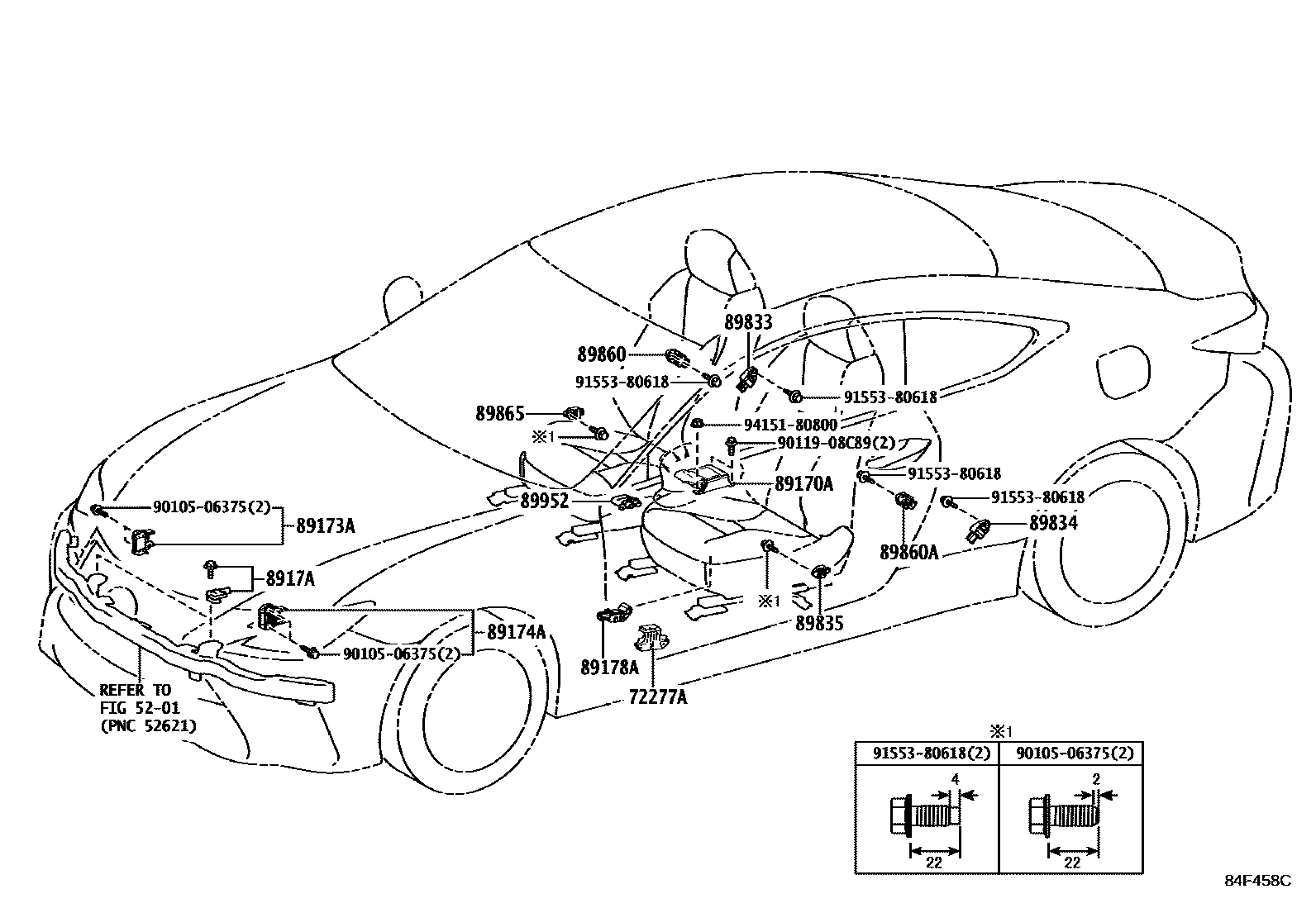

18 parts on this diagram · 1 diagram in section
