ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

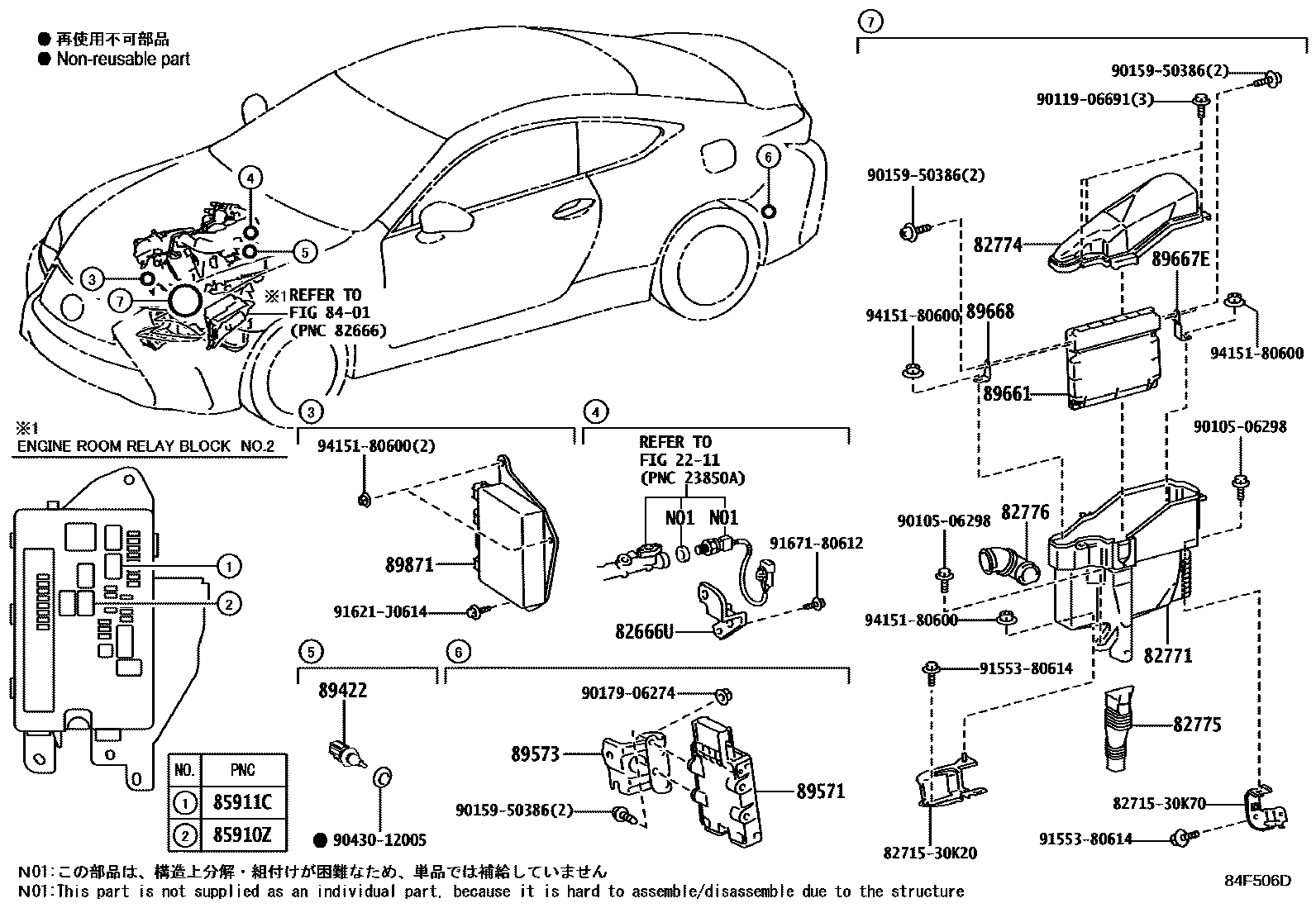

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

82666UHOLDER, CONNECTOR

main82666-30780iGSC1#201409-201510

82771BOX, ENGINE ROOM ECU

main82771-24010iGSC1#201409-201510

main82771-30090iGSC1#201711-201810

main82771-30060iGSC10201510-201711

KOREA SPEC

main82771-30080iGSC10201711-201810

KOREA SPEC

82774COVER, ENGINE ROOM ECU

main82774-30060iGSC1#201409-201510

main82774-30090iASC10,GSC1#201810

82775DUCT, ENGINE ROOM ECU INLET

main82775-24010iGSC1#201409-201510

main82775-24020iASC10,GSC10201510-201810

KOREA SPEC&FRONT FOG LAMP-WITH

main82775-30070iASC10,GSC10201810-202009

KOREA SPEC

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30150iGSC1#201409-201510

main82776-30160iASC10201510-201810

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iGSC1#201409-201510

85911CRELAY, EFI 2

main90987-02027iGSC1#201409-201510

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSC1#201409-201510

main89422-47010iGSC1#201711-201810

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iGSC1#201409-201510

main89571-58010iASC10201510-201810

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-30090iGSC1#201409-201510

main89573-53030iASC10201510-201810

89661COMPUTER, ENGINE CONTROL

main89661-24840iGSC10201409-201510

main89661-24850iGSC15201409-201510

main89661-24A40iGSC10201510-201706

main89661-24A41iGSC10201707-201711

DENSO

main89661-24A50iGSC15201510-201706

main89661-24A51iGSC15201707-201711

DENSO

main89661-24A60iGSC16201510-201706

main89661-24A61iGSC16201707-201711

DENSO

main89661-24A70iASC10201510-201511

main89661-24A71iASC10201512-201606

main89661-24B41iASC10201609-201702

main89661-24B42iASC10201703-201711

DENSO

main89661-24C60iGSC10201711-201806

main89661-24C61iGSC10201807-201810

DENSO

main89661-24C70iGSC15201711-201806

main89661-24C71iGSC15201807-201810

DENSO

main89661-24C80iGSC16201711-201806

main89661-24C81iGSC16201807-201810

DENSO

main89661-24D21iASC10201803-201808

DENSO

main89661-24D22iASC10201809-201810

DENSO

main89661-24E60iASC10201810-201811

DENSO

main89661-24E80iGSC10201810-201901

DENSO

main89661-24E81supersedes 89661-24E82iGSC10201902-201908

DENSO

main89661-24E90iGSC15201810-201812

DENSO

main89661-24E91iGSC15201901-201908

DENSO

main89661-24E92iGSC15201909-202009

DENSO

main89661-24F00iGSC16201810-201812

DENSO

main89661-24F01iGSC16201901-201908

DENSO

main89661-24F02iGSC16201909-202009

DENSO

main89661-24J20iGSC10202009-202301

DENSO

main89661-24J30iGSC15202009-202301

DENSO

main89661-24J40iGSC16202009-202301

DENSO

main89661-24J90iASC10202009-202301

DENSO

main89661-24K90iGSC10202301-202501

DENSO

main89661-24L00iGSC15202301-202501

DENSO

main89661-24L10iGSC16202301-202501

DENSO

main89661-24M10iASC10202301-202501

DENSO

main89661-24P10iGSC10202501

DENSO

main89661-24P20iGSC15202501

DENSO

main89661-24P30iGSC16202501

DENSO

main89661-24P40iASC10202501

DENSO

main89661-24B20supersedes 89661-24A72iASC10201510-201609

KOREA SPEC

main89661-24B90iASC10201609-201711

KOREA SPEC

main89661-24D70supersedes 89661-24D20iASC10201711-201810

KOREA SPEC

main89661-24E70supersedes 89661-24E61iASC10201810-201911

DENSO,KOREA SPEC

main89661-24G40supersedes 89661-24G30iASC10201911-202009

DENSO,KOREA SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30300iGSC1#201409-201510

main89667-53040iASC10201510-201810

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30280iGSC1#201409-201510

main89668-53040iASC10201510-201810

89871DRIVER, INJECTOR

main89871-53010iGSC1#201409-201510

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20

8271530K70BRACKET,WIRING HARNESS CLAMP

main82715-30K70

9010506298

main90105-06298

9011906691

main90119-06691

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9415180600

main94151-80600

27 parts on this diagram · 4 diagrams in section
