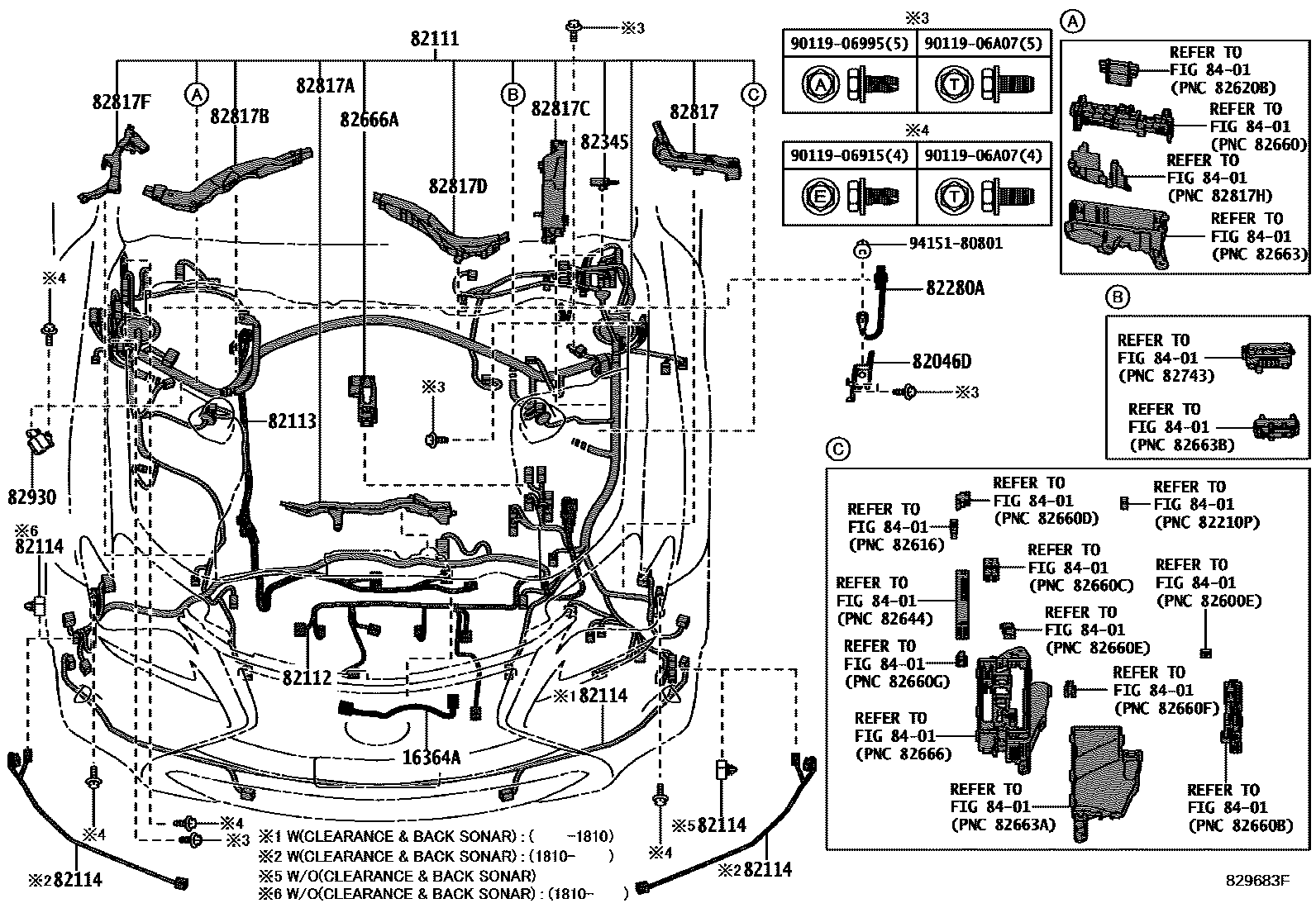

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CLAMP & BRACKET 0011 1CONNECTOR 1/3 0012 1CONNECTOR 2/3 0013 1CONNECTOR 3/3

16364AWIRE, COOLING FAN

main16364-38040i8ARFTS..ASC10201510-201810

82046DWIRE, BODY GROUND

main82046-53100iASC10,GSC1#202009

82111WIRE, ENGINE ROOM MAIN

main82111-24A30iGSC10201409-201510

main82111-24B41iGSC10201510-201711

main82111-24C60iGSC15201409-201510

main82111-24C61iGSC15,16201510-201711

main82111-24F50iASC10201510-201609

main82111-24F51iASC10201609-201711

main82111-24L20iGSC10201711-201810

main82111-24M20iGSC15,16201711-201810

main82111-24Q00iASC10201711-201810

main82111-24S10iGSC10201810-201910

main82111-24S11iGSC10201911-202009

main82111-24S12iGSC10202009-202111

main82111-24S13iGSC10202111-202210

main82111-24S14iGSC10202210

main82111-24S70iGSC15,16201810-201910

main82111-24S71iGSC15,16201911-202009

main82111-24S72iGSC15,16202009-202111

main82111-24S73iGSC15,16202111-202210

main82111-24S74iGSC15,16202210

main82111-24T90iASC10201810-201910

main82111-24T91iASC10201911-202009

main82111-24T92iASC10202009-202111

main82111-24T93iASC10202111-202210

main82111-24T94iASC10202210

82112WIRE, ENGINE ROOM, NO.2

main82112-24130iGSC1#201409-201510

main82112-24210iGSC1#201510-201711

main82112-24270iASC10201510-201711

main82112-24310iGSC1#201711-201810

main82112-24311iGSC1#201810-202009

main82112-24312iGSC1#202009-202210

main82112-24313iGSC1#202210

main82112-24340iASC10201711-201810

main82112-24341iASC10201810-202009

main82112-24342iASC10202009-202210

main82112-24343iASC10202210

82113WIRE, ENGINE ROOM, NO.3

main82113-24030iGSC10201409-201711

main82113-24040iGSC15201409-201810

main82113-24080iASC10,GSC10201711-201810

82114WIRE, ENGINE ROOM, NO.4

main82114-53010iGSC1#201409-201607

main82114-53100iASC10,GSC1#201608-201810

82280AWIRE ASSY, BATTERY TO COWL TOP SIDE

main82280-24020iASC10,GSC1#201409-202009

main82284-53140iASC10,GSC1#202009

82345DIODE

main82345-32020iGSC1#201409-201810

82666AHOLDER, CONNECTOR NO.2

main82666-30A70iGSC1#201409-201810

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24A20iGSC1#201409-201810

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-24B10iASC10,GSC1#201409-201810

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30M00iGSC1#201409-201810

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-30M70iGSC1#201409-201910

main82817-3AK40iASC10,GSC1#201911

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-30Y40iGSC1#201409-201810

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-30W40iASC10201510-201810

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30030iGSC1#201409-201810

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906995

main90119-06995

9011906A07

main90119-06A07

9415180801

main94151-80801

21 parts on this diagram · 13 diagrams in section
