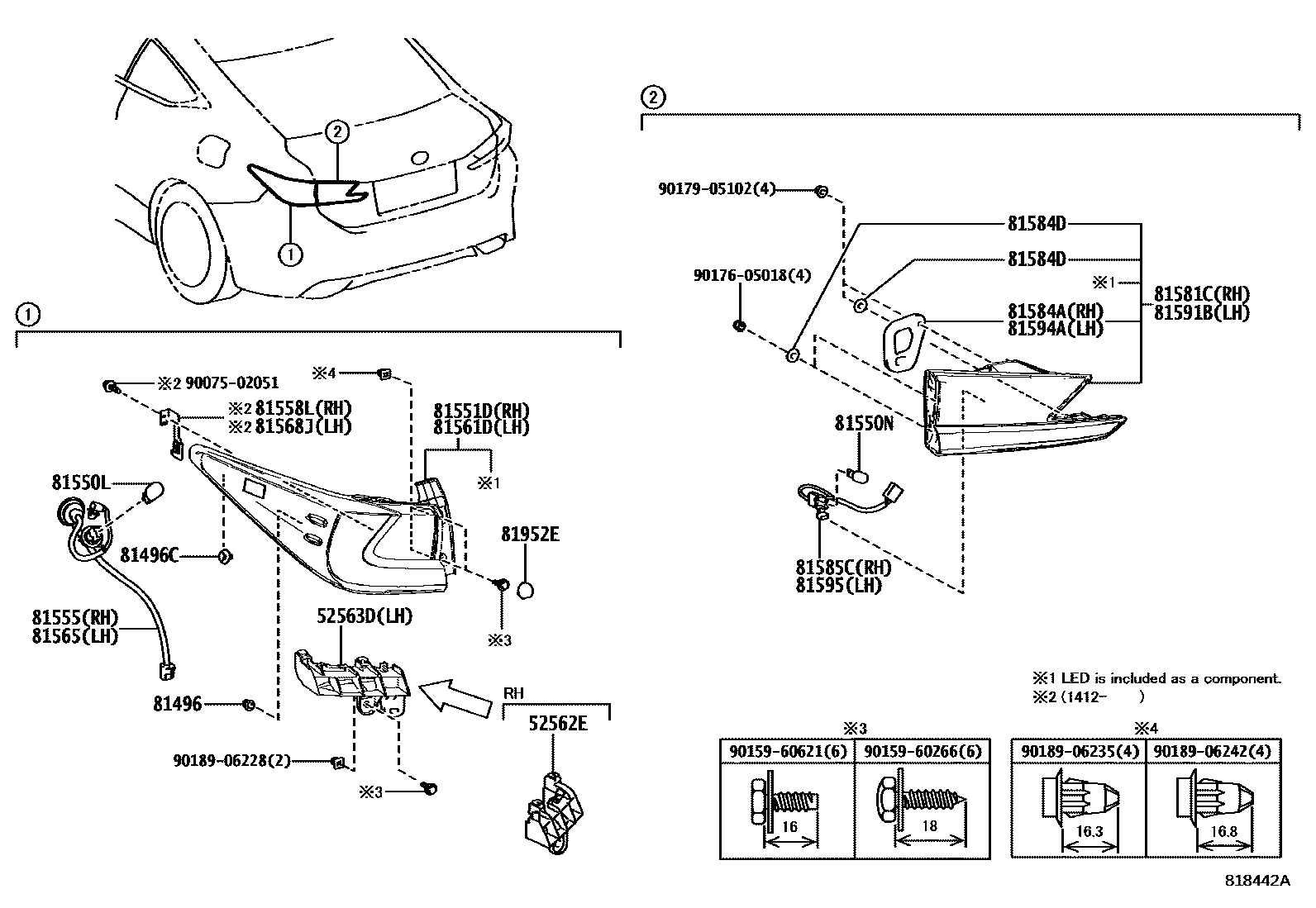

REAR COMBINATION LAMP

0001 1 0002 1LED TYPE(TURN SIGNAL LAMP) 0003 1BULB TYPE(TURN SIGNAL LAMP)

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-24010iASC10,GSC1#201510-201810

main52562-24020iASC10,GSC1#201810

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-24010iGSC1#201409-201510

main52563-24020iASC10,GSC1#201810

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iGSC1#201409-201510

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iGSC1#201409-201510

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iGSC1#201409-201510

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iASC10,GSC1#201510-201810

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-24160iGSC1#201409-201412

main81551-24190iASC10,GSC1#201510-201810

main81551-24220iASC10,GSC1#201810

main81551-24180iGSC10201409-201412

KOREA SPEC

main81551-24210iGSC10201412-201510

KOREA SPEC

main81551-24230iASC10,GSC10201810-202003

KOREA SPEC

main81551-24231iASC10,GSC10202003-202009

KOREA SPEC

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24160iGSC1#201409-201510

main81555-24220iASC10,GSC1#201810

main81555-24230iASC10,GSC10201810-202009

KOREA SPEC

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24160iASC10,GSC1#201510-201810

main81558-24220iASC10,GSC1#201810

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-24160iGSC1#201409-201412

main81561-24190iGSC1#201412-201510

main81561-24220iASC10,GSC1#201810

main81561-24180iGSC10201409-201412

KOREA SPEC

main81561-24210iGSC10201412-201510

KOREA SPEC

main81561-24230iASC10,GSC10201810-202003

KOREA SPEC

main81561-24231iASC10,GSC10202003-202009

KOREA SPEC

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-24160iGSC1#201409-201510

main81565-24220iASC10,GSC1#201810

main81565-24230iASC10,GSC10201810-202009

KOREA SPEC

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81568-24160iGSC1#201412-201510

main81568-24220iASC10,GSC1#201810

81581CLENS AND BODY, REAR LAMP, RH

main81581-24060iGSC1#201409-201412

main81581-24090iGSC1#201412-201510

81584AGASKET, REAR LAMP RH

main81584-24060iGSC1#201409-201510

main81584-24100iASC10,GSC1#201810

81584DGASKET, REAR LAMP

main81584-24050×6iGSC1#201409-201510

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-24060iGSC1#201409-201510

main81585-24100iASC10,GSC1#201810

81591BLENS AND BODY, REAR LAMP, LH

main81591-24060iGSC1#201409-201412

main81591-24090iGSC1#201412-201510

81594AGASKET, REAR LAMP LH

main81594-24060iGSC1#201409-201510

main81594-24100iASC10,GSC1#201810

81595SOCKET & WIRE, REAR LAMP, LH

main81585-24060iGSC1#201409-201510

main81585-24100iASC10,GSC1#201810

81952ECOVER, REAR LAMP

main81952-22010×4iGSC1#201409-201510

9007502051

main90075-02051

9015960266

main90159-60266

9015960621

main90159-60621

9017605018

main90176-05018

9017905102

main90179-05102

9018906228

main90189-06228

9018906235

main90189-06235

9018906242

main90189-06242

28 parts on this diagram · 3 diagrams in section
