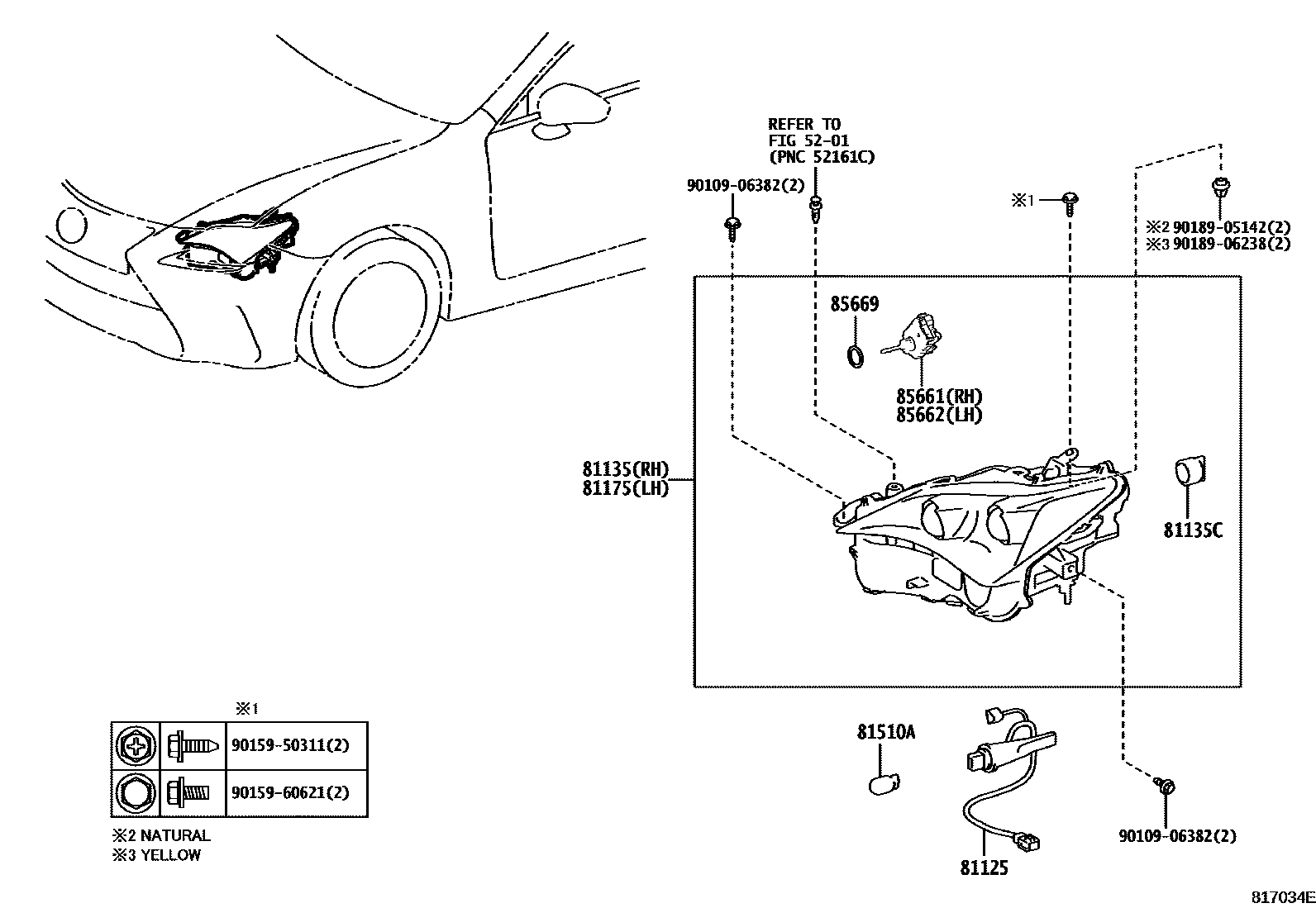

HEADLAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81125CORD, HEADLAMP

main81125-24180×2i201409-201510

81135UNIT ASSY, HEADLAMP, RH

main81145-24210supersedes 81140-24180i201409-201510

HEADLAMP-LED(TRINOCULAR FULL LED); HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81145-24220i201510-201810

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81145-24330supersedes 81145-24291i201810-202309

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81145-24331supersedes 81145-24291i202309

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81145-24350i201810-202009

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

81135CCOVER, HEADLAMP BACK, NO.1

main81135-22B70×2i201409-201510

81175UNIT ASSY, HEADLAMP, LH

main81185-24210supersedes 81185-24291i201510-201810

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81185-24220i201711-201810

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81185-24330supersedes 81185-24291i201810-202309

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81185-24331supersedes 81185-24291i202309

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

main81185-24350i201810-202009

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2i201409-201510

12V 28/8W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020i201409-201510

main85661-48050i201810-202009

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020i201409-201510

main85661-48050i201810-202009

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i201409-201510

9010906382

main90109-06382

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

9018906238

main90189-06238

14 parts on this diagram · 6 diagrams in section
