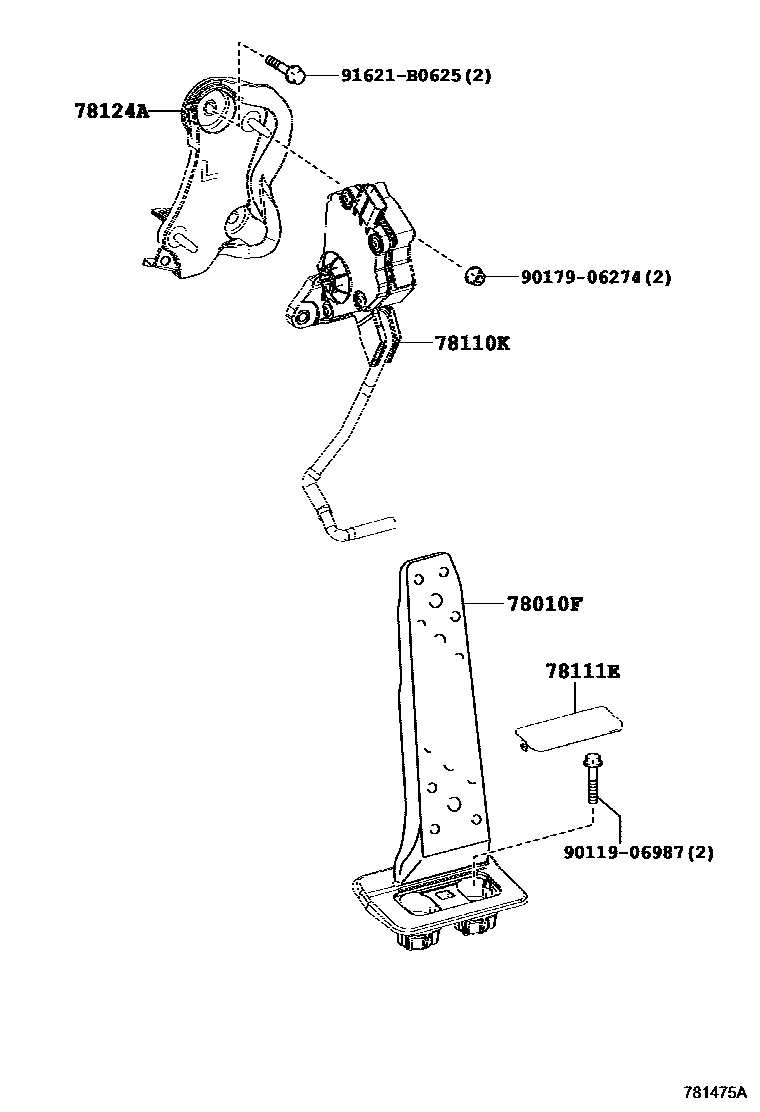

ACCELERATOR LINK

0001 1 0002 1

78010FPEDAL ASSY, ACCELERATOR

main78101-24030supersedes 78101-30070iGSC15,16201510-201810

"F SPORT"

main78101-30061supersedes 78101-53051iASC10,GSC10201810

"F SPORT"

main78101-30090supersedes 78101-30070iGSC15201409-201510

"F SPORT"

main78101-53040supersedes 78101-53051iGSC10201409-201506

"F SPORT"

main78101-53041supersedes 78101-53051iGSC10201507-201510

"F SPORT"

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30151iGSC10201409-201510

main78110-30161iGSC15,16201510-201601

main78110-30170iASC10,GSC10201602-201810

main78110-30180iGSC15,16201602-201810

78111EPAD, ACCELERATOR PEDAL

main78117-30020iGSC15,16201810

main78117-30030iASC10,GSC10201810

78124ABRACKET, ACCELERATOR PEDAL ROD

main78125-30071iGSC15,16201810

main78125-30081iASC10,GSC10201810

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

7 parts on this diagram · 2 diagrams in section
