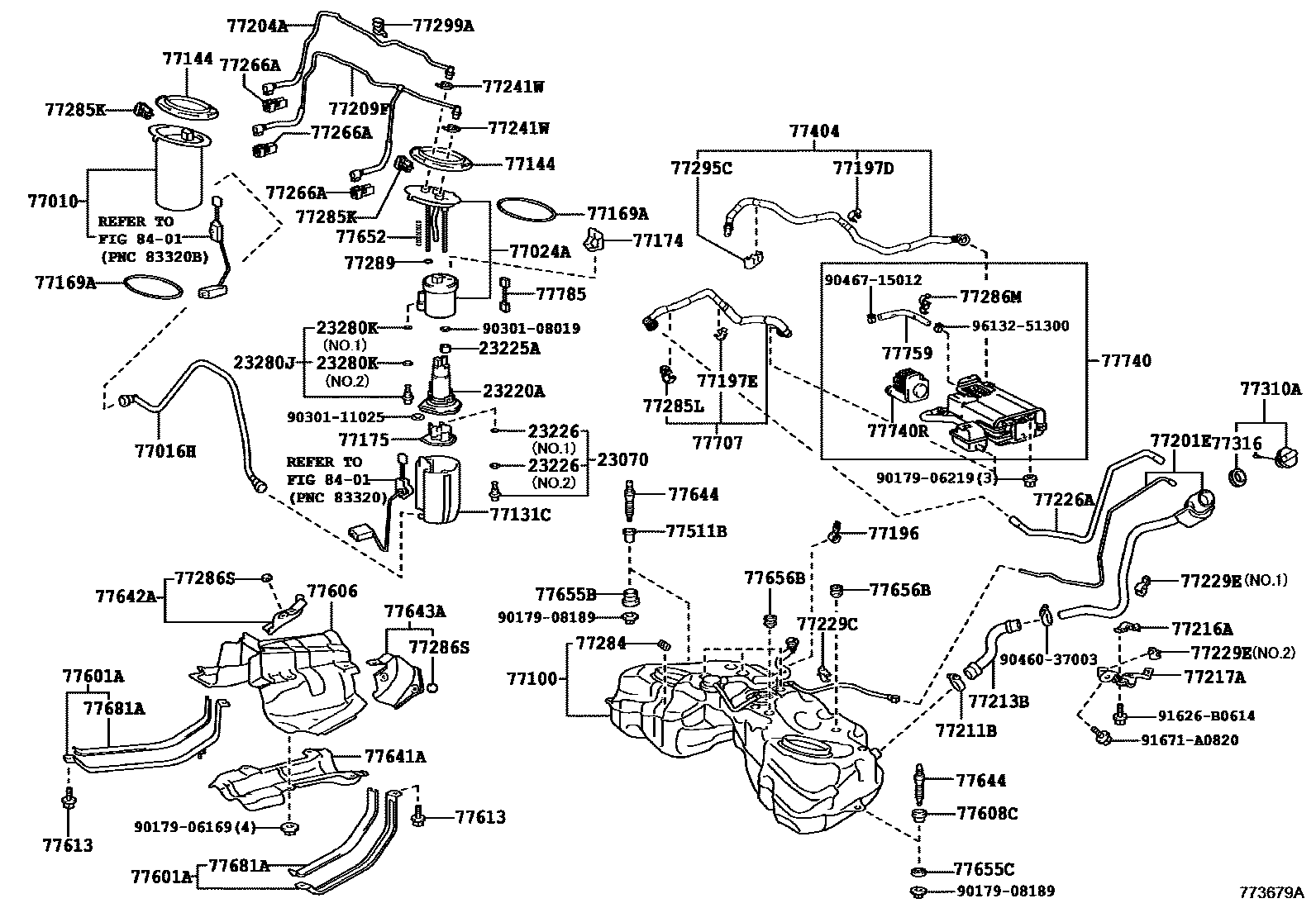

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77197ECLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77204ATUBE, FUEL TANK RETURN
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77266APROTECTOR, FUEL TUBE, NO.1
"F SPORT"; "VERSION L"
77284CLAMP, FUEL TUBE
77285KCLAMP, FUEL TUBE, NO.1
77285LCLAMP, FUEL TUBE, NO.1
77286MCLAMP, FUEL TUBE, NO.6
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77295CGROMMET, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77404HOSE SUB-ASSY, FUEL TANK VENT
STEERING-ELECTRIC POWER STEERING(VGRS)
77511BBRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77644BOLT, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77655BCUSHION, FUEL TANK
77655CCUSHION, FUEL TANK
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
