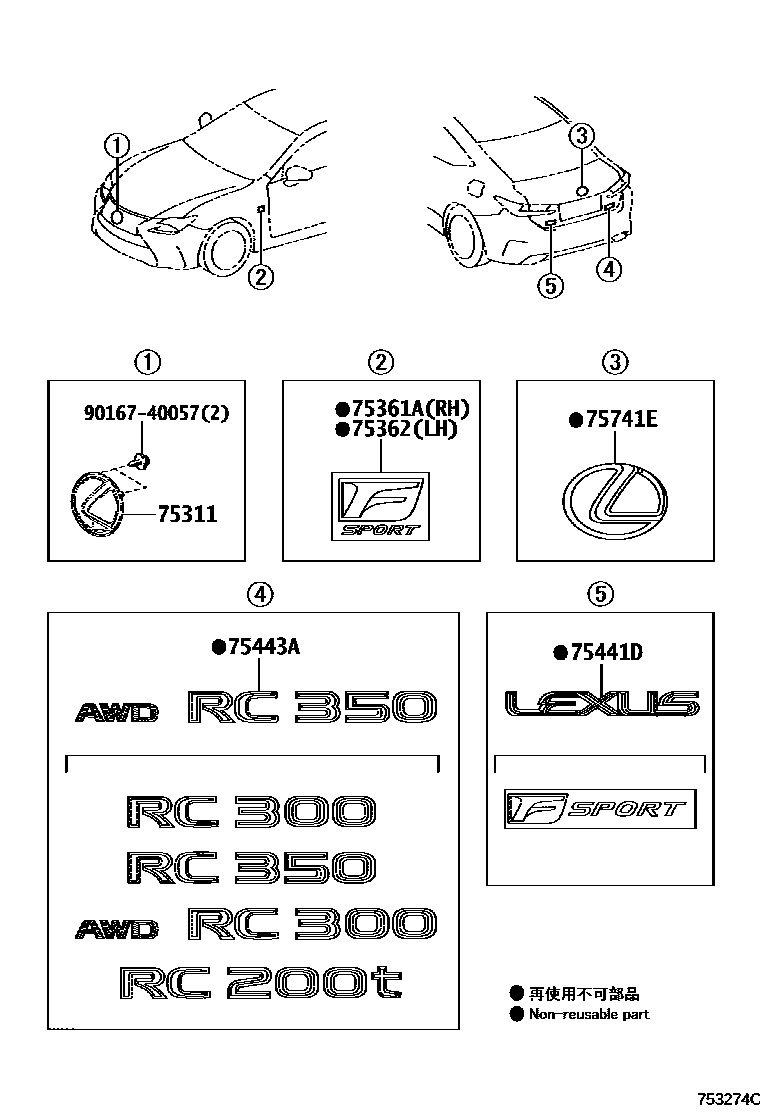

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-50060iASC10,GSC1#201711-201810

main53141-53030iASC10,GSC1#201810-202101

main53141-53031iASC10,GSC1#202102

main53141-50040supersedes 90975-02133iGSC1#201409-201510

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main90975-02107iASC10,GSC10201810-202009

"F SPORT"&PRE-COLLISION SYSTEM-WITHOUT; "VERSION L"&PRE-COLLISION SYSTEM-WITHOUT

main90975-02133iASC10,GSC10201711-201810

"F SPORT"&PRE-COLLISION SYSTEM-WITHOUT; "VERSION L"&PRE-COLLISION SYSTEM-WITHOUT

75361APLATE, FRONT FENDER NAME, NO.1

main75361-53030iGSC1#; GSC10201409-201510

F SPORT,"F SPORT"; F SPORT,KOREA SPEC&"F SPORT"

75362PLATE, FRONT FENDER NAME, NO.2

main75362-53030iGSC1#; GSC10201409-201510

F SPORT,"F SPORT"; F SPORT,KOREA SPEC&"F SPORT"

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-24090iASC10,GSC10201810-202009

LEXUS,KOREA SPEC

main75443-24190iGSC1#201409-201510

F SPORT,"F SPORT"

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-24130iGSC10201409-201510

RC350

main75443-24150iGSC15201810

AWD RC350

main75443-24200iGSC16201510-201810

AWD RC300

main75443-24210iASC10201510-201711

RC200T

main75443-24230iASC10201810

RC300

75741EEMBLEM, SYMBOL

main90975-02109iASC10,GSC1#202210

main90975-02154iASC10,GSC1#201810-202209

main90975-02212iGSC1#201409-201510

9016740057

main90167-40057

7 parts on this diagram · 1 diagram in section
