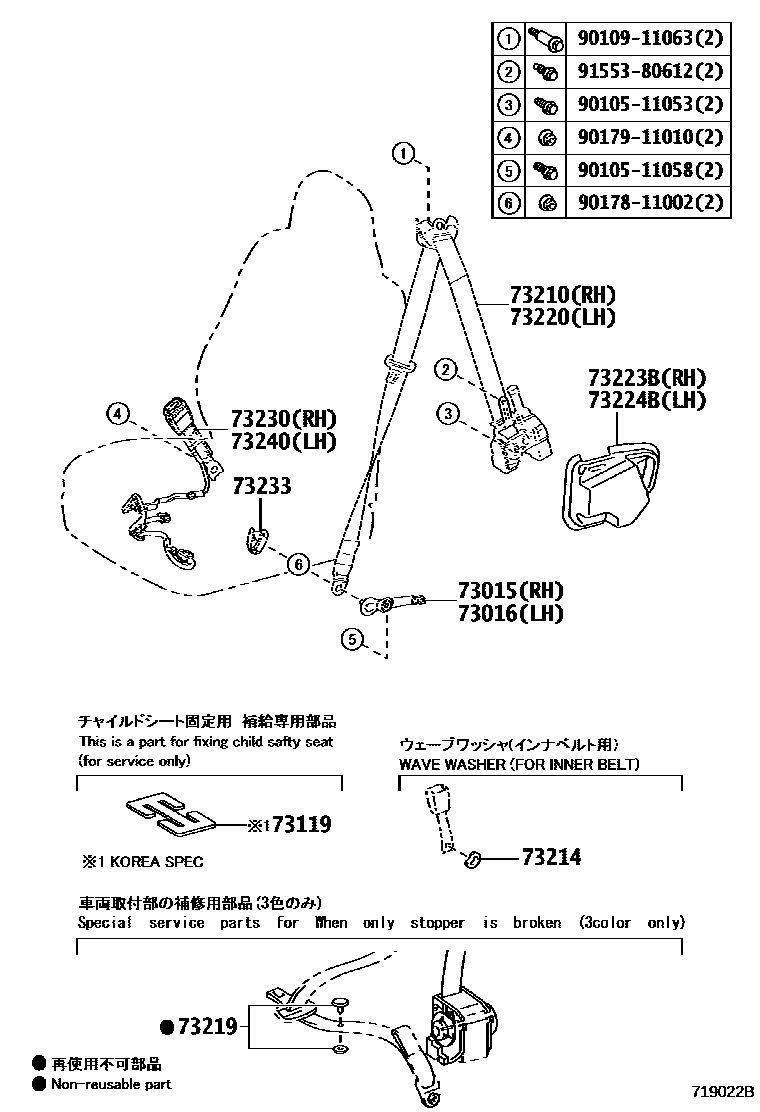

SEAT BELT & CHILD RESTRAINT SEAT
73015BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73016BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
73119PLATE, SEAT BELT WEBBING CLIP
KOREA SPEC
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
KOREA SPEC&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,1#,2#,3#,4#,5#
KOREA SPEC&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,2#,3#,4#,5#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
KOREA SPEC&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM1#,2#,3#,4#,5#
KOREA SPEC&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM1#,2#,3#,4#,5#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,2#,3#,4#,5#
KOREA SPEC&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,2#,3#,4#,5#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#,2#,3#,4#,5#
9010511053
main90105-11053
9010511058
main90105-11058
9010911063
main90109-11063
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
18 parts on this diagram · 2 diagrams in section
