FRONT SEAT & SEAT TRACK

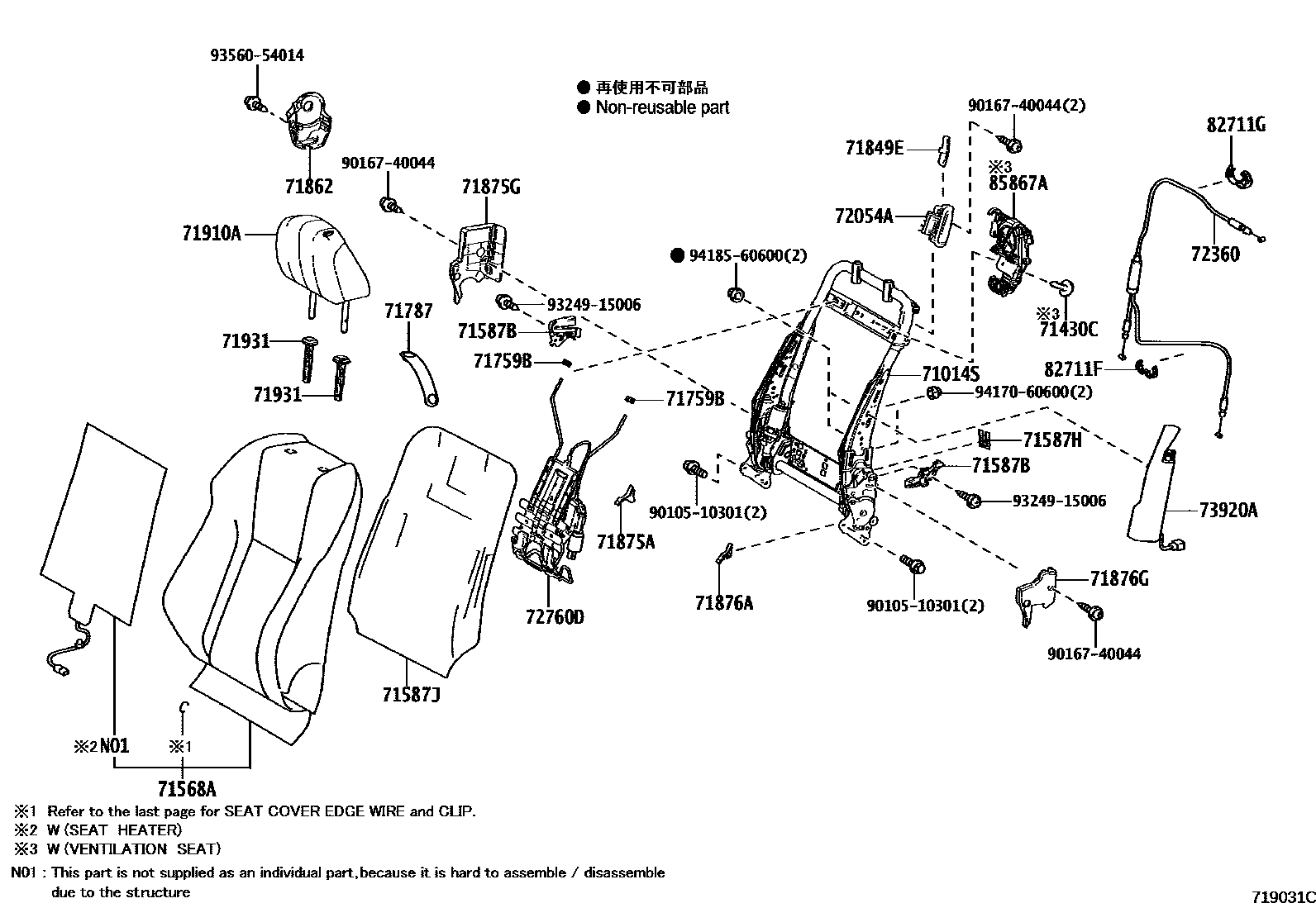

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-24070i201409-201703
main71014-24071i201704-201810
71430CCLIP
71568APAD, FRONT SEATBACK W/COVER, LH
main71402-24010-B1i201409-201510
MOON STONE,TRIM1#
main71402-24010-B1i201409-201510
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#
main71402-24010-B2i201510-201608
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#
main71402-24010-B2i201510-201608
MOON STONE,TRIM1#
main71402-24010-C1i201409-201510
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24010-C1i201409-201510
BLACK,TRIM2#
main71402-24010-C2i201510-201608
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24010-C2i201510-201608
BLACK,TRIM2#
main71402-24010-E1i201409-201510
TOPAZ BROWN,TRIM4#
main71402-24010-E1i201409-201510
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),TOPAZ BROWN,TRIM4#
main71402-24010-E2i201510-201608
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),TOPAZ BROWN,TRIM4#
main71402-24010-E2i201510-201608
TOPAZ BROWN,TRIM4#
main71402-24010-F1i201409-201510
CLOVE,TRIM5#
main71402-24010-F1i201409-201510
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),CLOVE,TRIM5#
main71402-24010-F2i201510-201608
CLOVE,TRIM5#
main71402-24010-F2i201510-201608
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),CLOVE,TRIM5#
main71402-24011-B0i201609-201802
MOON STONE,TRIM1#
main71402-24011-B0i201609-201802
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#
main71402-24011-B1i201802-201810
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),MOON STONE,TRIM1#
main71402-24011-B1i201802-201810
MOON STONE,TRIM1#
main71402-24011-C0i201609-201802
BLACK,TRIM2#
main71402-24011-C0i201609-201802
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24011-C1i201802-201810
BLACK,TRIM2#
main71402-24011-C1i201802-201810
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),BLACK,TRIM2#
main71402-24011-C3i201810-202501
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),BLACK/LT.GRAY,TRIM2#
main71402-24011-C3i201810-202501
BLACK/LT.GRAY,TRIM2#
main71402-24011-C5i202501
BLACK/LT.GRAY,TRIM2#
main71402-24011-C5i202501
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),BLACK/LT.GRAY,TRIM2#
main71402-24011-D2i201810-202301
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),DK.ROSE/RED,TRIM3#
main71402-24011-D2i201810-202301
DK.ROSE/RED,TRIM3#
main71402-24011-D3i202301-202501
DK.ROSE,TRIM3#
main71402-24011-D3i202301-202501
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),DK.ROSE,TRIM3#
main71402-24011-D5i202501
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),DK.ROSE/RED,TRIM3#
main71402-24011-D5i202501
DK.ROSE/RED,TRIM3#
main71402-24011-E0i201609-201802
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),TOPAZ BROWN,TRIM4#
main71402-24011-E0i201609-201802
TOPAZ BROWN,TRIM4#
main71402-24011-E1i201802-201810
TOPAZ BROWN,TRIM4#
main71402-24011-E1i201802-201810
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),TOPAZ BROWN,TRIM4#
main71402-24011-E4i201810-202501
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),OCHER/ROYAL BROWN,TRIM4#
main71402-24011-E4i201810-202501
OCHER/ROYAL BROWN,TRIM4#
main71402-24011-E6i202501
OCHER/ROYAL BROWN,TRIM4#
main71402-24011-E6i202501
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),OCHER/ROYAL BROWN,TRIM4#
main71402-24011-F0i201609-201802
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),CLOVE,TRIM5#
main71402-24011-F0i201609-201802
CLOVE,TRIM5#
main71402-24011-F1i201802-201810
CLOVE,TRIM5#
main71402-24011-F1i201802-201810
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),CLOVE,TRIM5#
main71402-24011-F4i201810-202301
CLOVE/SADDLE TAN,TRIM5#
main71402-24011-F4i201810-202301
SEAT HEATER(FRONT SEAT)-WITH & WITHOUT(SEAT VENTILATION SYSTEM),CLOVE/SADDLE TAN,TRIM5#
main71402-24030-B1i201409-201510
MOON STONE,TRIM1#
main71402-24030-B2i201510-201608
MOON STONE,TRIM1#
main71402-24030-C1i201409-201510
BLACK,TRIM2#
main71402-24030-C2i201510-201608
BLACK,TRIM2#
main71402-24030-E1i201409-201510
TOPAZ BROWN,TRIM4#
main71402-24030-E2i201510-201608
TOPAZ BROWN,TRIM4#
main71402-24030-F1i201409-201510
CLOVE,TRIM5#
main71402-24030-F2i201510-201608
CLOVE,TRIM5#
main71402-24031-B0i201609-201802
MOON STONE,TRIM1#
main71402-24031-B1i201802-201810
MOON STONE,TRIM1#
main71402-24031-C0i201609-201802
BLACK,TRIM2#
main71402-24031-C1i201802-201810
BLACK,TRIM2#
main71402-24031-C3i201810-202501
BLACK/LT.GRAY,TRIM2#
main71402-24031-C5i202501
BLACK/LT.GRAY,TRIM2#
main71402-24031-D2i201810-202301
DK.ROSE/RED,TRIM3#
main71402-24031-D3i202301-202501
DK.ROSE,TRIM3#
main71402-24031-D5i202501
DK.ROSE/RED,TRIM3#
main71402-24031-E0i201609-201802
TOPAZ BROWN,TRIM4#
main71402-24031-E1i201802-201810
TOPAZ BROWN,TRIM4#
main71402-24031-E4i201810-202501
OCHER/ROYAL BROWN,TRIM4#
main71402-24031-E6i202501
OCHER/ROYAL BROWN,TRIM4#
main71402-24031-F0i201609-201802
CLOVE,TRIM5#
main71402-24031-F1i201802-201810
CLOVE,TRIM5#
main71402-24031-F4i201810-202301
CLOVE/SADDLE TAN,TRIM5#
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-24050i201409-201810
OUTER
main71587-24060i201409-201810
INNER
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-24070i201409-201810
OUTER
main71587-24080i201409-201810
INNER
71587HPROTECTOR, FRONT SEATBACK EDGE
main71587-24090i201409-202110
71587JPROTECTOR, FRONT SEATBACK EDGE
main71587-24100i201810
71759BHOOK, FRONT SEATBACK
main71759-47011i201409-201810
71787BAND, FRONT SEATBACK POCKET
main71788-24030-B0i201409-201810
MOON STONE,TRIM1#
main71788-24030-C0i201409-201810
BLACK,TRIM2#
main71788-24030-C2i201810
BLACK,TRIM2#
main71788-24030-D3i201810-202301
DK.ROSE/RED,TRIM3#
main71788-24030-D5i202301
DK.ROSE/RED,TRIM3#
main71788-24030-E1i201810
OCHER/ROYAL BROWN,TRIM4#
main71788-24030-F0i201409-201810
TOPAZ BROWN,TRIM4#
main71788-24030-F1i201409-201810
CLOVE,TRIM5#
main71788-24030-F3i201810-202301
CLOVE/CAMEL YELLOW,TRIM5#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-76010i201409-201810
71849ECAP, RECLINING REMOTE CONTROL, LH
main71849-24010-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71849-24010-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71849-24010-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-24070-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71862-24070-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71862-24070-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-24090-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71875-24090-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71875-24090-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-24110i201409-201810
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-24040-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71876-24040-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71876-24040-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-24060i201409-201810
71910AHEADREST ASSY, FRONT SEAT
main71910-24360-21i201810-202501
BLACK/LT.GRAY,TRIM2#
main71910-24360-50i201810-202301
CLOVE/SADDLE TAN,TRIM5#
main71910-24360-A4i202301-202501
WHITE/LT.GRAY,TRIM0#
main71910-24360-B1i201409-201510
MOON STONE,TRIM1#
main71910-24360-C0i201409-201510
BLACK,TRIM2#
main71910-24360-D3i201510-201802
DK.ROSE,TRIM3#
main71910-24360-D8i201810-202301
DK.ROSE/RED,TRIM3#
main71910-24360-E1i201810-202501
OCHER/ROYAL BROWN,TRIM4#
main71910-24360-F2i201409-201510
TOPAZ BROWN,TRIM4#
main71910-24360-F3i201409-201510
CLOVE,TRIM5#
main71910-24360-X0i202301-202501
DK.ROSE/RED,TRIM30,31
main71910-24360-X1i202301-202501
BLACK/RED,TRIM37,39
main71910-24361-24i202501
BLACK/MUSTARD YELLOW,TRIM5#
main71910-24361-A5i202501
WHITE/LT.GRAY,TRIM0#
main71910-24361-C3i202501
BLACK/LT.GRAY,TRIM2#
main71910-24361-E2i202501
OCHER/ROYAL BROWN,TRIM4#
main71910-24361-X2i202501
RED,TRIM37,39
main71910-24361-X3i202501
DK.ROSE/RED,TRIM30,31
main71910-24400-B0i201510-201802
MOON STONE,TRIM1#
main71910-24400-B1i201802-201810
MOON STONE,TRIM1#
main71910-24400-C0i201510-201802
BLACK,TRIM2#
main71910-24400-C1i201802-201810
BLACK,TRIM2#
main71910-24400-F0i201510-201802
TOPAZ BROWN,TRIM4#
main71910-24400-F1i201510-201802
CLOVE,TRIM5#
main71910-24400-F2i201802-201810
TOPAZ BROWN,TRIM4#
main71910-24400-F3i201802-201810
CLOVE,TRIM5#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-C0i201810-202301
W(LOCK),BLACK,TRIM57,59
main71930-47020-C0i201409-201710
W(LOCK),BLACK,TRIM2#,3#,4#
main71930-47020-C4i201710-201810
W(LOCK),BLACK,TRIM2#,3#,4#
main71930-47020-C4i202301
W(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
main71930-47020-C4i201810-202301
W(LOCK),BLACK,TRIM0#,2#,3#,4#,50,51,53,57,59
main71930-47020-F1i201409-201810
W(LOCK),CLOVE,TRIM5#
main71930-47020-P0i201409-201810
W(LOCK),MOON STONE,TRIM1#
main71931-47020-C0i201810-202301
W/O(LOCK),BLACK,TRIM57,59
main71931-47020-C0i201409-201710
W/O(LOCK),BLACK,TRIM2#,3#,4#
main71931-47020-C4i201810-202301
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,50,51,53,57,59
main71931-47020-C4i201710-201810
W/O(LOCK),BLACK,TRIM2#,3#,4#
main71931-47020-C4i202301
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
main71931-47020-F1i201409-201810
W/O(LOCK),CLOVE,TRIM5#
main71931-47020-P0i201409-201810
W/O(LOCK),MOON STONE,TRIM1#
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-24020-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main72054-24020-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main72054-24020-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
72360CABLE ASSY, RECLINING ADJUSTER EQUALIZING
main72360-24010i201409-201810
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-76010i201409-201810
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-53030i201409-201810
82711FCLAMP, WIRING HARNESS
main82711-12120i201409-201810
82711GCLAMP, WIRING HARNESS
main82711-34310i201409-201810
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-24010
main85867-78010
main85867-78020
main85867-24020
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
9010510301
main90105-10301
9016740044
main90167-40044
9324915006
main93249-15006
9356054014
main93560-54014
9417060600
main94170-60600
9418560600
main94185-60600

32 parts on this diagram · 5 diagrams in section
