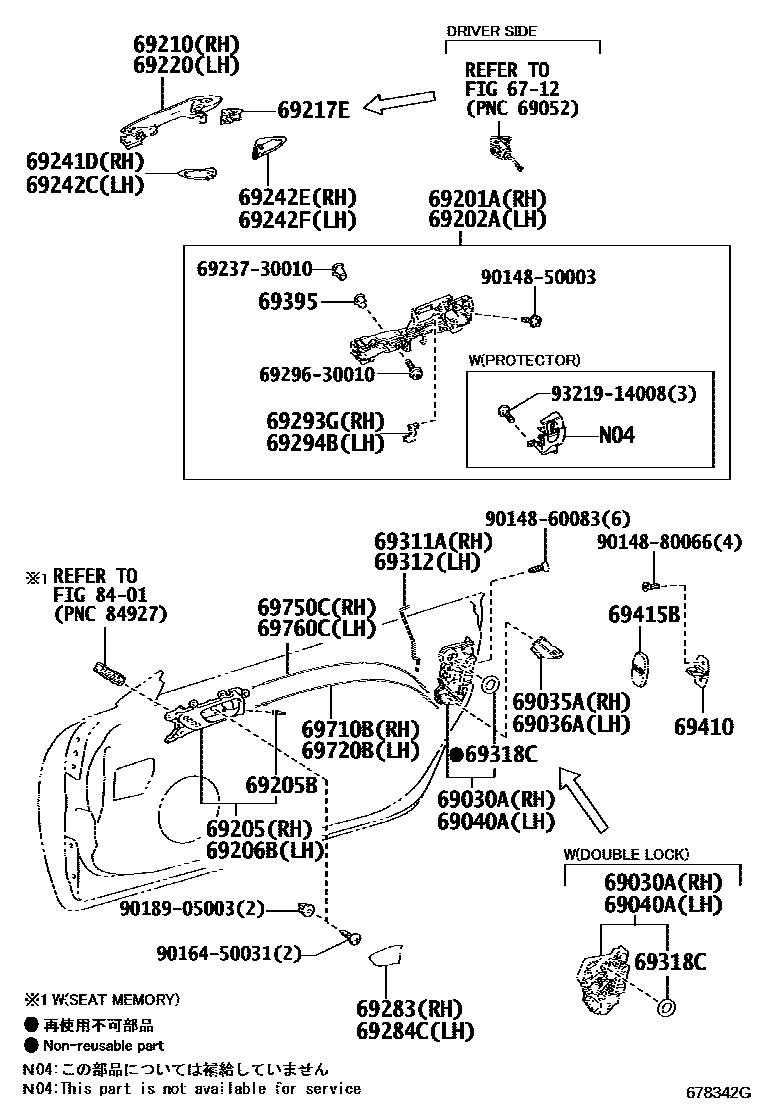

FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
KOREA SPEC
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
KOREA SPEC
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
KOREA SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#,5#
"F SPORT",BLACK,TRIM0#,1#,2#,3#,4#,5#; "F SPORT",BLACK,TRIM1#,2#,3#,4#,5#; "VERSION L",BLACK,TRIM0#,1#,2#,3#,4#,5#; "VERSION L",BLACK,TRIM1#,2#,3#,4#,5#
"F SPORT"&PREMIUM PACKAGE,BLACK,TRIM0#,2#,3#,4#,5#; PREMIUM&PREMIUM PACKAGE,BLACK,TRIM0#,2#,3#,4#,5#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8 ,2YX
BLACK,212
GRAPHITE BLACK GF.,223
STARLIGHT BLACK GF.,217
RADIANT RED CONTRAST LAYE,3T5
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
RED,3T5
ORANGE,4W7
BLUE,8X1
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
WHITE PEARL CS.,077
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8 ,2YX
BLACK,212
GRAPHITE BLACK GF.,223
STARLIGHT BLACK GF.,217
RADIANT RED CONTRAST LAYE,3T5
LAVA ORANGE CS.,4W7
NAPLES YELLOW,5C1
HEAT BLUE CONTRAST LAYERI,8X1
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
RED,3T5
ORANGE,4W7
BLUE,8X1
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,3#,4#,5#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,3#,4#,5#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
KOREA SPEC
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
KOREA SPEC
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
KOREA SPEC
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
KOREA SPEC
8401SWITCH & RELAY & COMPUTER
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
9321914008
main93219-14008
40 parts on this diagram · 1 diagram in section
