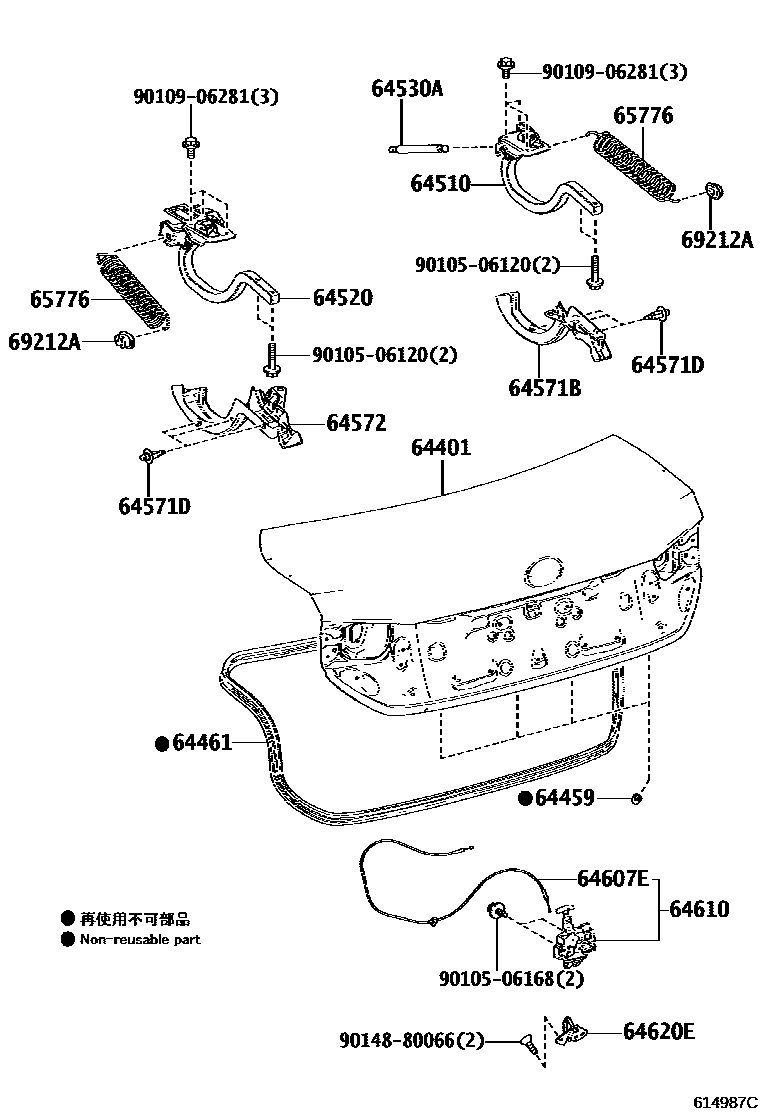

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-24250iGSC1#201409-201810

KOREA SPEC

main64401-24250iASC10,GSC1#201810

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116iGSC1#201409-201810

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-24060iGSC1#201409-201810

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-24040iGSC1#201409-201810

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-24040iGSC1#201409-201810

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W140iGSC1#201409-201810

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-24041-C0iGSC1#201409-201810

BLACK,TRIM1#,2#,3#,4#,5#

main64571-24041-C0iASC10,GSC1#201810

BLACK,TRIM0#,2#,3#,4#,5#

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-07076-C0iGSC10201409-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C0iGSC10201409-201703

BLACK,TRIM1#,2#,3#,4#,5#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iASC10,GSC1#201703-201810

BLACK,TRIM1#,2#,3#,4#,5#

sub90467-07041

sub90467-07076

sub90467-A0016

main90467-07076-C7iASC10,GSC1#201810

BLACK,TRIM0#,2#,3#,4#,5#

sub90467-07041

sub90467-07076

sub90467-A0016

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-24011-C0iGSC1#201409-201810

BLACK,TRIM1#,2#,3#,4#,5#

main64572-24011-C0iASC10,GSC1#201810

BLACK,TRIM0#,2#,3#,4#,5#

64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-24080iGSC1#201409-201810

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-24050iGSC1#201409-201810

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iGSC1#201409-201810

65776SPRING, BACK DOOR STAY

main65776-24010iGSC1#201409-201810

69212ABUSH

main69358-24010iGSC1#201409-201810

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9014880066

main90148-80066

18 parts on this diagram · 1 diagram in section
