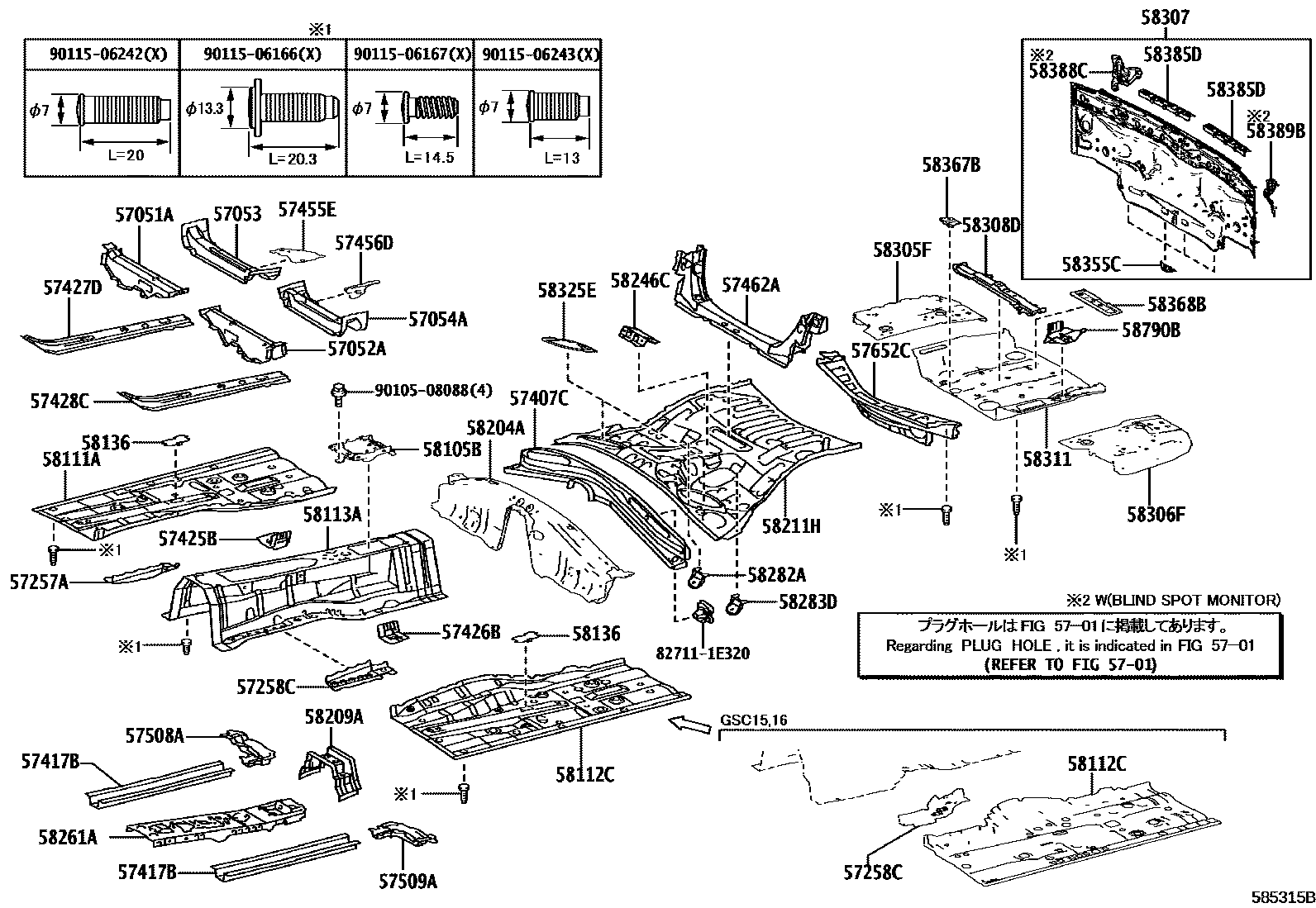

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1FLOOR UNDER COVER

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-53030iASC10,GSC1#201510-201810

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-24020iGSC15,16201510-201810

main57052-53030iGSC10201409-201510

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30080iASC10,GSC1#201510-201810

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30080iASC10,GSC1#201510-201810

57257ABRACKET, ENGINE REAR MOUNTING MEMBER, RH

main57257-30042iGSC10201409-201510

main57257-30070iGSC15201409-201510

57258CBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57208-30030iGSC15,16201510-201810

main57258-30091iASC10,GSC10201810

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-53010iGSC1#201409-201510

main57461-30121iASC10,GSC1#202009

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57603-24010×2iGSC1#201409-201510

57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-30030iASC10,GSC1#201510-201810

57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-30030iGSC1#201409-201510

57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-30041iGSC1#201409-201510

57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57427-30041iGSC1#201409-201510

57455EPLATE, FRONT FLOOR CROSSMEMBER, NO.3 RH

main57455-30060iASC10,GSC1#201810

57456DPLATE, FRONT FLOOR CROSSMEMBER, NO.3 LH

main57456-30040iASC10,GSC1#201510-201810

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-30080iASC10,GSC1#201801-201803

main57405-30081iASC10,GSC1#201810

main57405-53020iGSC1#201409-201510

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-30031iASC10,GSC1#201510-201810

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-30031iGSC1#201409-201510

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30140iGSC1#201409-201510

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-53020iASC10,GSC1#201810

58111APAN, FRONT FLOOR, RH

main58111-24060iASC10,GSC1#201510-201810

58112CPAN, FRONT FLOOR, LH

main58112-24040iGSC10201409-201510

main58112-24050iGSC15201409-201510

58113APANEL, FRONT FLOOR, CENTER

main58113-53030iGSC10201409-201510

main58113-53040iGSC15,16201510-201810

58136COVER, FRONT FLOOR HOLE

main58136-51010×2iASC10,GSC1#201810

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-24010iGSC1#201409-201510

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30050iGSC1#201409-201510

58211HPAN, CENTER FLOOR

main58211-30400iGSC1#201409-201510

main58211-30401iASC10,GSC1#201707-201810

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30020iGSC1#201409-201510

58261ACOVER, TRANSMISSION

main58261-30231iASC10,GSC10201810-202009

main58261-30251iGSC15201409-201502

main58261-53070iGSC15201503-201510

main58261-53080iASC10,GSC10202009

main58261-53090iGSC15,16202009

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-30040iGSC1#201409-201510

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-30030iASC10,GSC1#201810

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-53010iGSC1#201409-201510

main58305-53011iASC10,GSC1#201711-201810

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-53010iGSC1#201409-201510

main58306-53011iASC10,GSC1#201711-201810

main58306-53020iGSC10201409-201510

STEERING-ELECTRIC POWER STEERING(VGRS)

main58306-53021iGSC10201810

STEERING-ELECTRIC POWER STEERING(VGRS)

58307PANEL SUB-ASSY, BODY LOWER BACK

main58302-24030supersedes 58307-24120iASC10,GSC1#202111

main58302-24010supersedes 58307-24080iASC10,GSC1#201510-201810

BLIND SPOT MONITOR-WITH

58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER

main58308-30030iGSC1#201409-201510

main58308-53020iASC10,GSC1#202009

58311PAN, REAR FLOOR

main58311-53040iASC10,GSC1#201510-201810

main58311-53070iASC10,GSC1#202009

main58311-24060iGSC10202009

STEERING-ELECTRIC POWER STEERING(VGRS)

main58311-53060iGSC10201409-201510

STEERING-ELECTRIC POWER STEERING(VGRS)

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30030×2iGSC1#201409-201510

58355CBRACKET, REAR BUMPER ARM

main58355-53030×4iGSC1#201409-201510

58367BBRACKET, FUEL TUBE

main58367-47020iASC10,GSC1#202009

58368BBRACKET, FUEL TUBE, NO.2

main58368-53010iASC10,GSC1#202009

58385DBRACKET, REAR BUMPER COVER

main58385-30080×2iGSC1#201409-201510

58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH

main58388-24020iASC10,GSC1#202111

main58388-24010iGSC1#201409-201510

BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)

58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH

main58389-24020iASC10,GSC1#202111

main58389-24010iGSC1#201409-201510

BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)

58790BCARRIER ASSY, JACK

main58790-30030iGSC1#201409-201510

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010508088

main90105-08088

9011506166

main90115-06166

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

50 parts on this diagram · 2 diagrams in section
