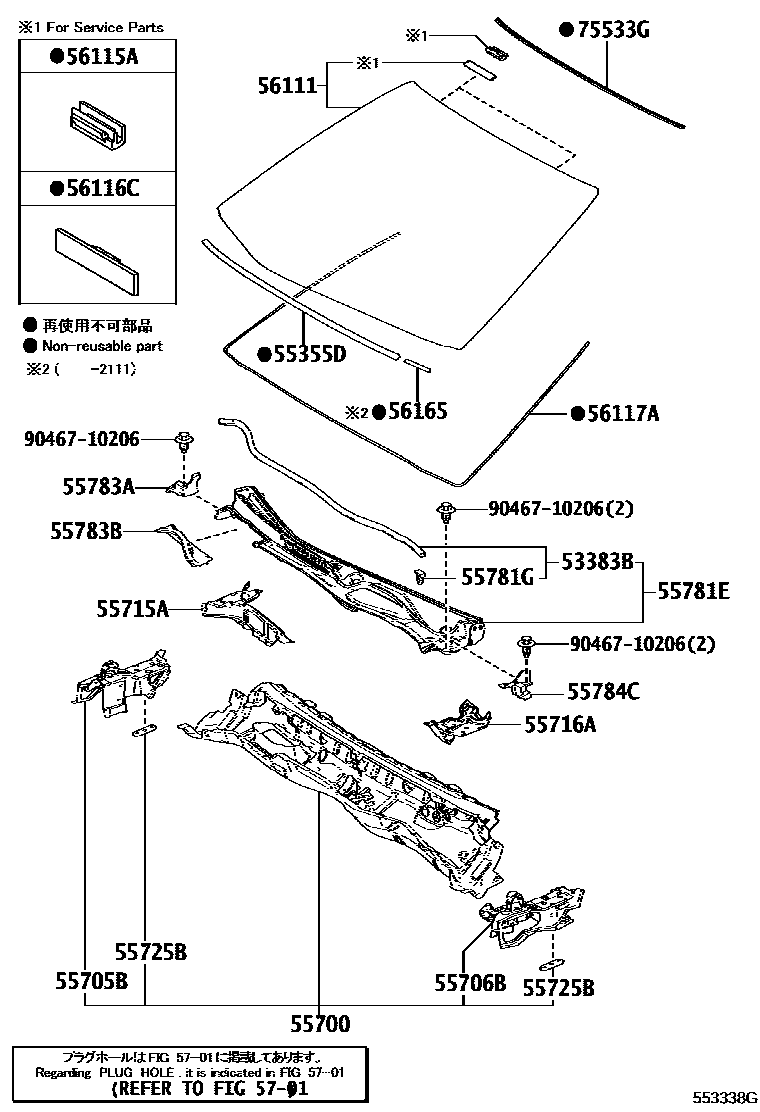

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-24060i201409-201510

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-53090i201409-201510

55700PANEL ASSY, FRONT

main55700-24140i201510-201810

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-24040i201409-201510

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-24040i201810

55715ABRACE, COWL TOP TO APRON, RH

main55715-24070i201510-201810

55716ABRACE, COWL TOP TO APRON, LH

main55716-24070i201810

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2i201409-201510

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-24060supersedes 55708-24050i201510-201810

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×8i201510-201810

55783APAD, COWL TOP SILENCER

main55785-24030i201409-201510

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-24040i201810

55784CPAD, COWL TOP SILENCER, LH

main55786-24020i201810

56111GLASS, WINDSHIELD

main56101-24905supersedes 56101-24904i201510-201711

"VERSION L"; CANADA SPEC&"F SPORT"; KOREA SPEC&"F SPORT"&ELECTRO MULTI VISION-WITH(KOREA SPEC)

main56101-24906supersedes 56101-24904i201409-201510

"VERSION L"&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

main56101-24907supersedes 56101-24904i201510-201711

WINDSHIELD DEICER-WITH

main56101-24908supersedes 56101-24904i201510-201711

"VERSION L"&WINDSHIELD DEICER-WITH; CANADA SPEC&"F SPORT"&WINDSHIELD DEICER-WITH; KOREA SPEC&"F SPORT"&WINDSHIELD DEICER-WITH&ELECTRO MULTI VISION-WITH(KOREA SPEC)

main56101-24909supersedes 56101-24904i201409-201510

"VERSION L"&WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)

main56101-24920i201810-202009

KOREA SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITHOUT&ELECTRO MULTI VISION-WITH(KOREASPEC); KOREA SPEC&"VERSION L"&PRE-COLLISION SYSTEM-WITHOUT&ELECTRO MULTI VISION-WITH(KOREA SPEC)

main56101-24921supersedes 56101-24926i201711-201810

"VERSION L"; CANADA SPEC&"F SPORT"; KOREA SPEC&"F SPORT"&ELECTRO MULTI VISION-WITH(KOREA SPEC)

main56101-24922i201711-201810

KOREA SPEC&"F SPORT"&PRE-COLLISION SYSTEM-WITHOUT&WINDSHIELD DEICER-WITH&ELECTRO MULTI VISION-WITH(KOREA SPEC); KOREA SPEC&"VERSION L"&PRE-COLLISION SYSTEM-WITHOUT&WINDSHIELD DEICER-WITH&ELECTROMULTI VISION-WITH(KOREA SPEC)

main56101-24923i202111-202301

"F SPORT"& BLACK EDITION 2 PACKAGE&COLD AREA SPEC; "F SPORT"&PREMIUM PACKAGE&COLD AREA SPEC; COLD AREA SPEC; PREMIUM&PREMIUM PACKAGE&COLD AREA SPEC

main56101-24925i201712-201810

WINDSHIELD DEICER-WITH

main56101-24932supersedes 56101-24933i202301

"F SPORT"&PREMIUM PACKAGE&COLD AREA SPEC; COLD AREA SPEC; PREMIUM&PREMIUM PACKAGE&COLD AREA SPEC

main56101-24934supersedes 56101-24933i202301

"F SPORT"&PREMIUM PACKAGE; PREMIUM&PREMIUM PACKAGE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120i201409-201510

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i201409-201510

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010i201409-201510

*D,L=2762; *D,L=2762,"VERSION L"; *D,L=2762,"VERSION L"&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT); *D,L=2762,"VERSION L"&WINDSHIELD DEICER-WITH; *D,L=2762,"VERSION L"&WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT); *D,L=2762,KOREA SPEC&"F SPORT"&ELECTRO MULTI VISION-WITH(KOREA SPEC); *D,L=2762,KOREA SPEC&"F SPORT"&WINDSHIELD DEICER-WITH&ELECTRO MULTI VISION-WITH(KOREA SPEC); *D,L=2762,WINDSHIELD DEICER-WITH

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-30010i201409-201510

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-24100i201409-201510

9046710206

main90467-10206

21 parts on this diagram · 1 diagram in section
