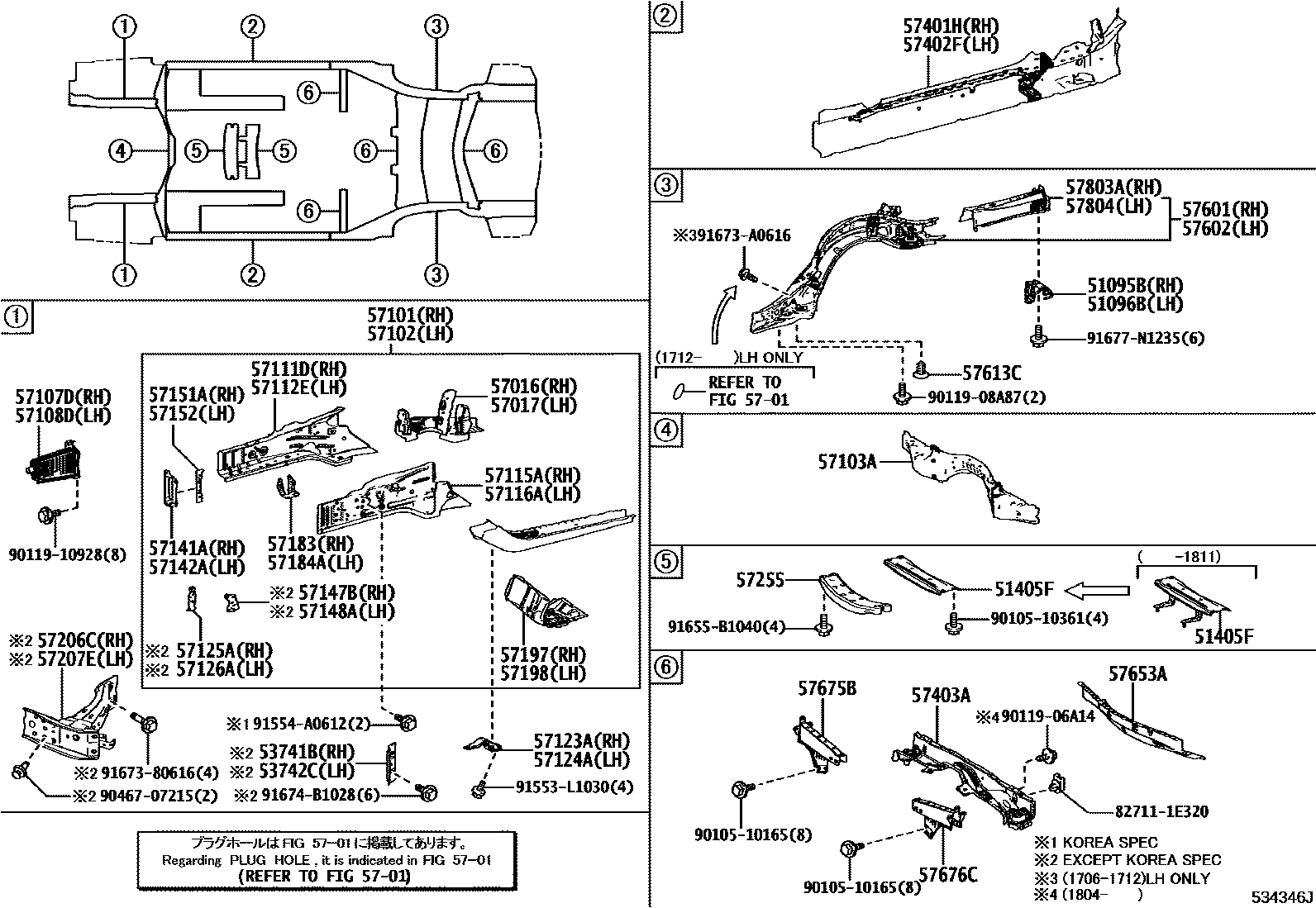

FLOOR SIDE MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-24010iGSC1#201409-201810

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-24010iGSC1#201409-201810

51405FBRACE SUB-ASSY, ENGINE UNDER

main51405-30040iGSC10201409-201805

main51405-30041iASC10,GSC10201806-201811

main51449-30111iASC10,GSC10201811

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-24010iGSC1#201409-201810

53742CPLATE, FENDER APRON REINFORCE, LH

main53742-24010iGSC1#201409-201810

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30040iASC10,GSC10201409-201810

main57016-30051iGSC15,16201409-201810

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30040iASC10,GSC10201409-201810

main57017-30051iGSC15,16201409-201810

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-24100iASC10,GSC10201409-201909

main57101-24101iASC10,GSC10201910

main57101-24110iGSC15,16201409-201909

main57101-24111iGSC15,16201910

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-24080iASC10,GSC10201409-201909

main57102-24081iASC10,GSC10201910

main57102-24110iGSC15201409-201909

main57102-24111iGSC15,16201910

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-30031iGSC1#201409-201810

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-24030iGSC1#201409-201810

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-24030iGSC1#201409-201810

57111DMEMBER, FRONT SIDE, INNER RH

main57111-30082iASC10,GSC10201409-201810

main57111-30092iGSC15,16201409-201810

57112EMEMBER, FRONT SIDE, INNER LH

main57112-30082iASC10,GSC10201409-201810

main57112-30102iGSC15,16201409-201810

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-24060iASC10,GSC1#201409-201810

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-24040iASC10,GSC1#201409-201810

57123AREINFORCEMENT, STRUT BAR BRACKET, RH

main57305-30020iGSC15,16201409-201810

main57305-30040iASC10,GSC10201409-201711

main57305-30041iASC10,GSC10201712-201810

57124AREINFORCEMENT, STRUT BAR BRACKET, LH

main57306-30020iGSC15,16201409-201810

main57306-30040iGSC10201409-201711

main57306-30041iASC10,GSC10201712-201810

57125APLATE, STRUT BAR BRACKET, RH

main57125-24020iGSC1#201409-201810

57126APLATE, STRUT BAR BRACKET, LH

main57126-24030iGSC1#201409-201810

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-30040iGSC1#201409-201810

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-30040iGSC1#201409-201810

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-24020iGSC1#201409-201810

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-24020iASC10,GSC1#201409-201810

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-30040iGSC1#201409-201810

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-30040iGSC1#201409-201810

57183PLATE, FRONT SIDE MEMBER, NO.4 RH

main57183-30030iGSC1#201409-201810

57184APLATE, FRONT SIDE MEMBER, NO.4 LH

main57184-30020iGSC1#201409-201810

57197BOX, TORQUE, FRONT RH

main57105-24040iGSC1#201409-201810

57198BOX, TORQUE, FRONT LH

main57106-24040iGSC1#201409-201810

57206CSPACER SUB-ASSY, CENTER ARM, RH

main57206-24010iGSC1#201409-201810

57207ESPACER SUB-ASSY, CENTER ARM, LH

main57207-24010iASC10,GSC1#201409-201810

57255MEMBER, ENGINE REAR MOUNTING

main57255-30080iGSC10201409-201810

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-24050iGSC1#201409-201810

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-24050iASC10,GSC1#201409-201810

57403AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57809-24010iASC10,GSC1#201804-201810

main57809-30020iGSC1#201409-201707

main57809-30021iASC10,GSC1#201708-201804

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-53070iGSC1#201409-201810

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-53110iASC10,GSC1#201409-201810

57613CCLIP, REAR FLOOR SIDE MEMBER

main90467-08186-C0iGSC1#201409-201610

BLACK

main90467-08186-C3iASC10,GSC1#201610-201810

BLACK

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-30150iGSC1#201409-201712

main57653-30151iASC10,GSC1#201801-201810

57675BREINFORCEMENT, REAR FLOOR CROSS, NO.1 RH

main57505-24010iGSC1#201409-201810

57676CREINFORCEMENT, REAR FLOOR CROSS, NO.1 LH

main57506-24010iGSC1#201409-201810

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-53040iGSC1#201409-201810

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-53040iGSC1#201409-201810

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9010510165

main90105-10165

9010510361

main90105-10361

9011906A14

main90119-06A14

9011908A87

main90119-08A87

9011910928

main90119-10928

9046707215

main90467-07215

91553L1030

main91553-L1030

91554A0612

main91554-A0612

91655B1040

main91655-B1040

9167380616

main91673-80616

91673A0616

main91673-A0616

91674B1028

main91674-B1028

91677N1235

main91677-N1235

59 parts on this diagram · 2 diagrams in section
