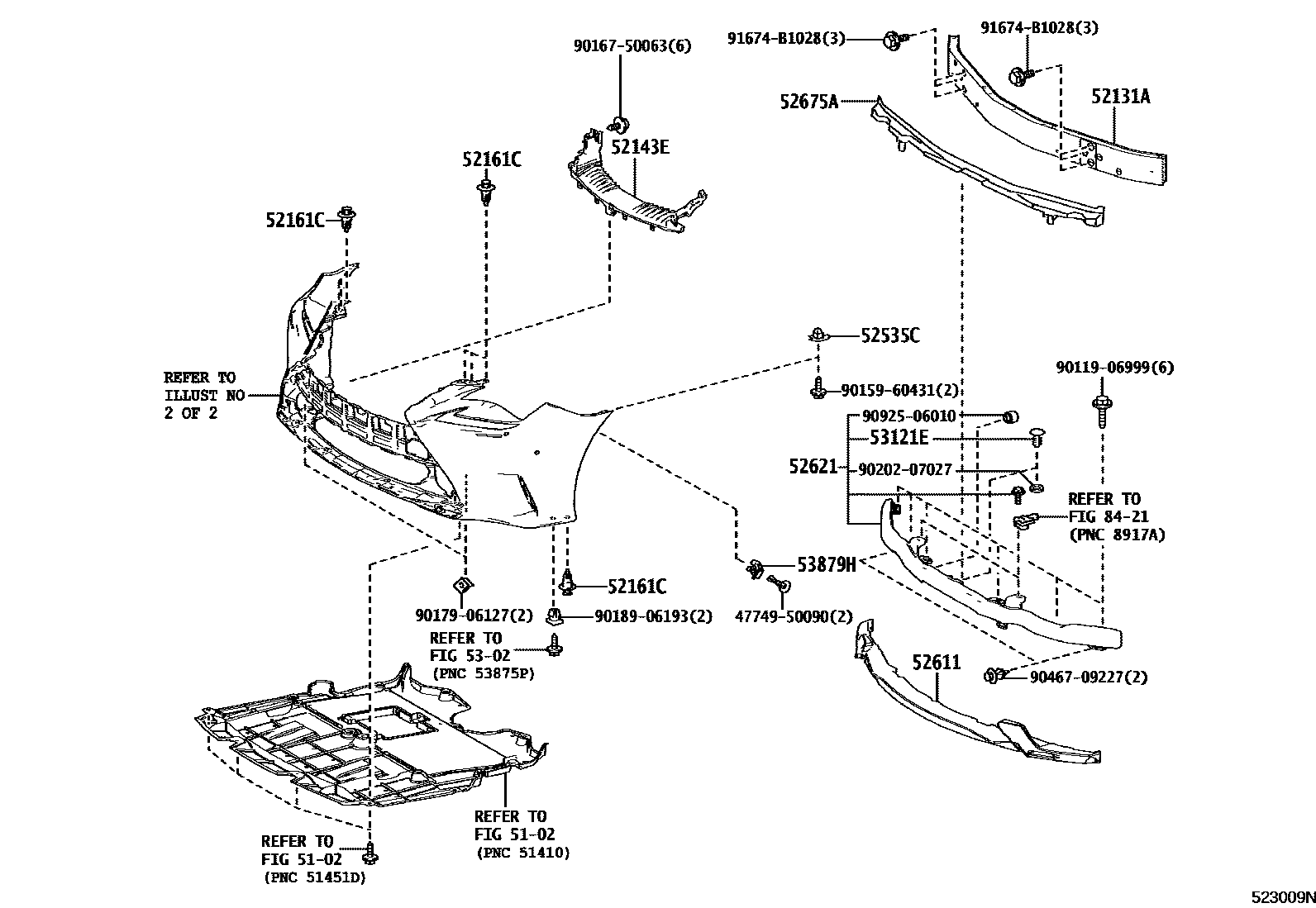

FRONT BUMPER & BUMPER STAY

0001 1KOREA SPEC 0002 1KOREA SPEC 0003 1 0004 1 0005 1KOREA SPEC, F SPORT 0006 1KOREA SPEC, F SPORT 0007 1F SPORT 0008 1F SPORT 0009 1 0010 1

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52131AREINFORCEMENT, FRONT BUMPER

main52131-24090iGSC1#201409-201510

CANADA SPEC

main52131-24090iGSC1#201409-201510

KOREA SPEC

main52131-24090iASC10,GSC1#201510-201810

main52131-24170iASC10,GSC1#201810

CANADA SPEC

52143EPLATE, FRONT ENERGY ABSORBER MOUNTING

main52143-24050iGSC1#201409-201810

main52143-24060iASC10,GSC1#201810

52161CPIECE, FRONT BUMPER

main52161-16010iASC10,GSC1#201409-201810

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-24040iGSC1#201409-201810

main52535-24060iASC10,GSC1#201810

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iGSC1#201409-201810

52611ABSORBER, FRONT BUMPER ENERGY

main52611-24090iGSC1#201409-201810

main52611-24120iASC10,GSC1#201810

52621CHAMBER, POP UP HOOD

main52620-24020iGSC1#201409-201810

main52620-24050iASC10,GSC1#201810

52675ASUPPORT, FRONT BUMPER SIDE, NO.1

main52677-24020iGSC1#201409-201810

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-08186-C0iGSC1#201409-201610

BLACK

main90467-08186-C3iASC10,GSC1#201610-201810

BLACK

53879HRETAINER, FRONT FENDER LINER

main53879-30050iGSC1#201409-201810

main53879-30060iASC10,GSC1#201810

8421AIR BAG

→ Go to FIG 84-21

4774950090CLIP, PIN HOLD

main47749-50090

9011906999

main90119-06999

9015960431

main90159-60431

9016750063

main90167-50063

9017906127

main90179-06127

9018906193

main90189-06193

9020207027

main90202-07027

9046709227

main90467-09227

9092506010

main90925-06010

91674B1028

main91674-B1028

23 parts on this diagram · 10 diagrams in section
