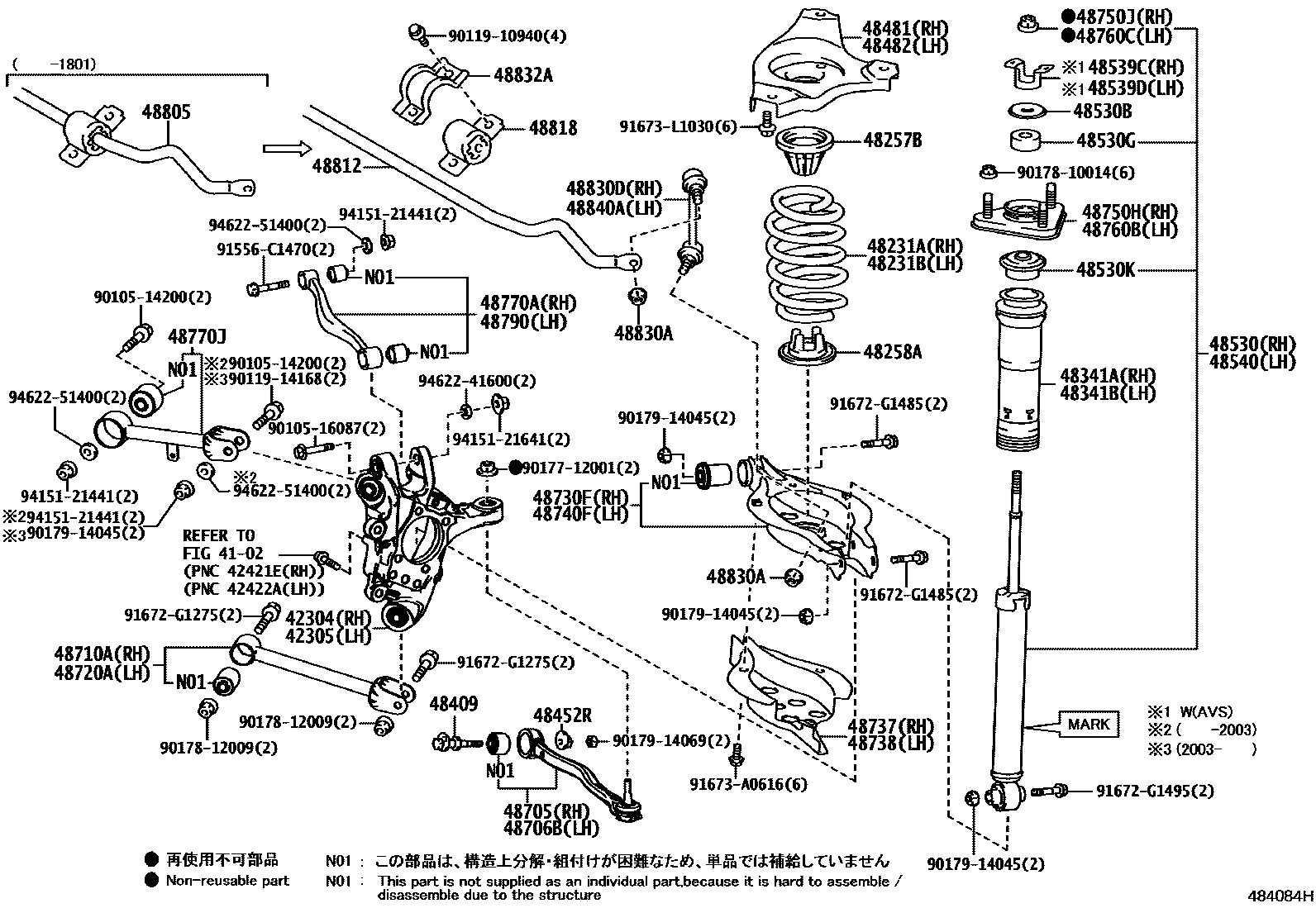

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1W(LDH)

4102

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30130iGSC1#201409-201810

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30130iASC10,GSC1#201409-201810

48231ASPRING, COIL, REAR RH

main48231-24310iGSC10201409-202001

sub48231-24311

main48231-24311iASC10,GSC10202002

main48231-24330iGSC15,16201409-202001

sub48231-24331

main48231-24331iGSC15,16202002

48231BSPRING, COIL, REAR LH

main48231-24310iGSC10201409-202001

sub48231-24311

main48231-24311iASC10,GSC10202002

main48231-24330iGSC15201409-202001

sub48231-24331

main48231-24331iGSC15,16202002

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-30080iGSC1#201409-201810

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-30050iGSC1#201409-201810

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30160iGSC1#201409-202301

main48341-53060iASC10,GSC10202301

main48341-53070iGSC15,16202301

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30160iGSC1#201409-202301

main48341-53060iASC10,GSC10202301

main48341-53070iGSC15,16202301

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30031iGSC1#201409-201810

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30051iASC10,GSC1#201409-201810

48481SEAT, REAR SPRING, UPPER

main48481-30010iASC10,GSC1#201409-201810

48482SEAT, REAR SPRING, UPPER LH

main48482-30030iASC10,GSC1#201409-201810

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80735iGSC10201409-201801

MARK 48530-24320

sub48530-80829

main48530-80738iGSC15,16201409-201801

MARK 48530-24350

sub48530-80831

main48530-80829iASC10,GSC10201801-201810

MARK 48530-24321

main48530-80831iGSC15,16201801-201810

MARK 48530-24351

main48530-80888iASC10,GSC10201810-202009

MARK 48530-24410

main48530-80890iGSC15,16201810-202009

MARK 48530-24430

main48530-80A76iASC10,GSC10202009-202210

MARK 48530-24411

main48530-80A77iGSC15,16202009-202210

MARK 48530-24431

main48530-80B47iASC10,GSC10202210

MARK 48530-24470

main48530-80B49iGSC15,16202210

MARK 48530-24490

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iASC10,GSC1#201409-201810

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01101iGSC1#201409-202301

main90948-01104iASC10,GSC1#202301

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main48752-53010iASC10,GSC1#202301

main90948-01102iASC10,GSC1#201409-202301

48539CBRACKET, ACTUATOR SUPPORT, REAR RH

48539DBRACKET, ACTUATOR SUPPORT, REAR LH

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80735iGSC10201409-201801

MARK 48530-24320

sub48530-80829

main48530-80738iGSC15201409-201801

MARK 48530-24350

sub48530-80831

main48530-80829iASC10,GSC10201801-201810

MARK 48530-24321

main48530-80831iGSC15,16201801-201810

MARK 48530-24351

main48530-80888iASC10,GSC10201810-202009

MARK 48530-24410

main48530-80890iGSC15,16201810-202009

MARK 48530-24430

main48530-80A76iASC10,GSC10202009-202210

MARK 48530-24411

main48530-80A77iGSC15,16202009-202210

MARK 48530-24431

main48530-80B47iASC10,GSC10202210

MARK 48530-24470

main48530-80B49iGSC15,16202210

MARK 48530-24490

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30120iGSC10201409-201810

STEERING-ELECTRIC POWER STEERING(VGRS)

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30050iGSC1#201409-201810

STEERING-ELECTRIC POWER STEERING(VGRS)

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30240iGSC1#201409-201810

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30240iGSC1#201409-201810

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30140iGSC1#201409-201810

48737COVER, REAR SUSPENSION ARM, RH

main48737-30020iGSC1#201409-202301

48738COVER, REAR SUSPENSION ARM, LH

main48738-30020iGSC1#201409-202301

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30140iGSC1#201409-201810

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30200iGSC1#201409-201810

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iGSC1#201409-201810

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30200iGSC1#201409-201810

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iASC10,GSC1#201409-201810

48770AARM ASSY, UPPER CONTROL, REAR RH

main48790-30130iASC10,GSC1#201409-202009

main48790-53060iASC10,GSC1#202009

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30150iGSC1#201409-201606

sub48770-30151

main48770-30151iASC10,GSC1#201607-202105

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-30140iASC10,GSC1#201409-202009

main48790-53050iASC10,GSC1#202009

48805BAR SUB-ASSY, REAR STABILIZER

main48805-24040iGSC10201409-201707

sub48805-24041

main48805-24041iASC10,GSC10201708-201801

sub48812-24152

sub48818-24040

main48805-24050iGSC15,16201409-201707

sub48805-24051

main48805-24051iGSC15,16201708-201801

sub48812-53122

sub48818-24050

48812BAR, STABILIZER, REAR

main48812-24152iASC10,GSC10201801-202009

main48812-53122iGSC15,16201801-201810

main48812-53140iASC10,GSC10202009

48818BUSH, STABILIZER, REAR

main48818-24040iASC10,GSC10201801-202009

main48818-24050iGSC15,16201801-201810

main48818-53090iASC10,GSC10202009

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iGSC1#201409-201810

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30100iGSC1#201409-201810

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-30070iGSC1#201409-201810

48840ALINK ASSY, REAR STABILIZER, LH

main48840-30030iGSC1#201409-201810

9010514200

main90105-14200

9010516087

main90105-16087

9011910940

main90119-10940

9011914168

main90119-14168

9017712001

main90177-12001

9017810014

main90178-10014

9017812009

main90178-12009

9017914045

main90179-14045

9017914069

main90179-14069

91556C1470

main91556-C1470

91672G1275

main91672-G1275

91672G1485

main91672-G1485

91672G1495

main91672-G1495

91673A0616

main91673-A0616

91673L1030

main91673-L1030

9415121441

main94151-21441

9415121641

main94151-21641

9462241600

main94622-41600

9462251400

main94622-51400

61 parts on this diagram · 2 diagrams in section
