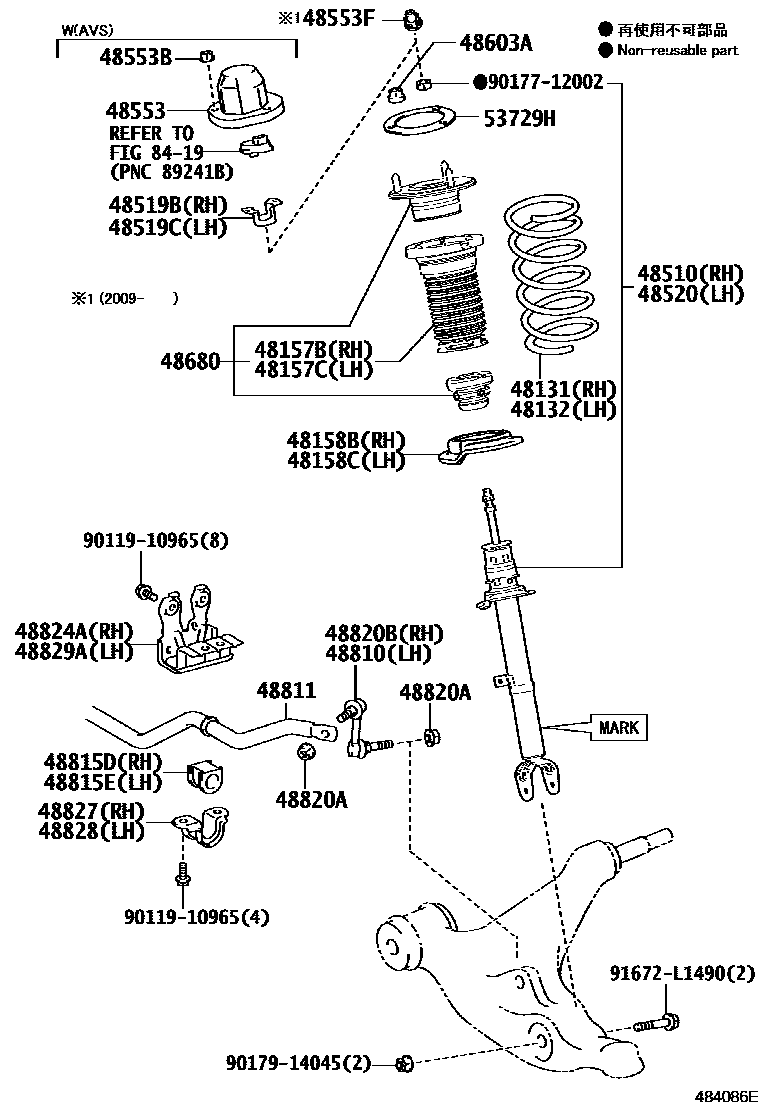

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-24610iASC10,GSC10201810-202001

main48131-24611iASC10,GSC10202002

main48131-24620iGSC15201409-201510

main48131-24621iGSC15,16202002

48132SPRING, FRONT COIL, LH

main48131-24610iGSC10201409-201510

main48131-24611iASC10,GSC10202002

main48131-24620iGSC15,16201510-201810

main48131-24621iGSC15,16202002

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-24020iGSC15,16201510-201810

main48157-30090iASC10,GSC10201810

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-24020iGSC15,16201810

main48157-30090iASC10,GSC10201810

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iGSC1#201409-201510

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iGSC1#201409-201510

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80A62iASC10,GSC10201810-202009

MARK 48510-24450

main48510-80A64iGSC15,16201810-202009

MARK 48510-24460

main48510-80B61iASC10,GSC10202009-202210

MARK 48510-24451

main48510-80B62iGSC15,16202009-202210

MARK 48510-24461

main48510-80724supersedes 48510-80C20iASC10,GSC10201510-201801

MARK 48510-24380,"F SPORT"

main48510-80726supersedes 48510-80C22iGSC15,16201510-201801

MARK 48510-24400,"F SPORT"

main48510-80A06supersedes 48510-80C20iASC10,GSC10201801-201810

MARK 48510-24381,"F SPORT"

main48510-80A08supersedes 48510-80C22iGSC15,16201801-201810

MARK 48510-24401,"F SPORT"

main48510-80A63supersedes 48510-80C20iASC10,GSC10201810-202210

MARK 48510-24470,"F SPORT"

main48510-80A65supersedes 48510-80C22iGSC15,16201810-202210

MARK 48510-24480,"F SPORT"

main48510-80C21supersedes 48510-80C20iASC10,GSC10202210

MARK 48510-24510,"F SPORT"

main48510-80C23supersedes 48510-80C22iGSC15,16202210

MARK 48510-24530,"F SPORT"

48519BBRACKET, ACTUATOR SUPPORT, FRONT RH

main48519-30030iGSC1#201409-201510

"F SPORT"

48519CBRACKET, ACTUATOR SUPPORT, FRONT LH

main48519-30030iGSC1#201409-201510

"F SPORT"

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80622iASC10,GSC10201810-202009

MARK 48520-24180

main48520-80624iGSC15,16201810-202009

MARK 48520-24190

main48520-80719iASC10,GSC10202009-202210

MARK 48520-24181

main48520-80720iGSC15,16202009-202210

MARK 48520-24191

main48520-80408supersedes 48520-80770iASC10,GSC10201510-201801

MARK 48520-24110,"F SPORT"

main48520-80410supersedes 48520-80409iGSC15201409-201510

MARK 48520-24130,"F SPORT"

main48520-80572supersedes 48520-80770iASC10,GSC10201801-201810

MARK 48520-24111,"F SPORT"

main48520-80574supersedes 48520-80772iGSC15,16201801-201810

MARK 48520-24131,"F SPORT"

main48520-80623supersedes 48520-80770iASC10,GSC10201810-202210

MARK 48520-24200,"F SPORT"

main48520-80625supersedes 48520-80772iGSC15,16201810-202210

MARK 48520-24210,"F SPORT"

main48520-80771supersedes 48520-80770iASC10,GSC10202210

MARK 48520-24240,"F SPORT"

main48520-80773supersedes 48520-80772iGSC15,16202210

MARK 48520-24260,"F SPORT"

48553CAP, SHOCK ABSORBER, UPPER

main48553-30100×2iGSC1#201409-201510

"F SPORT"

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iGSC1#201409-201510

"F SPORT"

48553FCAP

main48553-52030×2iASC10,GSC1#202009

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iASC10,GSC1#201810

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-24100×2supersedes 48680-24090iASC10,GSC10201810-202301

"F SPORT"

main48680-24120×2supersedes 48680-24110iGSC15,16201510-201810

"F SPORT"

main48680-53110×2supersedes 48680-53100iASC10,GSC10202301

"F SPORT"

main48680-53130×2supersedes 48680-53120iGSC15,16202301

"F SPORT"

48810LINK ASSY, FRONT STABILIZER, LH

main48810-30080iGSC15201409-201510

main48810-30090iASC10,GSC10201510-201810

48811BAR, STABILIZER, FRONT

main48804-30010iGSC15,16201510-201810

main48811-24140iGSC10201409-201510

main48811-30840iASC10,GSC10201810

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-24100iASC10,GSC10201510-201810

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-24100iGSC10201409-201510

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iGSC1#201409-201510

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-30100iGSC15,16201510-201810

main48820-30110iASC10,GSC10201510-201810

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30130iGSC10201409-201510

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-30150iGSC10201409-201510

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-30150iGSC10201409-201510

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30130iGSC10201409-201510

53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3

main53729-53020×2iGSC1#201409-201510

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9011910965

main90119-10965

9017712002

main90177-12002

9017914045

main90179-14045

91672L1490

main91672-L1490

31 parts on this diagram · 2 diagrams in section
