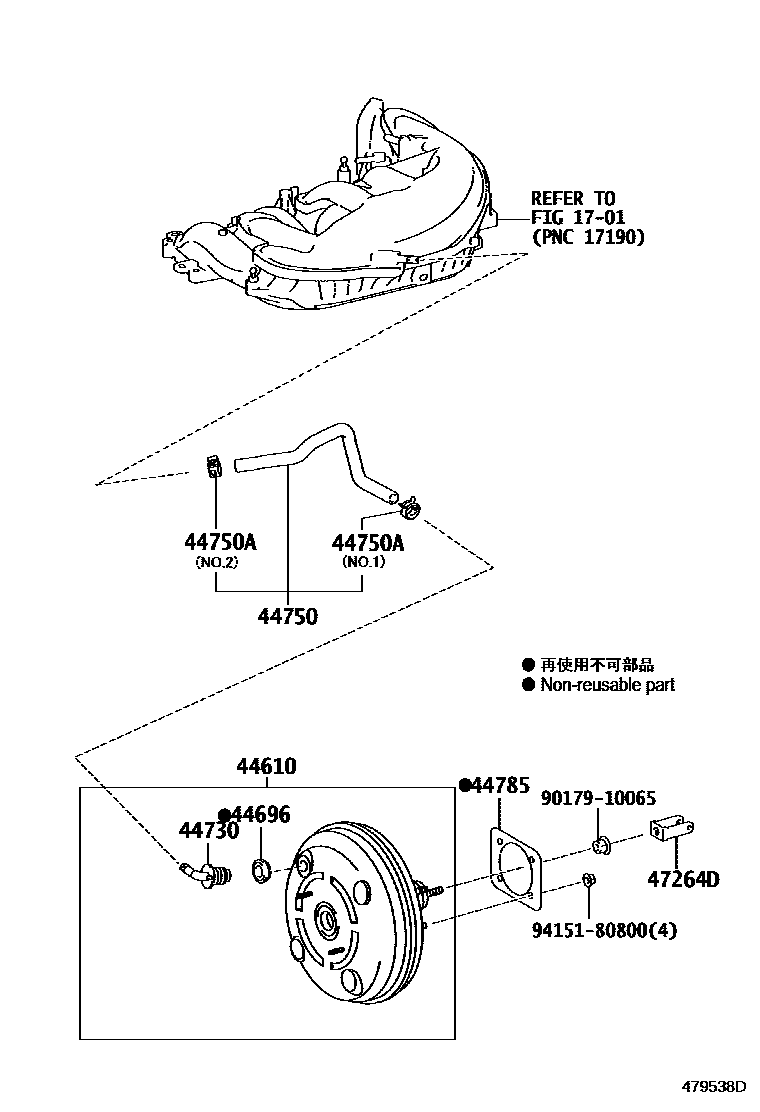

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

44610BOOSTER ASSY, BRAKE

main44610-24190i201409-201510

main44610-53450i201711-201810

main44610-53580i202009-202111

main44610-24200i201409-201510

TIRE & DISC WHEEL-235/40R19 8.0J ALL SEAZON TIRE(F-SPORT); TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

main44610-24250i201810-202009

FRONT WHEEL BRAKE-18INCHES DISC(HIGH FRICTION BRAKE PAD); FRONT WHEEL BRAKE-18INCHES DISC(ORANGE & HIGH FRICTION)

FRONT WHEEL BRAKE-18INCHES DISC(RED PAINTED)

44696GROMMET, CHECK VALVE

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070i201510-201810

main44730-20170i201409-201510

44750HOSE ASSY, VACUUM

main44750-53140i201409-201510

main44750-53220i201510-201810

44750ACLIP(FOR VACUUM HOSE ASSY)

main90467-16014×4i201711-201810

main96133-41500i201510-201711

NO.1:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040i201810-202111

main47264-63010i202111-202305

9017910065

9415180800

10 parts on this diagram · 3 diagrams in section
