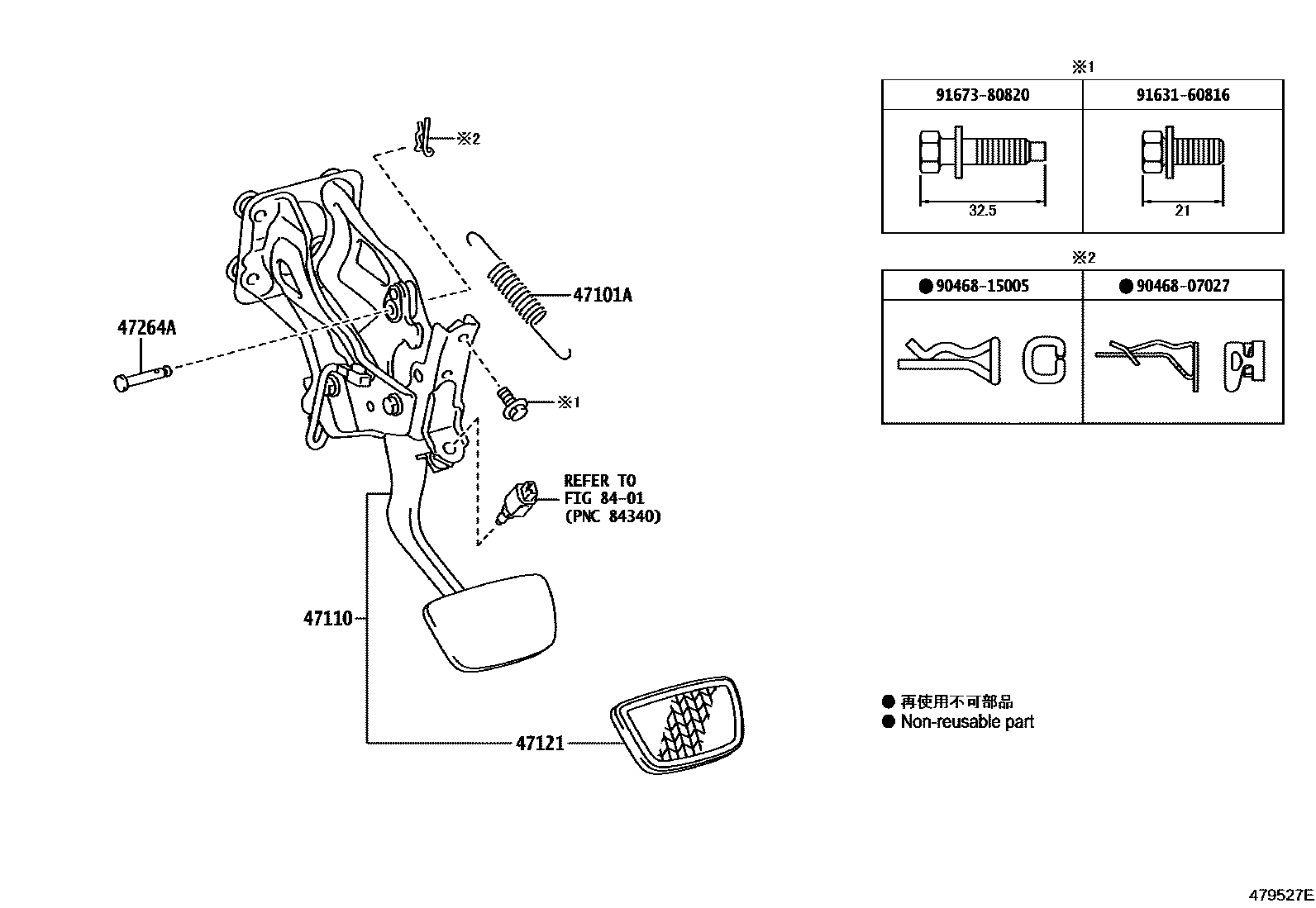

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iASC10,GSC1#202009-202111

main90507-13011iASC10,GSC1#201510-201810

main90507-15015iASC10,GSC1#202111

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24150supersedes 47110-24140iGSC10201409-201510

"F SPORT"

main47110-24170supersedes 47110-24160iGSC15201409-201510

"F SPORT"

main47110-24200supersedes 47110-24140iASC10,GSC10201810-202008

"F SPORT"

main47110-24210supersedes 47110-24160iGSC15,16201510-201810

"F SPORT"

main47110-24260supersedes 47110-24250iASC10,GSC10202009-202111

"F SPORT"

main47110-24280supersedes 47110-24270iGSC15,16202009-202111

"F SPORT"

main47110-53330supersedes 47110-53320iASC10,GSC10202111

"F SPORT"

main47110-53350supersedes 47110-53340iGSC15,16202111

"F SPORT"

47121PAD, BRAKE PEDAL

main47121-11020supersedes 47121-62010iASC10,GSC1#202009

"F SPORT"

main47121-24010supersedes 47121-30080iASC10,GSC1#201810-202009

"F SPORT"

main47121-30090supersedes 47121-30080iGSC1#201409-201510

"F SPORT"

47264APIN(FOR PUSH ROD)

main90249-06180iGSC1#201409-201510

main90249-08308iASC10,GSC1#202111

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046807027

main90468-07027

9046815005

main90468-15005

9163160816

main91631-60816

9167380820

main91673-80820

9 parts on this diagram · 1 diagram in section
