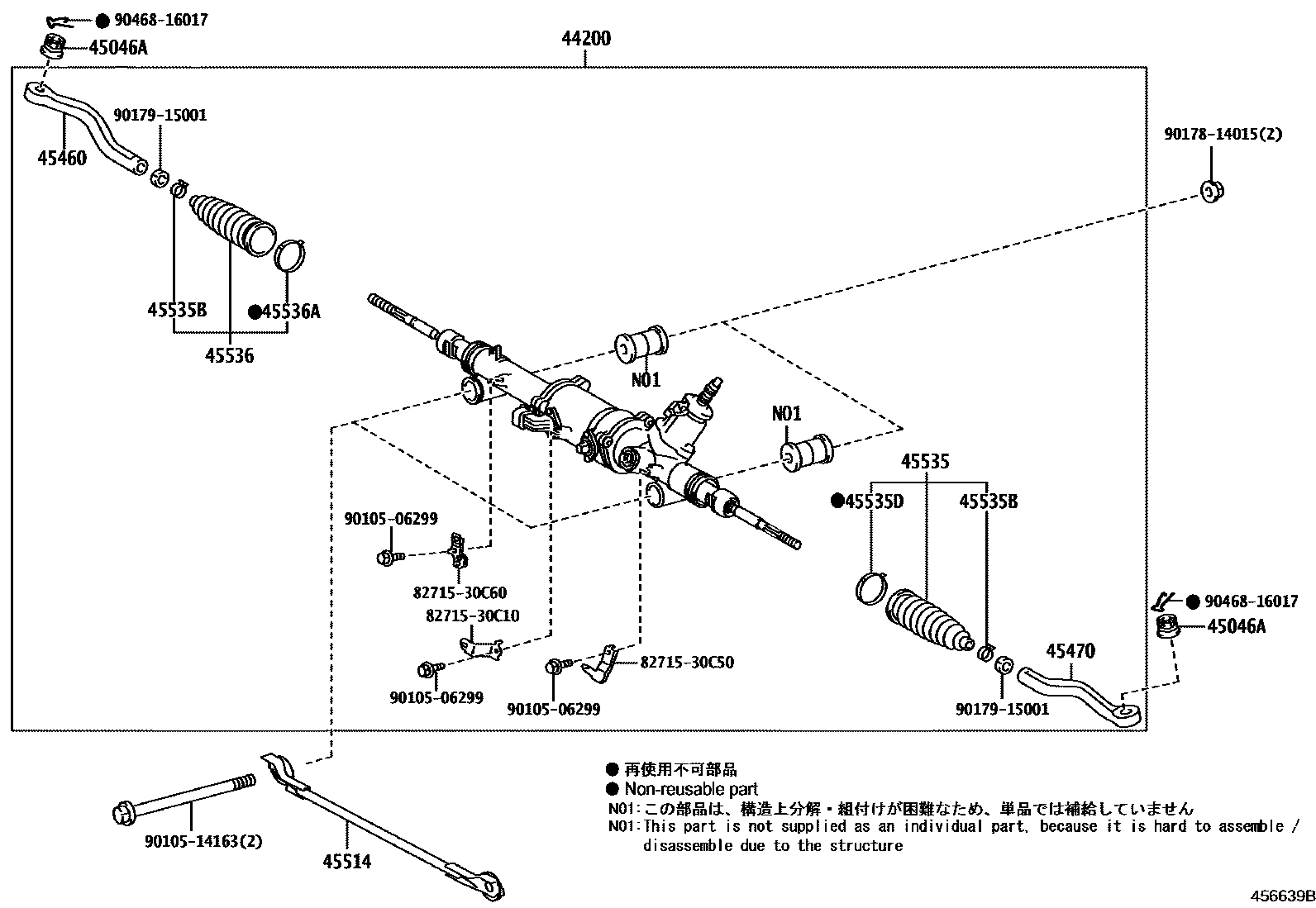

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-30740iGSC10201409-201510

main44200-30770iGSC15201409-201510

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGSC10201409-201510

main90178-12017×2iGSC15,16201510-201810

45460ROD ASSY, TIE, RH

main45460-39715iGSC15201409-201510

main45463-30190iASC10,GSC10201510-201810

45470ROD ASSY, TIE, LH

main45464-30090iASC10,GSC10201810

main45470-39255iGSC15,16201510-201810

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-30020iGSC10201409-201510

45535BOOT, STEERING RACK, NO.1

main45535-39055iGSC15201409-201510

main45535-59065iGSC10201409-201510

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iGSC1#201409-201510

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iASC10,GSC1#201510-201810

45536BOOT, STEERING RACK, NO.2

main45535-39055iGSC15201409-201510

main45535-59065iASC10,GSC10201510-201810

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iASC10,GSC1#201810

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C50BRACKET,WIRING HARNESS CLAMP

main82715-30C50

8271530C60BRACKET,WIRING HARNESS CLAMP

main82715-30C60

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9046816017

main90468-16017

18 parts on this diagram · 2 diagrams in section
