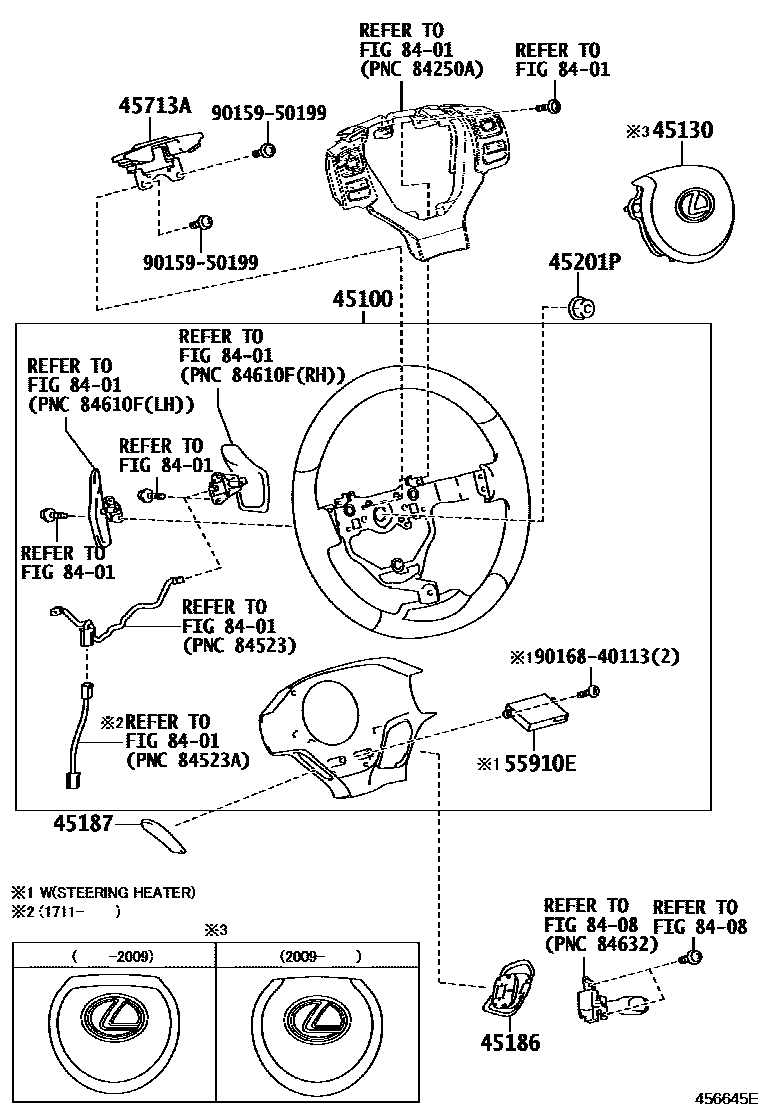

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-24400-C0i201802-201810

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD(BLACK),BLACK & ORANGE NO.85,TRIM2#

main45100-24410-C0i201802-201810

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LETHER & WOOD(BLACK), W(STEERING HEATER),BLACK& ORANGE NO.85,TRIM2#

main45100-53450-C0supersedes 45100-53440-C0i201409-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(STEERING HEATER),BLACK & LT.GRAY,TRIM1#,2#

main45100-53450-C5supersedes 45100-53440-C8i201409-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(STEERING HEATER),BLACK & BROWN,TRIM4#

main45100-53450-C8supersedes 45100-53440-21i201409-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(STEERING HEATER),BLACK & BROWN NO.044,TRIM5#

main45100-53451-C0supersedes 45100-53440-C0i201510-201711

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER),BLACK & LT.GRAY,TRIM1#,2#

main45100-53451-C5supersedes 45100-53440-C8i201510-201711

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER),BLACK & BROWN,TRIM4#

main45100-53451-C8supersedes 45100-53440-21i201503-201510

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(STEERING HEATER),BLACK & BROWN NO.044,TRIM5#

main45100-53460-24supersedes 45100-53440-21i201510-201711

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & BROWN NO.044,TRIM5#

main45100-53460-C0supersedes 45100-53440-C0i201510-201711

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & LT.GRAY,TRIM1#,2#

main45100-53460-C1i201409-201510

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & DK.ROSE,TRIM3#

main45100-53470-22supersedes 45100-53440-21i201409-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & BROWN NO.044,TRIM5#

main45100-53470-C0supersedes 45100-53440-C0i201409-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY,TRIM1#,2#

main45100-53470-C1i201409-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & DK.ROSE,TRIM3#

main45100-53471-22supersedes 45100-53440-21i201510-201711

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & BROWN NO.044,TRIM5#

main45100-53471-C0supersedes 45100-53440-C0i201510-201711

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY,TRIM1#,2#

main45100-53471-C1i201503-201510

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & DK.ROSE,TRIM3#

main45100-53491-C0supersedes 45100-53481-C0i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER),BLACK & LT.GRAY,TRIM1#,2#

main45100-53491-C1supersedes 45100-53481-C1i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & BROWNNO.044,TRIM4#,5#,REFER TO PNC 45130

main45100-53491-C2supersedes 45100-53481-C2i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER),BLACK & CHOCOLATE BROWN,TRIM4#

main45100-53491-C3supersedes 45100-53481-C5i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-53501-C1supersedes 45100-53481-C0i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & LT.GRAY,TRIM1#,2#

main45100-53501-C2i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & DK.ROSENO.59,TRIM3#

main45100-53501-C3supersedes 45100-53481-C1i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & BROWN NO.044,TRIM5#

main45100-53511-C1supersedes 45100-53481-C0i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY,TRIM1#,2#

main45100-53511-C2i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & DK.ROSE NO.59,TRIM3#

main45100-53511-C3supersedes 45100-53481-C1i201711-201810

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & BROWN NO.044,TRIM5#

main45100-53600-C0supersedes 45100-53590-C0i202009-202301

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & LT.GRAY,TRIM2#,REFER TO PNC 45130

main45100-53600-C1supersedes 45100-53590-C1i202009-202301

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-53600-C2supersedes 45100-53590-C2i202009-202301

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & BROWNNO.044,TRIM4#,5#,REFER TO PNC 45130

main45100-53600-C3supersedes 45100-53590-C3i202301

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM2#,3#,4#,REFER TO PNC 45130

main45100-53630-C0i202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-53630-C1i202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#,REFER TO PNC 45130

main45100-53630-C2i202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#,REFER TO PNC 45130

main45100-53640-C0i202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-53640-C1i202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY NO.831,TRIM0#,2#,REFER TO PNC 45130

main45100-53640-C2i202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & MUSTARD YELLOW,TRIM5#,REFER TO PNC 45130

main45100-53650-C2supersedes 45100-53590-C0i202009-202301

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD,BLACK & ECRU NO.307,TRIM2#

main45100-53660-C2supersedes 45100-53590-C0i202009-202301

3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD, WITH(STEERING HEATER),BLACK &ECRU NO.307,TRIM2#

main45100-76130-C0i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT,BLACK & RED NO.55,TRIM3#,REFER TO PNC45130

main45100-76130-C1i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT,BLACK & LT.GRAY NO.831,TRIM2#,REFER TO PNC 45130

main45100-76130-C4i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT,BLACK & CHOCOLATE BROWN,TRIM4#

main45100-76130-C5i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT,BLACK & BROWN NO.044,TRIM4#,5#,REFERTO PNC 45130

main45100-76140-C0i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-76140-C1i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER),BLACK & LT.GRAY NO.831,TRIM1#,2#

main45100-76140-C4i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER),BLACK & CHOCOLATE BROWN,TRIM4#

main45100-76140-C5i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK & BROWN NO.044,TRIM4#,5#,REFER TO PNC 45130

main45100-76160-C2i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM1#,2#

main45100-76160-C4i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-76160-C5i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED), W(PADDLE SWITCH),BLACK & BROWN NO.044,TRIM5#

main45100-76170-C2i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY NO.831,TRIM1#,2#

main45100-76170-C4i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & DK.ROSE NO.59,TRIM3#

main45100-76170-C5i201711-201810

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK &BROWN NO.044,TRIM5#

main45100-78050-C1i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#,REFER TO PNC 45130

main45100-78050-C2i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#,REFER TO PNC 45130

main45100-78050-C3i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-78060-C1i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & MUSTARD YELLOW,TRIM5#,REFER TO PNC 45130

main45100-78060-C2i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY NO.831,TRIM0#,2#,REFER TO PNC 45130

main45100-78060-C3i201810-202009

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-78070-C1i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#,REFER TO PNC 45130

main45100-78070-C2i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#,REFER TO PNC 45130

main45100-78070-C3supersedes 45100-53481-C5i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED), WITH(PADDLE SWITCH),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

main45100-78080-C1i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & MUSTARD YELLOW,TRIM5#,REFER TO PNC 45130

main45100-78080-C2i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & LT.GRAY NO.831,TRIM0#,2#,REFER TO PNC 45130

main45100-78080-C3supersedes 45100-53481-C5i201810-202009

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER),BLACK & RED NO.55,TRIM3#,REFER TO PNC 45130

45130BUTTON ASSY, HORN

main45130-53100-C0i201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

main45130-53120-C1i202009

BLACK,TRIM0#,2#,3#,4#,5#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53030-C0i201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53020-C0i201409-201510

BLACK,TRIM1#,2#,3#,4#,5#

45201PNUT, STEERING WHEEL SET

main90179-12071i201409-201510

45713ADAMPER, STEERING SHAKE

main45713-53010i201409-201501

main45713-53011i201502-201510

55910ECONTROL ASSY, STEERING WHEEL HEATER

main55910-30210i201810-202009

PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER); PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)

main55910-53010i201409-201502

STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER); STEERING WHEEL-LEATHER, W(STEERING HEATER)

main55910-53011i201503-201510

STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER); STEERING WHEEL-LEATHER, W(STEERING HEATER)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9016840113

main90168-40113

11 parts on this diagram · 2 diagrams in section
