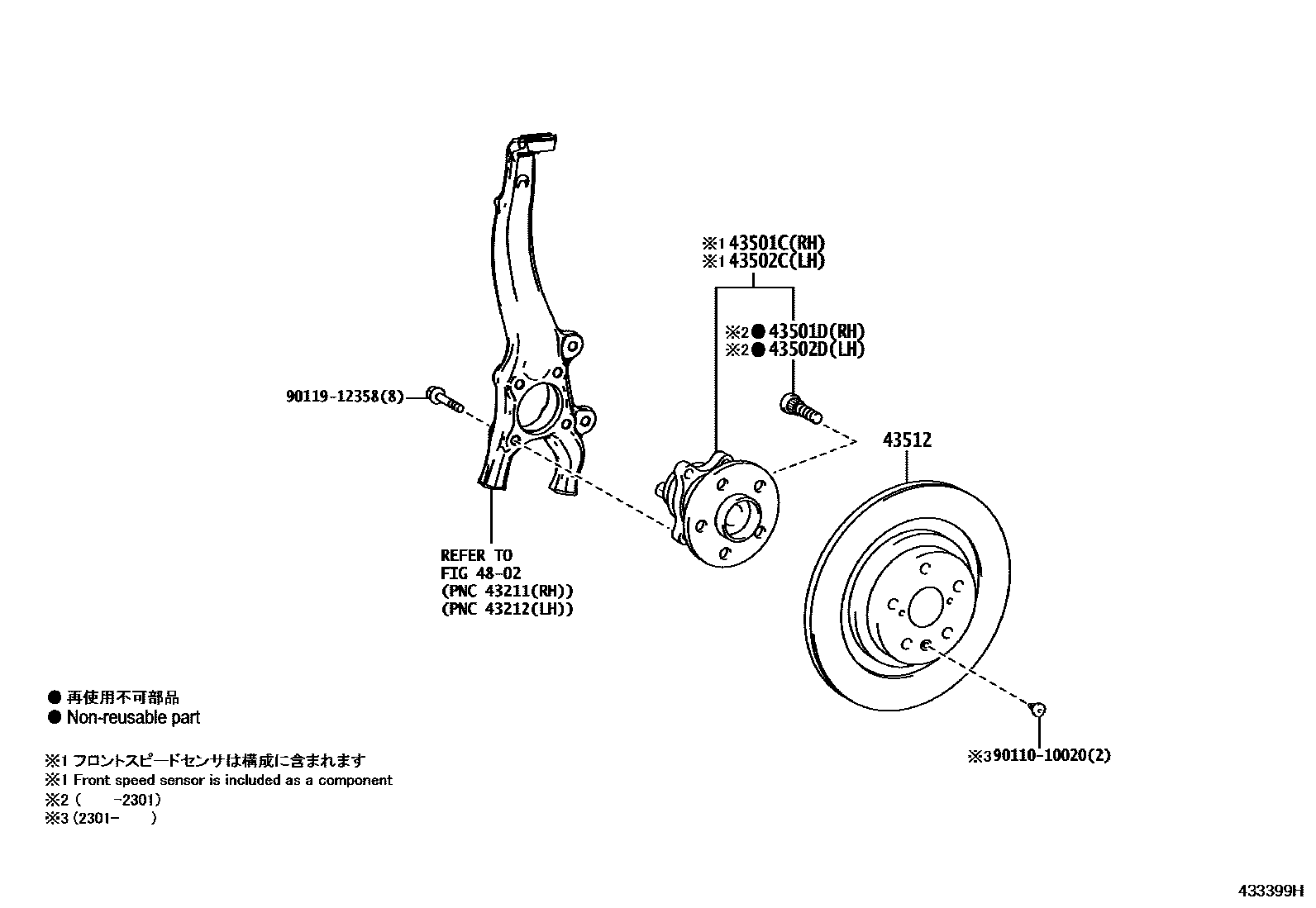

FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30030iGSC15201409-201507

main43550-30031iGSC15,16201508-202301

main43550-30050iGSC10201409-201504

main43550-30051iASC10,GSC10201505-202301

main43550-53020iASC10,GSC10202301

main43550-53030iGSC15,16202301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASC10,GSC1#201505-202301

main90942-02070iGSC10201409-201507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30050iGSC10201409-201504

main43550-30051iASC10,GSC10201505-202301

main43550-53020iASC10,GSC10202301

main43560-30030iGSC15201409-201507

main43560-30031iGSC15,16201508-202301

main43560-53020iGSC15,16202301

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iASC10,GSC1#201505-202301

main90942-02070iGSC15201409-201507

43512DISC, FRONT

main43512-30350iGSC1#201409-202008

RH

main43512-30351iASC10,GSC1#202009

RH

main43516-30040iASC10,GSC1#201409-202008

LH

main43516-30041iASC10,GSC1#202009

LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011010020

main90110-10020

9011912358

main90119-12358

8 parts on this diagram · 2 diagrams in section
