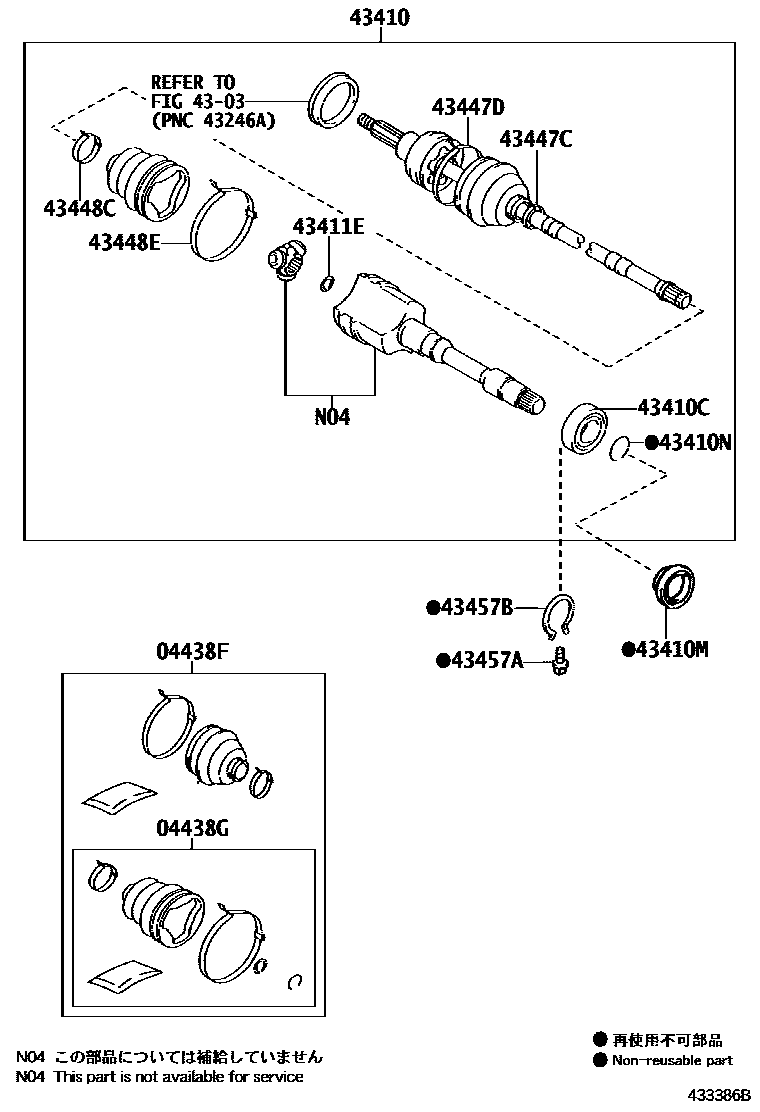

Toyota 131410 — FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

4303FRONT AXLE HUB

→ Go to FIG 43-03

43410SHAFT ASSY, FRONT DRIVE, RH

43410CBEARING (FOR FRONT DRIVE SHAFT)

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

14 parts on this diagram · 2 diagrams in section

FRONT DRIVE SHAFT for Toyota 131410

This section contains 25 genuine Toyota parts for the FRONT DRIVE SHAFT system of the Toyota 131410. Key components include: BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH, BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH, BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH, COVER, FRONT DRIVE SHAFT DUST, LH.
