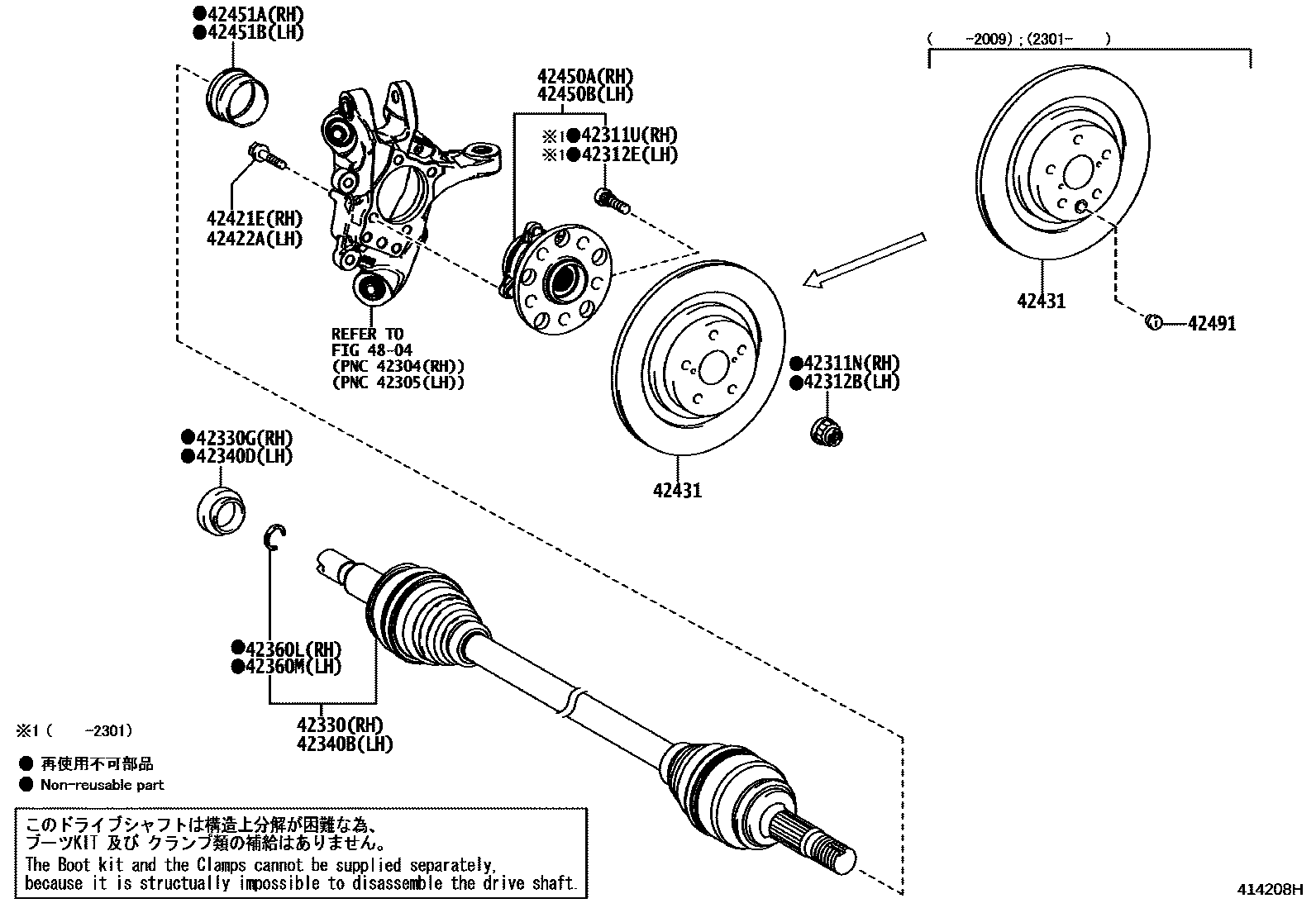

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001i201510-201810

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5i201810-202301

main90942-02070×5i201409-201504

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001i201510-201810

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5i201810-202301

main90942-02070×5i201409-201504

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30170i201409-201510

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47018i201409-201510

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30170i201409-201510

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47019i201409-201510

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003i201409-201510

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003i201409-201510

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009×4i201409-201510

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009×4i201810

42431DISC, REAR

main42431-30310×2i201510-201810

main42431-30340×2i202009-202212

main42431-53030×2i202301

main42431-30350×2i202009-202212

FRONT WHEEL BRAKE-18INCHES DISC; FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

main42431-53040×2i202301-202501

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30040i201409-201504

main42410-30041i201510-201810

main42410-53010i202301

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30040i201409-201504

main42410-30041i201505-201510

main42410-53010i202301

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040i201409-201510

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040i201409-201510

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2i201409-201510

main90110-10020×2i202301

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

19 parts on this diagram · 1 diagram in section
