1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31040i201409-201510

main22030-31100i201711-201810

main22030-36050i201510-201810

22271GASKET, THROTTLE BODY

main22271-31020i201409-201510

main22271-31040i201711-201810

main22271-36040i201510-201810

22273AGASKET, THROTTLE BODY, NO.2

main22271-36040i201810

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23100-39645i201409-201510

main23101-31090i201810

main23101-36080i201510-201810

main23101-36090i202404

23224DGASKET, FUEL PUMP SPACER

main23224-31020i201711-201810

main23224-31021i202112

main23224-36020i201510-201810

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×6i201711-201810

main90301-05013×6i201902

main90301-06018×6i201409-201510

main90301-07037×4i201510-201810

main90301-C0072×4i201908

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-31170-06×6i201711-201810

MARK 6

main23209-31170-07×6i201810

MARK 7

main23209-31170-08×6i201711-201810

MARK 8

main23209-36030-01×4i201810

MARK 1,REFER REPAIR MANUAL

main23209-36030-02×4i201810

MARK 2,REFER REPAIR MANUAL

main23209-36030-03×4i201810

MARK 3,REFER REPAIR MANUAL

main23209-39155-A0×6i201409-201510

MARK YELLOW

main23209-39155-B0×6i201409-201510

MARK BLACK

main23209-39155-C0×6i201510-201711

MARK BROWN

main23209-39155-D0×6i201409-201510

MARK GREEN

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-31070×6i201409-201510

main23209-39275×4i201810

main23209-39325×6i201810-202002

MARK=23250-31140

main23209-39435×6i202002

MARK=23250-31230

23255ASEAL, FUEL INJECTOR

main23255-31010×12i201409-201510

main23255-31020×4i201810-201901

main23255-31030×4i201902

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×6i201902

main23256-31010×4i201810-201901

main23256-74010×6i201510-201711

23256ARING, FUEL PIPE, NO.1

main23256-31010i201510-201810

PNC 23807=TYPE A

23257RING, FUEL INJECTOR BACK-UP, NO.2

main23257-47010i201810

main23257-74010×6i201510-201711

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×6i201409-201510

main23258-31020×6i201711-201810

main23258-36010×4i201510-201810

23258ARING, FUEL PIPE, NO.3

main23258-28011×3i201510-201711

main23258-31010i201510-201810

PNC 23807=TYPE A

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i201510-201810

main23291-31011×6i201409-201510

main23291-31030×6i201810

23291AINSULATOR, INJECTOR VIBRATION

main23291-23010×6i201711-201803

main23291-28020×6i201804-201810

main23291-31020×4i201510-201810

23470LIFTER ASSY, FUEL PUMP

main23470-25010i201711-201810

main23470-36020i201510-201810

23477GUIDE, FUEL PUMP LIFTER

main23477-31020i201711-201810

main23477-36020i201510-201810

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i201409-201510

main23695-31020×4i201510-201810

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31210i201711-201810

main23801-36031i201510-201809

PNC 23807=TYPE A

main23801-36110i201810

PNC 23807=TYPE B

23801YGASKET

main23893-47010i201510-201809

PNC 23807=TYPE A

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-36020i201810

TYPE B:REFER ILLUST.

main23800-36050i201510-201809

TYPE A:REFER ILLUST.

main23807-31062i201409-201411

main23807-31150i201510-201711

23809SUPPORT SUB-ASSY, FUEL PIPE

main23809-36010i201510-201809

PNC 23807=TYPE A

23814BPIPE, FUEL DELIVERY

main23800-36040i201510-201810

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010×2i201510-201810

23881BBRACKET, FUEL HOSE

main23881-36090i201510-201810

23891SPACER, FUEL DELIVERY

main23891-36030×2i201510-201810

23901TUBE SUB-ASSY, FUEL

main23901-31280i201810

NO.1

main23901-31310i201409-201510

main23901-31330i201711-201810

NO.2

main23901-36190i201810

23902TUBE SUB-ASSY, FUEL

main23902-31012i201510-201711

main23902-31090i201711-201810

main23902-36070i201510-201810

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77285NCLAMP, FUEL TUBE, NO.1

main77285-30380i201510-201810

77286GCLAMP, FUEL TUBE, NO.2

main77281-78020i201510-201810

1770347010CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER

main17703-47010

9011006022

main90110-06022

9012608062

main90126-08062

9030105011

main90301-05011

9030105013

main90301-05013

9030131016

main90301-31016

9030131017

main90301-31017

9052014004

main90520-14004

9155180665

main91551-80665

9155180865

main91551-80865

91551G0835

main91551-G0835

91551L0830

main91551-L0830

9167180614

main91671-80614

9415120841

main94151-20841

9672319010

main96723-19010

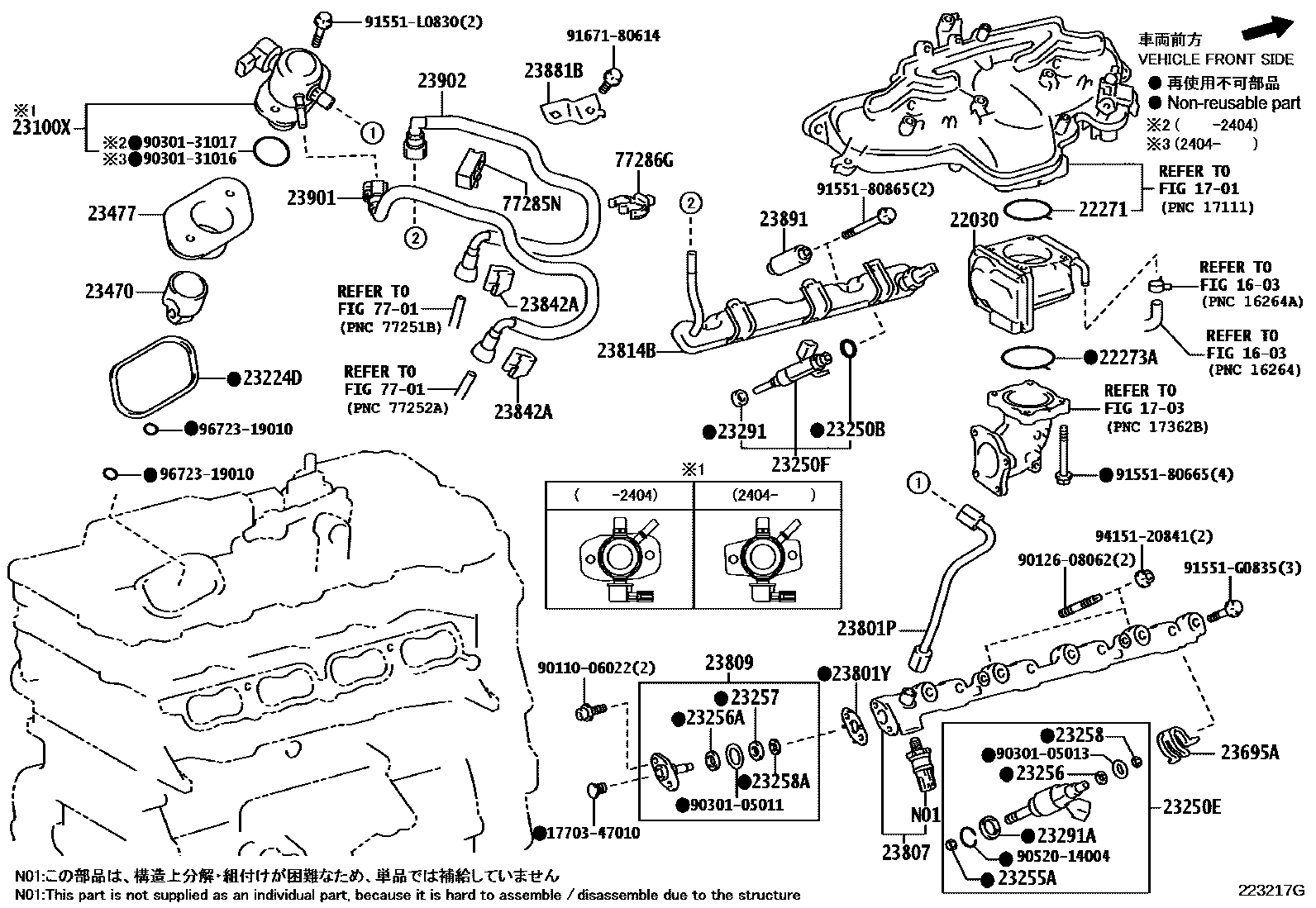

FUEL INJECTION SYSTEM
