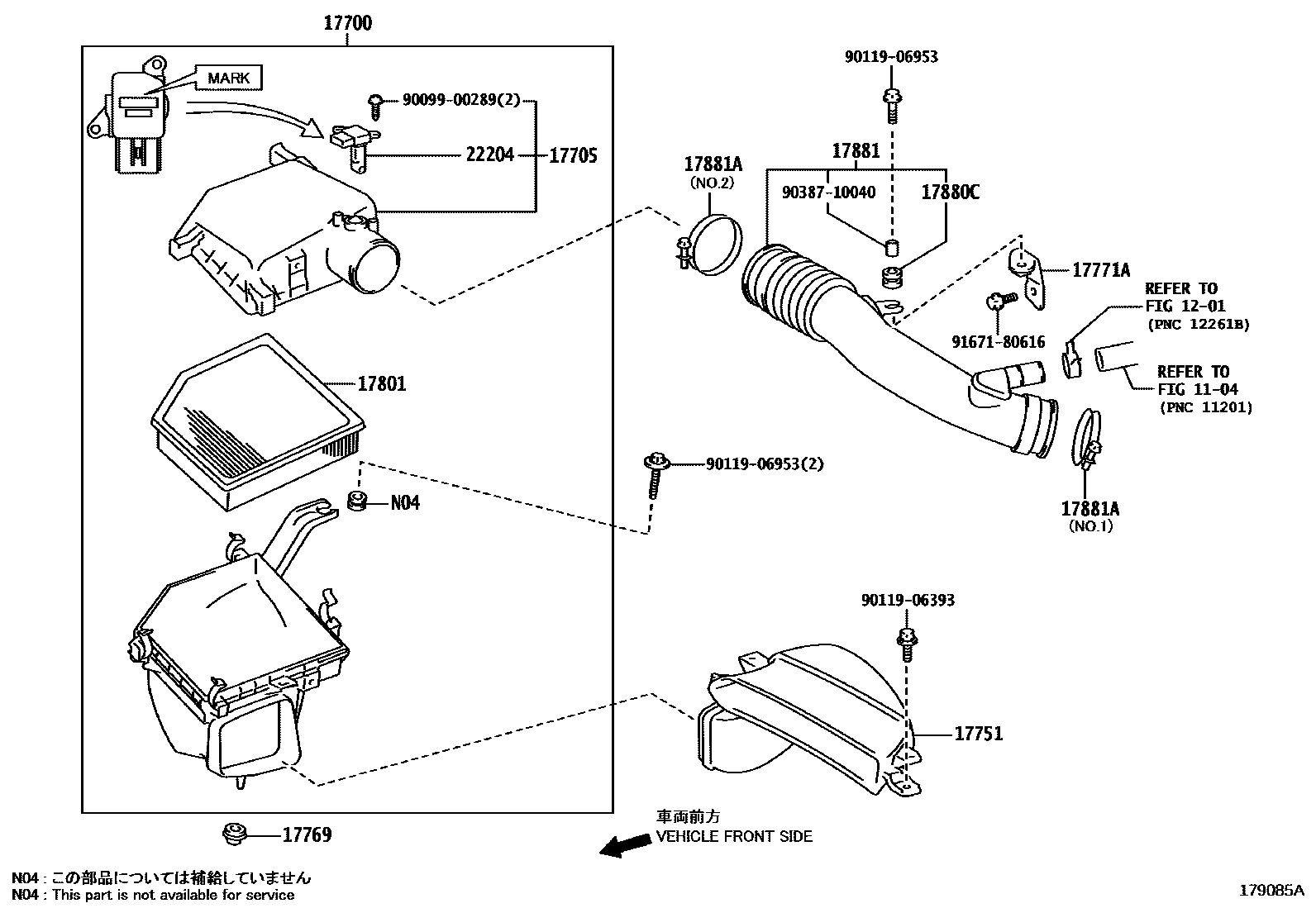

AIR CLEANER

0001 1AIR CLEANER SIDE 0002 1INTERCOOLER SIDE 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-31760i2GRF..GSC1#201409-201510

main17700-31A20i2GRF..GSC1#202005

main17700-36410i8ARFTS..ASC10202005

main17700-36420i8ARFTS..ASC10201510-201810

17705CAP SUB-ASSY, AIR CLEANER

main17705-31280i2GRF..GSC1#201409-201510

main17705-31300i2GRF..GSC1#202005

main17705-36180i8ARFTS..ASC10202005

main17705-36190i8ARFTS..ASC10201810-202005

17751INLET, AIR CLEANER, NO.1

main17751-31350i2GRF..GSC1#; 8ARFTS..ASC10201510-201810

17769SUPPORT, AIR CLEANER

main17769-31030i2GRF..GSC1#201409-201510

17771ABRACKET, AIR CLEANER

main17771-36090i8ARFTS..ASC10201510-201810

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31170i2GRF..GSC1#; 8ARFTS..ASC10201810

17880CGROMMET(FOR AIR CLEANER HOSE)

main90480-16041i8ARFTS..ASC10201810

17881HOSE, AIR CLEANER, NO.1

main17880-36170i8ARFTS..ASC10201810

main17881-31280supersedes 17881-31350i2GRF..GSC10,15; 2GRF..GSC16201810

"F SPORT"

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10670i8ARFTS..ASC10201810

NO.1:REFER ILLUST.

main96111-10850i2GRF..GSC1#; 8ARFTS..ASC10201510-201810

NO.2:REFER ILLUST.

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2GRF..GSC1#201409-201510

MARK 22204-0T040

main22204-0V010i2GRF..GSC1#; 8ARFTS..ASC10201510-201810

MARK 22204-0V010

main22204-0V020i2GRF..GSC1#; 8ARFTS..ASC10201810

MARK 22204-0V020

main22204-28010i2GRF..GSC1#; 8ARFTS..ASC10201510-201810

MARK 22204-28010

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

9038710040

main90387-10040

9167180616

main91671-80616

17 parts on this diagram · 3 diagrams in section
