Toyota 131410 — MOUNTING

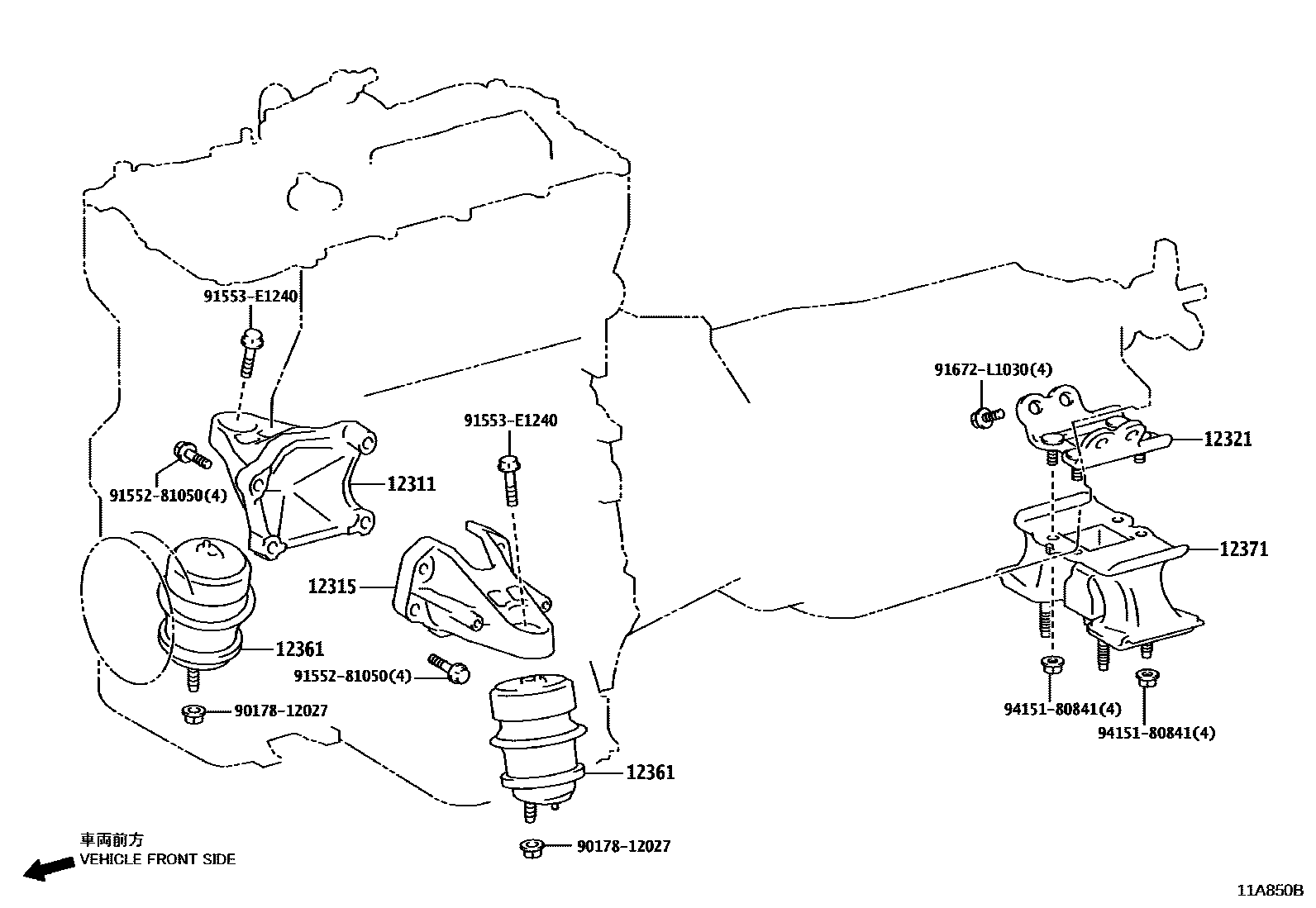

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

12361INSULATOR, ENGINE MOUNTING, FRONT

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

9017812027

9155281050

91553E1240

91672L1030

9415180841

10 parts on this diagram · 5 diagrams in section

MOUNTING for Toyota 131410

This section contains 17 genuine Toyota parts for the MOUNTING system of the Toyota 131410. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
