ENGINE OVERHAUL GASKET KIT

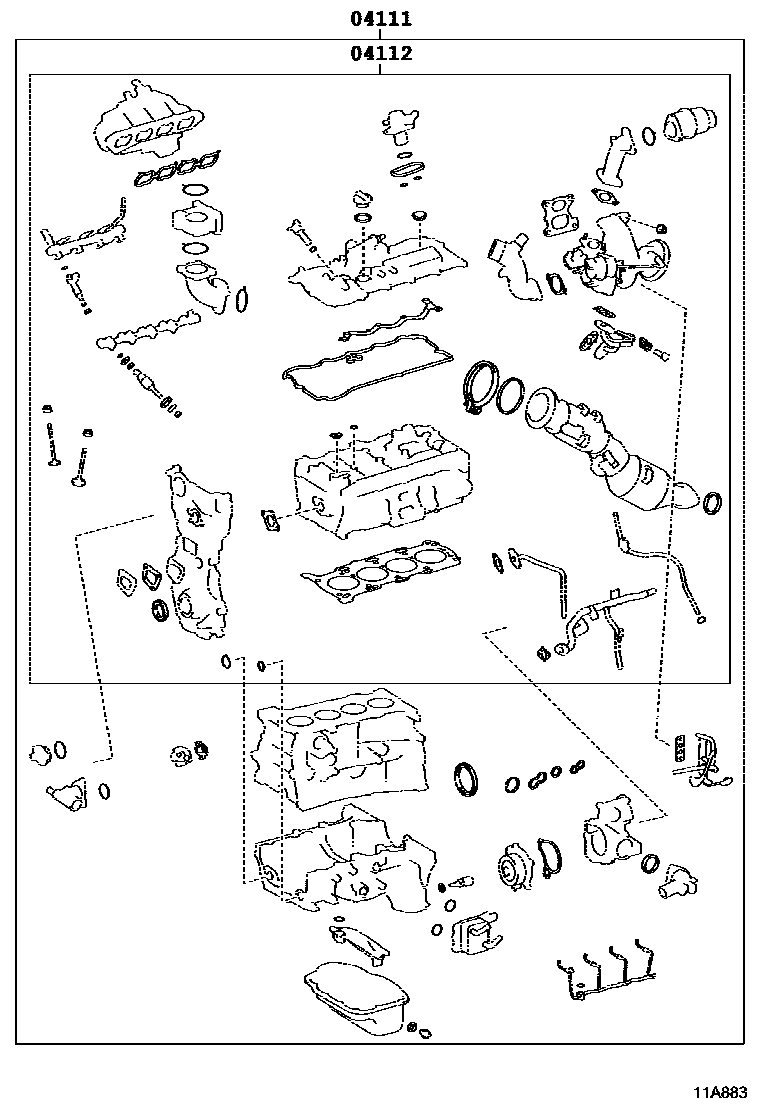

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31941i201409-201503
sub04111-31942
main04111-31942i201503-201505
main04111-31943i201505-201711
main04111-31C31i201711-202107
sub04111-31C32
main04111-31C32i202107-202112
sub04111-31C33
main04111-31C33i202112
main04111-31C41i201711-202107
sub04111-31C42
main04111-31C42i202107-202112
sub04111-31C43
main04111-31C43i202112
main04111-36290i201510-201710
sub04111-36291
main04111-36291i201710-202004
main04111-36400i202004
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31681i201409-201711
main04112-31881i201711-202112
sub04112-31882
main04112-31882i202112
main04112-36240i201510-201710
sub04112-36241
main04112-36241i201710-202004
main04112-36350i202004

2 parts on this diagram · 7 diagrams in section
