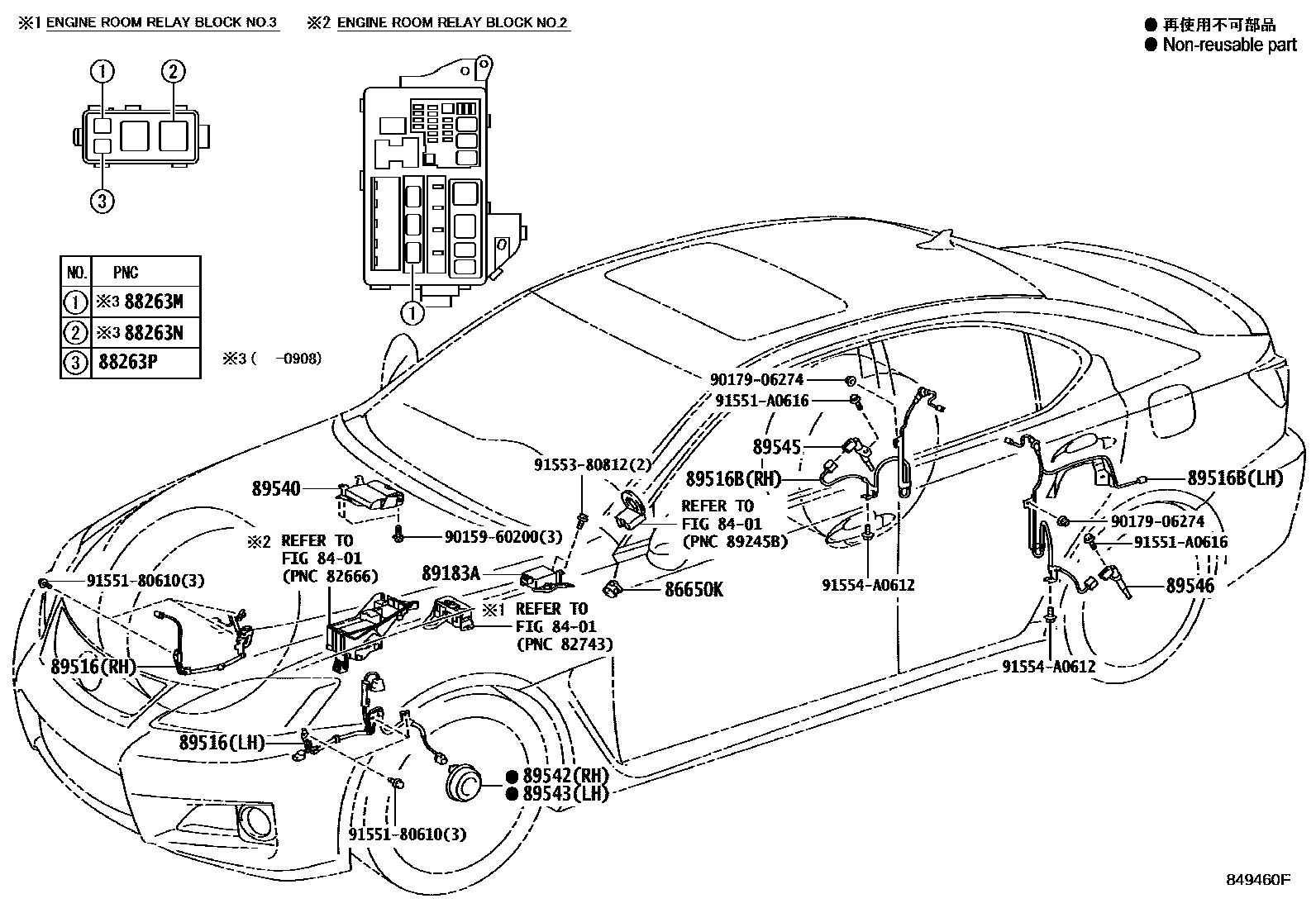

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-50010iUSE20200712-201008

88263MRELAY, ABS SOLENOID

main88263-32070×2iUSE20200712-200908

88263NRELAY, ABS MOTOR

main88263-21010iUSE20200712-200908

88263PRELAY, STOP LAMP CONTROL

main90987-04004iUSE20200712-201408

89183ASENSOR, YAWRATE

main89180-22020iUSE20200712-200908

main89180-53030iUSE20200908

89516WIRE, SKID CONTROL SENSOR

main89516-30020iUSE20200712-201203

RH

main89516-30060iUSE20200712

LH

main89516-30150iUSE20201204-201302

RH

main89516-53060iUSE20201303

RH

89516BWIRE, SKID CONTROL SENSOR

main89516-22020iUSE20200712-201408

RH

main89516-22040iUSE20200712-201408

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-53360iUSE20200712-200808

main89540-53361iUSE20200808-200908

89542SENSOR, SPEED, FRONT RH

main89542-30260iUSE20200712-201408

89543SENSOR, SPEED, FRONT LH

main89543-30260iUSE20200712-201408

89545SENSOR, SPEED, REAR RH

main89545-30070iUSE20200712-201408

89546SENSOR, SPEED, REAR LH

main89546-30070iUSE20200712-201408

9015960200

main90159-60200

9017906274

main90179-06274

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

19 parts on this diagram · 1 diagram in section
