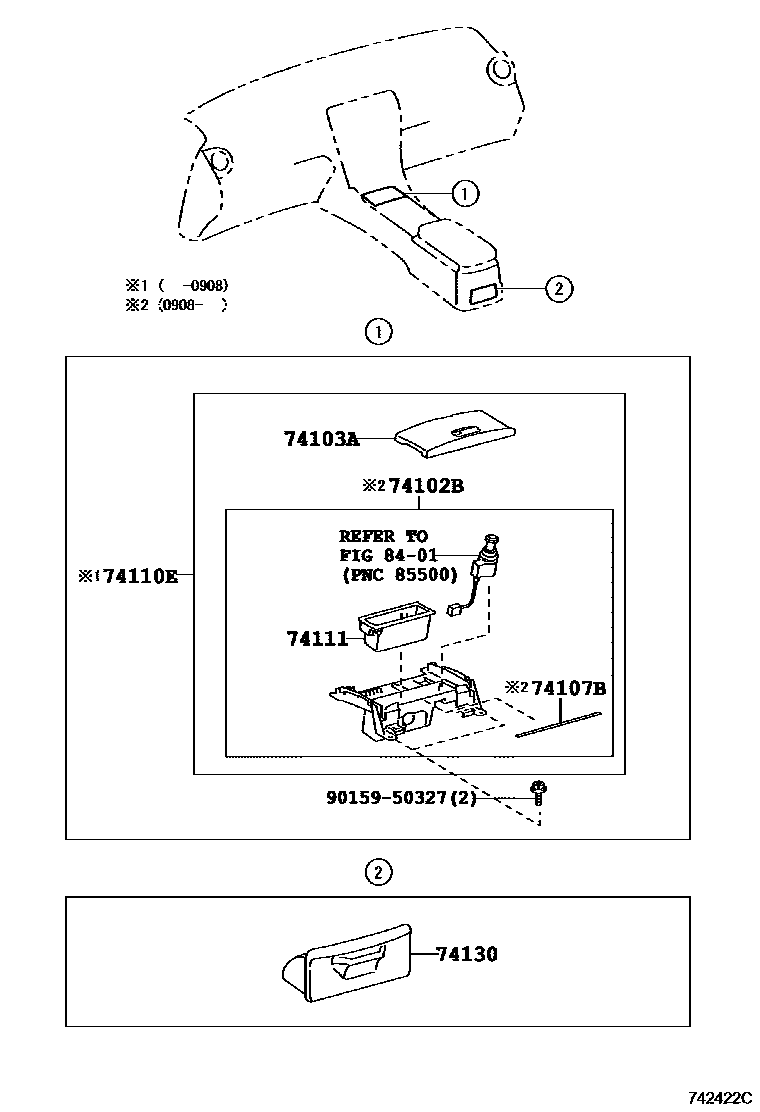

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-53020iUSE20200908-201008

main74102-53030iUSE20201208-201408

ASH TRAY-WITH(FRONT & REAR)

74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE

main74103-53040-A0iUSE20200712-201108

WHITE,TRIM2#

main74103-53060-B0iUSE20201108-201408

DARK SILVER,TRIM2#

main74103-53050-A0iUSE20200712-201008

INTERIOR PACKAGE,WHITE,TRIM2#

74107BSEAL, ASH RECEPTACLE DOOR

main74133-30140iUSE20200908-201008

74110ERECEPTACLE ASSY, FRONT ASH

main74110-53050-A0supersedes 74110-53040-A0iUSE20200712-200908

INTERIOR PACKAGE,WHITE,TRIM2#

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iUSE20200712-201008

74130RECEPTACLE ASSY, REAR ASH

main74130-53010-C0iUSE20200712-201008

BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950327

main90159-50327

8 parts on this diagram · 1 diagram in section
